Remove/install front axle level sensors - AR82.10-P-0004RK
MODEL 231
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100TX | |
| 2 | Lift vehicle on vehicle lift | AR00.60-P-1000TX | |

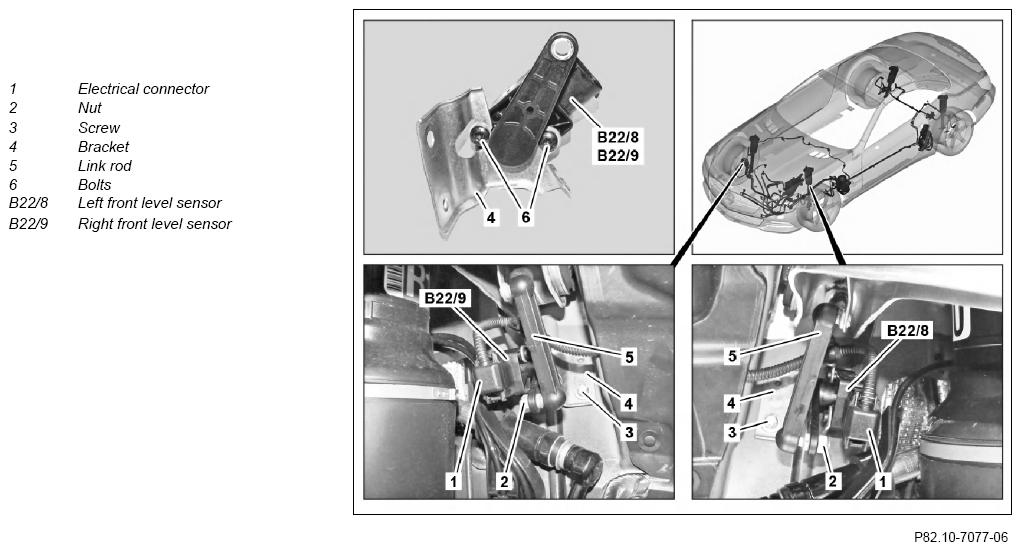

| 3 | Disconnect electrical connector (1) at left front level sensor (B22/8) or right front level sensor (B22/9) | ||
| 4 | Unscrew nut (2) of link rod (5) from left front level sensor (B22/8) or right front level sensor (B22/9) and pry off link rod (5) out of left front level sensor (B22/8) or right front level sensor (B22/9) | *BA82.10-P-1002-01A | |
| 5 | Remove screw/bolt (3) at body and remove left front level sensor (B22/8) or right front level sensor (B22/9) | *BA82.10-P-1011-01A | |
| 6 | Remove screws/bolts (6) and remove left front level sensor (B22/8) or right front level sensor (B22/9) from bracket (4) | When replacing left front level sensor (B22/8) or right front level sensor (B22/9). |
*BA82.10-P-1003-01A |
| 7 | Install in the reverse order | ||
| 8 |
Check headlamp adjustment and correct if necessary | When replacing left front level sensor (B22/8) or right front level sensor (B22/9). | AP82.10-P-8260R |
| 9 | Calibrate vehicle level (level calibration) | After replacing left front level sensor (B22/8) or right front level sensor (B22/9). | AR40.20-P-0301RK |
FRONT AXLE LEVEL SENSOR
| Number | Designation | MODEL 231 | |
|---|---|---|---|
| BA82.10-P-1002-01A | Nut, link rod to level sensor | Nm | 8 |
FRONT AXLE LEVEL SENSOR
| Number | Designation | MODEL 231 | |
|---|---|---|---|
| BA82.10-P-1003-01A | Bolt/nut, level sensor to retaining plate | Nm | 4 |
FRONT AXLE LEVEL SENSOR
| Number | Designation | MODEL 231 | |
|---|---|---|---|
| BA82.10-P-1011-01A | Screw/bolt, level sensor retaining plate to body | Nm | 4 |
