Remove/install carrier plate for Audio components - AR82.60-P-7601RK

MODEL 231

Shown with CODE 536 (SIRIUS satellite radio) and CODE 518 (Media Interface)

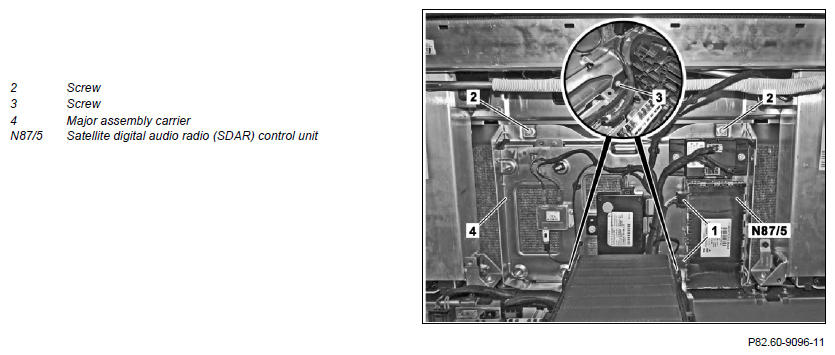

Fig 1: Audio Carrier Plate Remove/Install Components - Shown With Code 536

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove rear luggage box		AR68.30-P-7440RK
2	Remove global positioning system antenna splitter (A2/5)	With CODE 348 (Emergency call/assist system)	AR82.70-P-8953RK
3	Remove emergency call system control unit (N123/4)	With CODE 348 (Emergency call/assist system)	AR82.95-P-0005RK
4	Remove media interface control unit (N125/1)	With CODE 518 (Media Interface) The stowage compartment in the rear center console does not need to be removed.	AR82.60-P-1030RK
5.1	Remove Satellite Digital Audio Radio (SDAR) control unit (N87/5)	With CODE 536 (SIRIUS satellite radio)	AR82.60-P-7545RK
5.2	Remove screws/bolts (2, 3) at major assembly carrier (4)	Except CODE 536 (SIRIUS satellite radio)
6	Remove major assembly carrier (4)
7	Install in the reverse order
