Remove/install antenna on trunk lid - AR82.62-P-0001RK

MODEL 231

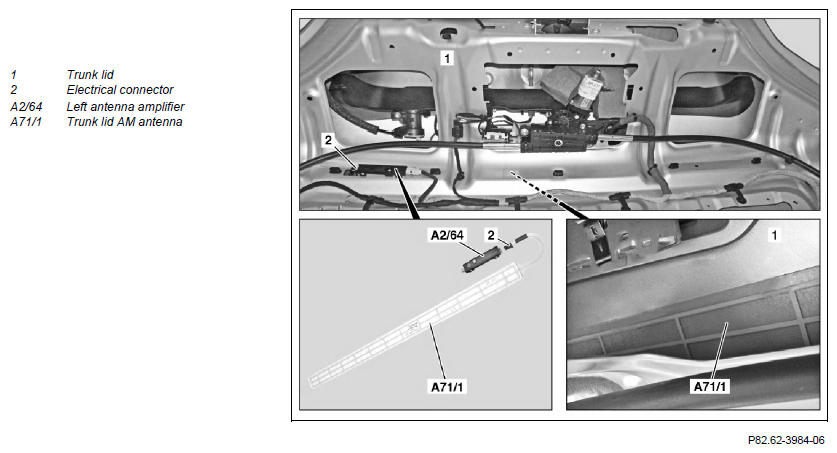

Fig 1: Antenna On Trunk Lid Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove
1	Remove paneling from trunk lid (1)		AR68.30-P-8150RK
2	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button (S2/3) only with CODE 889 (KEYLESS-GO).
3	Disconnect electrical connector (2) from left antenna amplifier (A2/64)	Trunk lid AM antenna (A71/1) is not removed. The new trunk lid AM antenna (A71/1) is glued on the old one.
	Clean
4	Clean surface of damaged trunk lid AM antenna (A71/1)	The bonding surface must be free of dust and grease. Observe flash-off time for cleaning agent.
		Cleaner	*BR00.45-Z-1025-04A
	Install
5	Glue new trunk lid AM antenna (A71/1) on damaged trunk lid AM antenna (A71/1)
6	Create electrical connection (2) at left antenna amplifier (A2/64)
7	Install paneling on trunk lid (1)		AR68.30-P-8150RK

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
