Remove/install TV antenna amplifier - AR82.62-P-8302RK

MODEL 231

with CODE 863 (Digital/analog TV tuner)

MODEL 231

with CODE 865 (TV tuner)

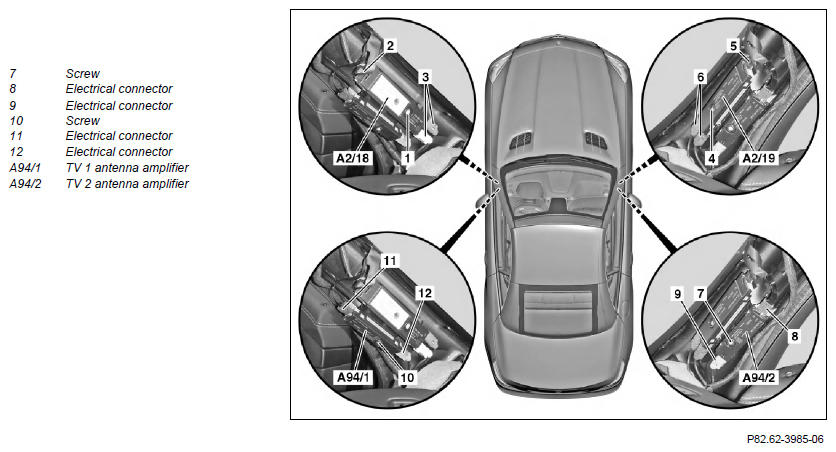

Fig 1: TV Antenna Amplifier Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
2	Remove paneling from left A-pillar		AR68.30-P-4050RK
3	Remove screw (10)
4	Disconnect electrical connector (11) from TV 1 antenna amplifier (A94/1)
5	TV 1 antenna amplifier (A94/1)	To do so, release and disconnect electrical connector (12).
6	Remove paneling on right A-pillar		AR68.30-P-4050RK
7	Remove screw (7)
8	Disconnect electrical connector (8) from TV 2 antenna amplifier (A94/2)
9	TV 2 antenna amplifier (A94/2)	To do so, release and disconnect electrical connector (9).
10	Install in the reverse order
11	Perform function test
