Remove/install AM antenna amplifier - AR82.62-P-8344RK

MODEL 231

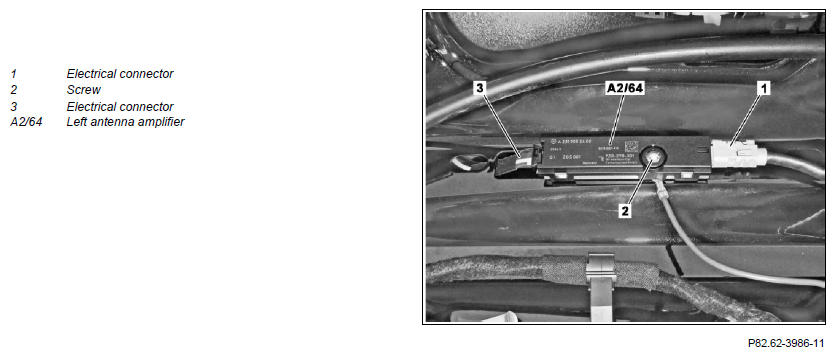

Fig 1: AM Antenna Amplifier Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

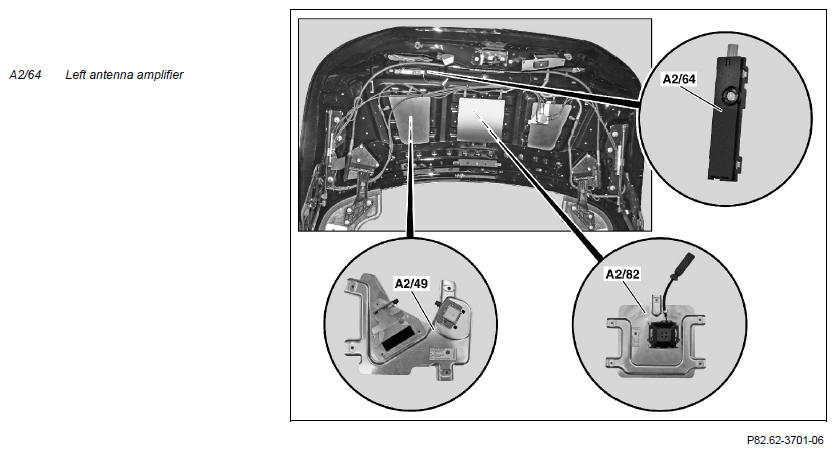

Fig 2: AM Antenna Amplifier Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of the mechanism when the components are moving.	AS00.00-Z-0009-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on sensor system for trunk lid opening/closing		AH80.61-P-0001-01A
	Remove/install
1	Remove paneling from trunk lid		AR68.30-P-8150RK
2	Switch off ignition and remove transmitter key (A8/1) or KEYLESS-GO start/stop button (S2/3) from electronic ignition lock control unit (N73)	KEYLESS-GO start/stop button (S2/3) only with CODE 889 (KEYLESS-GO).
3	Release and disconnect electrical connector (1) from left antenna amplifier (A2/64)
4	Disconnect electrical connector (3) from left antenna amplifier (A2/64)
5	Remove left antenna amplifier (A2/64)	Remove bolt (2) to do this.
6	Install in the reverse order
7	Perform function test
