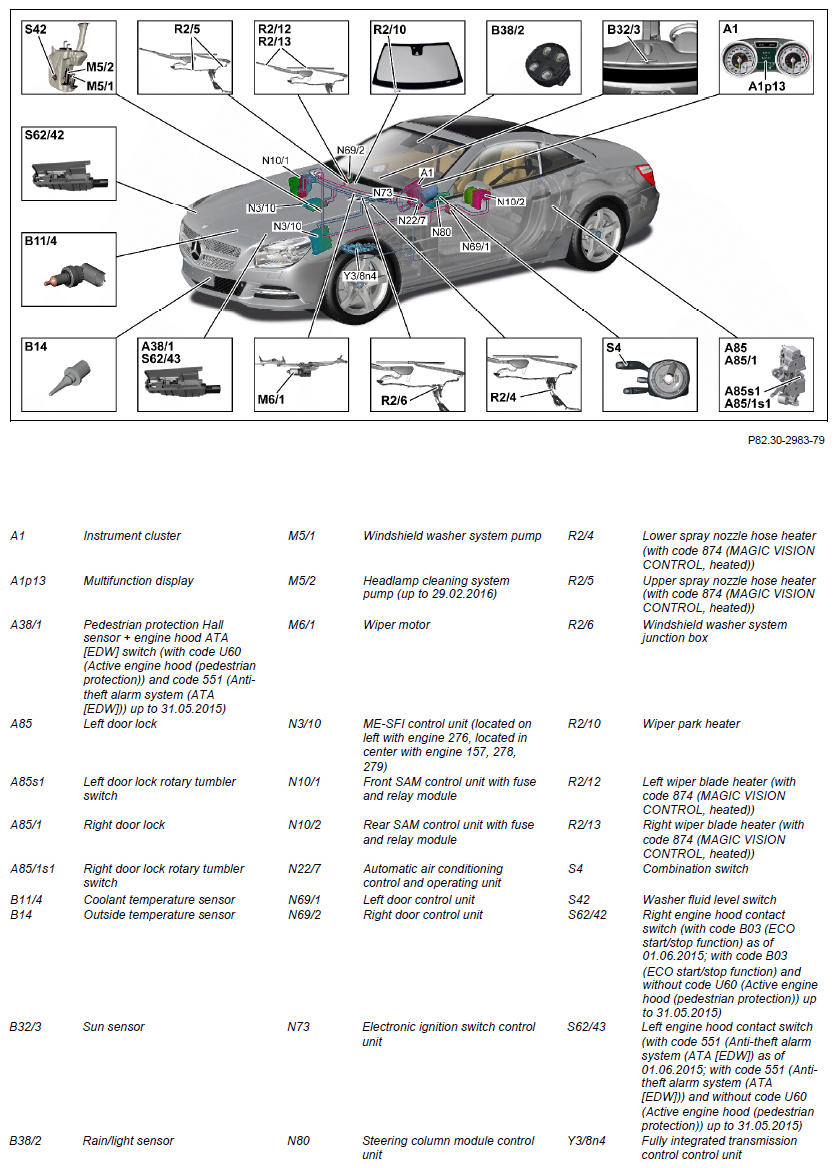

Overview of system components for windshield wiper system - GF82.30-P-9996RK
MODEL 231
Shown on model 231 up to 29.02.2016
| Component description for instrument cluster | A1 | GF54.30-P-6000RK | |
| Component description for ME-SFI (ME) control unit | Model 231.4 with engine 276.9 N3/10 |
GF07.61-P-6000MME | |
| Model 231.4 with engine 157.9 Model 231.4 with engine 278.9 N3/10 |
GF07.61-P-6000MMF | ||
| Model 231.4 with engine 276.8 N3/10 |
GF07.61-P-6000MMZ | ||
| Model 231.4 with engine 279.9 N3/10 |
GF07.61-P-6000MUA | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RK | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RK | |
| Component description for climate control control and operating unit | N22/7 | GF83.40-P-3002RK | |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RK | |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RK | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RK | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RK | |
| Component description for fully integrated transmission control unit | Model 231 with transmission 722.9 (except 722.931) Y38n4 |
GF27.60-P-5165AHP | |
| Model 231.4 with transmission 722.931 Y38n4 |
GF27.60-P-5165AHJ | ||
| Model 231 with transmission 725.0 Y38n4 |
GF27.60-P-5165ANM | ||
| Table of contents for function description of windshield wiper system | GF82.30-Q-0997RK |
