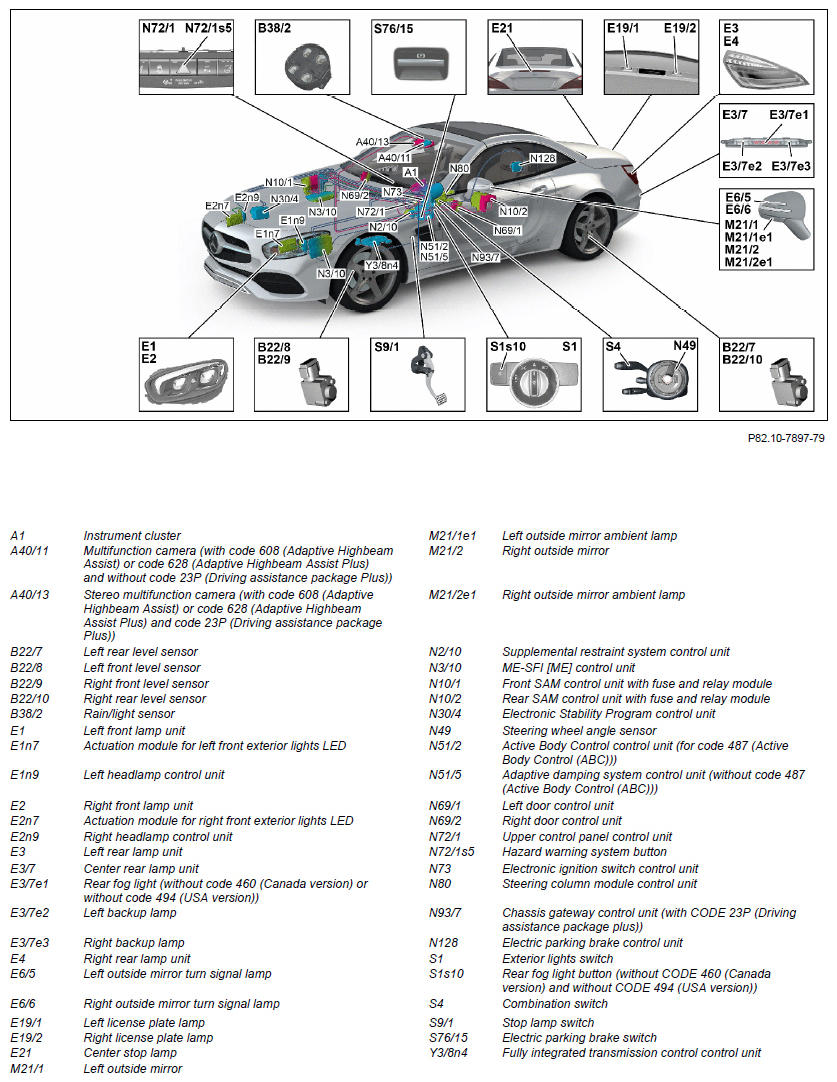

Overview of exterior lights system components - GF82.10-P-9998RKM

MODEL 231 as of model year 2017

Shown on model 231

Fig 1: Overview Of Exterior Lights System Components - Shown On Model 231

Courtesy of MERCEDES-BENZ USA

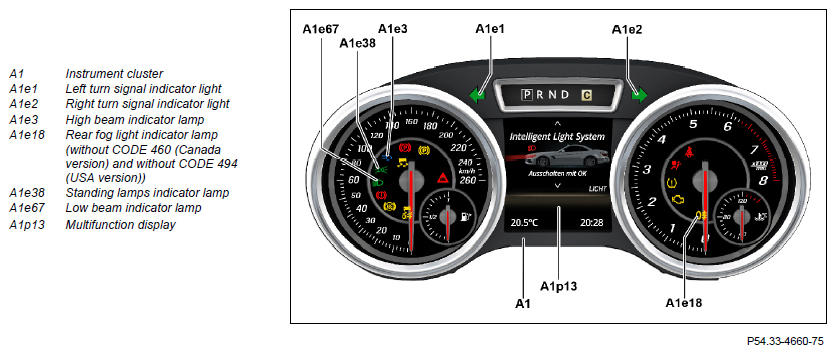

Detailed view of display in instrument cluster

Fig 2: Overview Of Instrument Cluster Components

Courtesy of MERCEDES-BENZ USA

The following components in the instrument cluster transmitting functional feedback are not shown here:

Warning buzzer (A1h1)
Function check of turn signal lights, acoustic (A1h2)

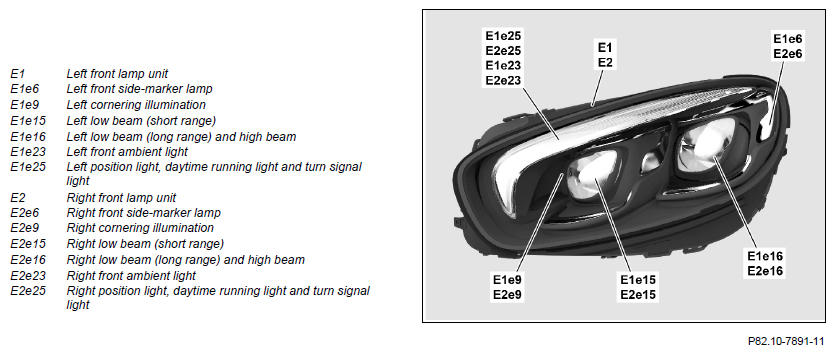

Detailed view of front lamp unit

Fig 3: Overview Of Front Lamp Unit Components

Courtesy of MERCEDES-BENZ USA

The following components in the front lamp units are not shown here:

Left headlamp range adjustment actuator motor (E1m1)
Left active curve illumination actuator motor (E1m2)
Left light distribution actuator motor (E1m3)
Fan motor 1 for left front lamp unit (E1 m4)
Fan motor 2 for left front lamp unit (E1 m5)
Right headlamp range adjustment actuator motor (E2m1)
Right active curve illumination actuator motor (E2m2)
Right light distribution actuator motor (E2m3)
Fan motor 1 for right front lamp unit (E2m4)
Fan motor 2 for right front lamp unit (E2m5)

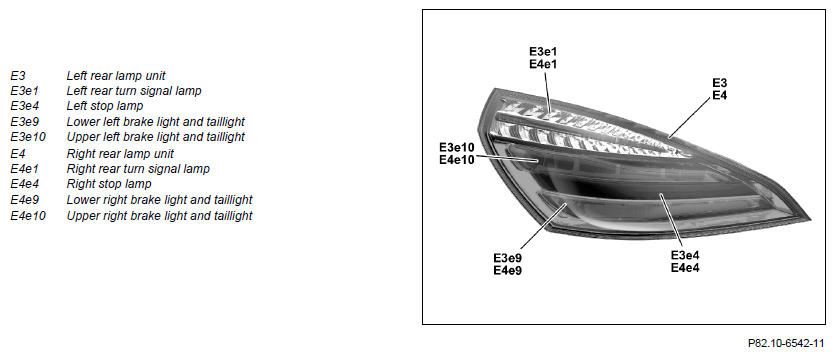

Detailed view of rear lamp unit

Fig 4: Overview Of Rear Lamp Unit Components

Courtesy of MERCEDES-BENZ USA

Component description for instrument cluster	A1	GF54.30-P-6000RK
Component description for multifunction camera	Model 231 as of model year 2017 with code 238 (Active lane keeping Assist) Model 231 as of model year 2017 with code 513 (Traffic Sign Assist) Model 231 as of model year 2017 with code 608 (Adaptive Highbeam Assist) Model 231 as of model year 2017 with code 628 (Adaptive Highbeam Assist Plus) A40/11, A40/13	GF54.21-P-3300RK
Actuation module, LED exterior lighting, front, component description	Model 231 as of model year 2017 with code 640 (High-performance LED) Model 231 as of model year 2017 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 231 as of model year 2017 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n7, E2n7	GF82.10-P-2160RKM
Headlamp control unit, component description	Model 231 as of model year 2017 with code 640 (High-performance LED) Model 231 as of model year 2017 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 231 as of model year 2017 with code 642 (Headlamps, LED, dynamic, right-side traffic) E1n9, E2n9	GF82.10-P-2020RKM
Supplemental restraint system control unit, component description	N2/10	GF91.60-P-4080RK
Component description for ME-SFI (ME) control unit	Model 231.4 with engine 157.9 as of model year 2017 Model 231.4 with engine 278.9 as of model year 2017 N3/10	GF07.61-P-6000MMF
	Model 231.4 with engine 276.8 as of model year 2017 N3/10	GF07.61-P-6000MMZ
	Model 231.4 with engine 279.9 as of model year 2017 N3/10	GF07.61-P-6000MUA
Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070RK
Component description for rear SAM control unit with fuse and relay module	N10/2	GF54.21-P-6030RK
Component description for Electronic Stability Program control unit	N30/4	GF42.45-P-5119RK
ABC control unit, component description	Model 231 as of model year 2017 with code 487 (Active Body Control (ABC)) N51/2	GF32.50-P-4501RK
Component description for adaptive damping system control unit	Model 231 as of model year 2017 except code 487 (Active Body Control (ABC)) N51/5	GF32.32-P-1010RK
Left door control unit, component description	N69/1	GF72.29-P-4143RK
Right door control unit, component description	N69/2	GF72.29-P-4144RK
Upper control panel control unit, component description	N72/1	GF54.21-P-6040RK
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001RK
Component description for steering column tube module control unit	N80	GF54.21-P-6051RK
Component description for chassis gateway control unit	Model 231 as of model year 2017 with code 23P (Driving Assistance package Plus) N93/7	GF54.21-P-1010RKM
Electric parking brake control unit, component description	N128	GF42.20-P-5005RK
Component description for fully integrated transmission control unit	Model 231 with transmission 725.0 as of model year 2017 Y38n4	GF27.60-P-5165ANM
	Model 231 with transmission 722.9 (except 722.931) as of model year 2017 Y38n4	GF27.60-P-5165AHP
	Model 231.4 with transmission 722.931 as of model year 2017 Y38n4	GF27.60-P-5165AHJ
Table of contents for function description of exterior lights		GF82.10-P-0999RKM
