Remove/Install Automatic Transmission Fluid Cooler - AR27.55-P-1000MNK
Transmission 725.0 in model 217, 222 with engine 176
Example illustration

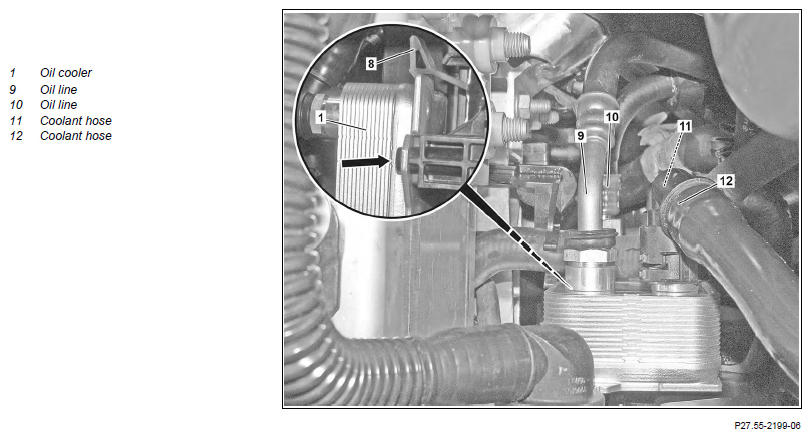

Fig 1: Automatic Transmission Fluid Cooler Components Location - Transmission 725.0 In Model 222 With Engine 176
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove fan unit | AR20.40-P-5050MNL | |
| 2 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNL | |
| 3 | Remove coolant hoses (11, 12) from oil cooler (1) | AR20.20-P-7441-01RQ | |
| 4 | Seal connections of coolant hoses (11, 12) on oil cooler (1) with protective covers | Fig 2 | |
| 5 | Seal coolant hoses (11, 12) using protective covers | Fig 2 | |
| 6 | Detach oil lines (9, 10) from oil cooler (1) and remove oil cooler (1) in downward direction | AR27.10-P-0501-03LF | |
| Fig 3 | |||
| 7 | Seal openings in oil cooler (1) using suitable stop plugs | Fig 3 | |
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check fluid level in automatic transmission and adjust to correct level | AR27.00-P-0270EWN | |
| 10 | Check low-temperature circuit cooling system for leak tightness | Transmission 725.0 in model 217, 222 with engine 176 | AR09.41-P-1011MNL |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform engine test run and check oil lines (9, 10) and oil cooler (1) for leaks | ||
| 12 | Install front and center engine compartment paneling | AR61.20-P-1105LF |
