Check/Correct Transmission Oil Level On Transfer Case - AR28.10-P-0100-06MNE

Transmission 725.09 in Model 213

with Code M005 (Vehicles with 4MATIC/All-wheel drive)

Transmission 725.09 in Model 217, 222

with Code M005 (Vehicles with 4MATIC/All-wheel drive)

Transmission 725.09 in Model 253

with Code M005 (Vehicles with 4MATIC/All-wheel drive)

CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
COMPLETE TRANSFER CASE

Number Designation Model 205, 206, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA28.10-P-1007-01G Oil level sight glass to transfer case Nm 11
COMPLETE TRANSFER CASE

Number Designation Model 205, 213, 217, 218, 222, 223, 232, 238, 253, 257, 290 with transmission 725.0
BF28.10-P-1001-01F Transfer case oil Filling capacity Liter 0, 65
Specification BB00.40-P-0236-15A
Fig 1: Identifying Hand Pump (210 589 00 71 00)
G15299688Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Adapter (213 589 00 90 00)
G15299689Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01

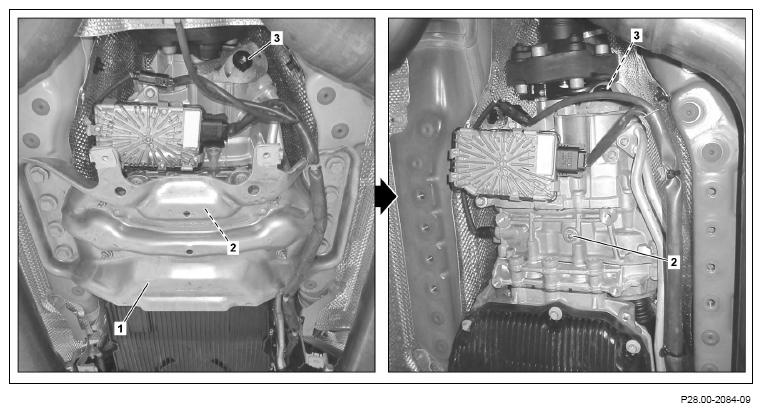

G12817473Courtesy of MERCEDES-BENZ USA

Shown on Model 222

Cleaning

  1. Clean area around the oil level screw (3).

    Remove

  2. Remove oil level screw (3) with crash stop plug from transfer case.

    IMPORTANT Dispose of old oil level screw (3).

    Check

  3. Check crash stop plug for damage and wear.

    If a problem occurs:

    ↓

    Replace crash stop plug.

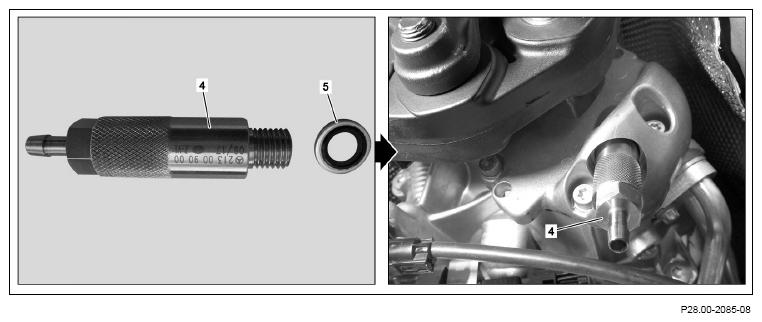

    G12817474Courtesy of MERCEDES-BENZ USA

    Install

  4. Screw the SPECIAL TOOL adapter (4) with the sealing ring (5) into the threaded hole of the oil level screw (3).

    Pour in

  5. Fill transfer case gear oil through the SPECIAL TOOL adapter (4) in the threaded hole of the oil level screw (3) using SPECIAL TOOL hand pump into the transfer case, until excess transfer case gear oil runs out of the SPECIAL TOOL adapter (4) FLUID SPECIFICATION .

    Remove

  6. Remove SPECIAL TOOL adapter (4) with the sealing ring (5) from the threaded hole of the oil level screw (3).

    Cleaning

  7. Clean threaded hole of the oil level screw (3).

    Install

  8. Tighten new oil level screw (3) on transfer case TORQUE SPECIFICATION .

    NOTES Replace oil level screw (3) each time it is unscrewed.

    Otherwise, leaks and consequential damage may occur.

  9. Fit crash stop plug over the oil level screw (3) on transfer case.
