Remove/Install Front Suspension Pressure Reservoir - AR32.50-P-0010LF

Model 217, 222

With Code 487 (Active Body Control (ABC))

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning  from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
Topical note	Notes on fitting hydraulic lines and hoses		AH32.50-P-0001-02A
	Notes on Active Body Control suspension		AH32.50-P-0001-01N
	Remove/install
1	Release pressure in ABC system using diagnostic system		AR32.50-P-0001-01LF
			AD00.00-P-2000-04B

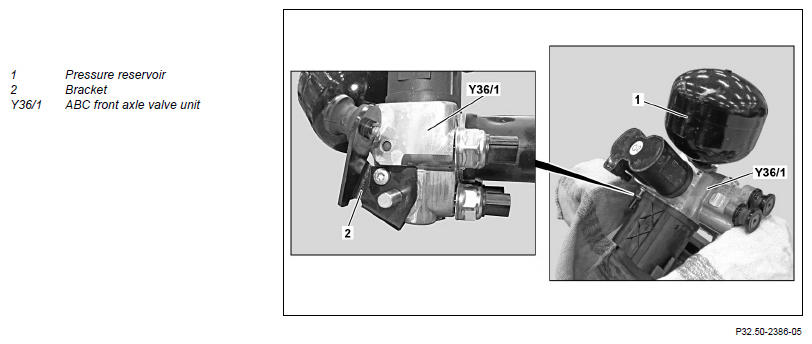

2	Remove front axle ABC valve unit (Y36/1) with pressure reservoir (1)		AR32.50-P-0001LF
3	Detach bracket (2) from front axle ABC valve unit (Y36/1)	Bolt, bracket to front valve unit	*BA32.50-P-1002-03B
4	Clamp front axle ABC valve unit (Y36/1) with pressure reservoir (1) in vise	Use soft vise jaws.
	Clean
5	Clean area around connecting point of pressure reservoir (1) to front axle ABC valve unit (Y36/1)	Only use clean, lint free rags and cleaner free of mineral oil.
6	Unscrew pressure reservoir (1) from front axle ABC valve unit (Y36/1)	Pressure reservoir at front valve unit	*BA32.50-P-1005-03B
7	Dispose of pressure reservoir (1) properly	When replacing pressure reservoir (1)
8	Install in the reverse order
9	Fill and bleed ABC system		AR32.50-P-0021SX

ACTIVE BODY CONTROL

Number	Designation			Model 217	Model 222
BA32.50-P-1002-03B	Bolt, bracket to front valve unit	M6	Nm	10	10

ACTIVE BODY CONTROL

Number	Designation		Model 217	Model 222
BA32.50-P-1005-03B	Pressure reservoir at front valve unit	Nm	80	80
