Replace Radial Shaft Sealing Ring At Outer Right Front Axle Differential - AR33.30-P-0540LFX
Model 217, 222 with transmission 722.96/97
Model 217, 222 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Shown on model 222
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100CW | |
| 2 | Remove center and rear section of lower engine compartment paneling | AR61.20-P-1105LF | |
| 3 | Drain hypoid gear oil out of front axle transmission (1) | ||
| *BA33.30-P-1008-03G | |||
| *BF33.30-P-1001-03F | |||
| Fig 2 | |||
| 4 | Remove right front axle shaft | Model 217 with transmission 722.96/97 Model 217, 222 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 with transmission 722.96/97 except code Z07 (B7 armoring on special protection version) |
AR33.30-P-0620LFX |

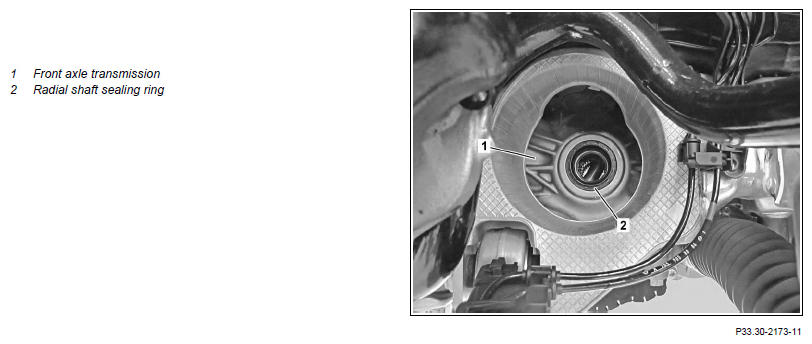

| 5 | Pull radial shaft sealing ring (2) out of front axle transmission (1) using internal extractor, extraction tool and impact extractor | ||
| Universal hypoid gear oils (specification 235.7) | BB00.40-P-0235-07A | ||
| Fig 4 | |||
| Fig 5 | |||
| Fig 3 | |||
| Fig 1 | |||
| 6 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Check front axle transmission (1) for leak tightness and proper operation |
FRONT AXLE GEAR
| Number | Designation | Model 217 | Model 222 | |
|---|---|---|---|---|
| BA33.30-P-1008-03G | Front axle transmission drain screw | Nm | 20 | 20 |
FRONT AXLE GEAR
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BF33.30-P-1001-03F | Hypoid gear oil | Filling capacity | Liter | 0, 55 | 0, 55 |
| Universal hypoid gear oil | BB00.40-P-0235-07A | BB00.40-P-0235-07A | |||
| Overview of axle gear oils | BB00.40-P-0231-01A | BB00.40-P-0231-01A | |||
| Axle gear oils | BB00.40-P-0239-72A | BB00.40-P-0239-72A | |||
