Remove/Install Intermediate Shaft - AR33.30-P-0625LFX
Model 217, 222 with transmission 722.96/97
Model 217, 222 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)
MODIFICATION NOTES
| 22.03.2021 | Check of pilot bushing (4), added. |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove | |||
| 1 | Remove left front axle shaft. | Model 217 with transmission 722.96/97 Model 217, 222 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 with transmission 722.96/97 except code Z07 (B7 armoring on special protection version) |
AR33.30-P-0620LFX |

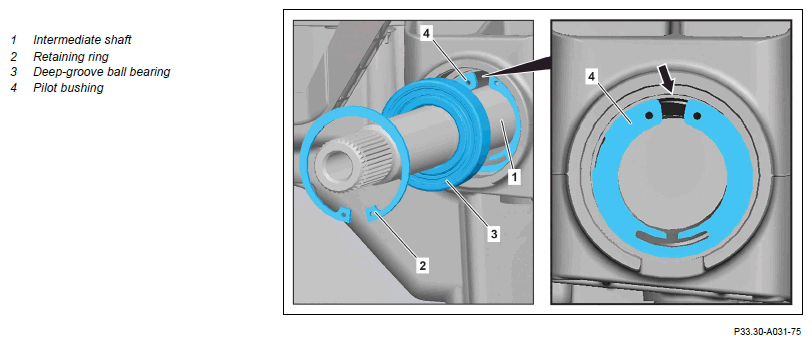

| 2 | Remove retaining ring (2). | ||

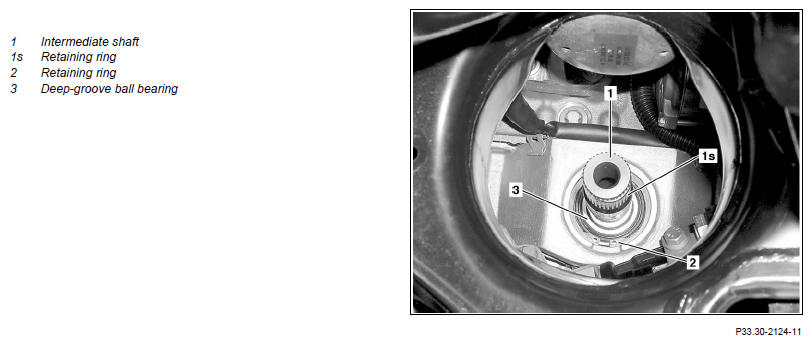

| 3 | Remove intermediate shaft (1) with deep-groove ball bearing (3). | ||
| Check | |||
| 4 | Check deep-groove ball bearing (3) for damage. | If the deep-groove ball bearing (3) is damaged. ↓ Replace deep-groove ball bearing (3). |
|
| AR33.30-P-0625-02LWX | |||
| Length "a" for grooved ball bearing wheel offset | *BE33.30-P-1001-04C | ||
| Fig 1 | |||
| Fig 2 | |||
| Fig 3 | |||
| Fig 4 | |||
| 5 | Check intermediate shaft (1) for damage. | If the intermediate shaft (1) is damaged. ↓ Install a new intermediate shaft (1). |
|
| 6 | Check pilot bushing (4) for damage. | If pilot bushing (4) is damaged: ↓ Replace pilot bushing (4). |
|
| 7 | Check pilot bushing (4) is correctly seated in oil pan. | The pilot bushing (4) must be installed in the oil pan. Otherwise, the radial shaft sealing ring on the front axle differential will be damaged. If the pilot bushing (4) is not correctly seated in the oil pan: ↓ Install pilot bushing (4) correctly in oil pan. |
|
| Install | |||
| 8 | Install intermediate shaft (1) with deep-groove ball bearing (3). | ||
| 9 | Install retaining ring (2). | ||
| 10 | Install left front axle shaft. | Model 217 with transmission 722.96/97 Model 217 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 222 with transmission 722.96/97 except code Z07 (B7 armoring on special protection version) Model 222 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR33.30-P-0620LFX |
INTERMEDIATE SHAFT
| Number | Designation | Model 217 | Model 222 | |||
|---|---|---|---|---|---|---|
| BE33.30-P-1001-04C | Length "a" for grooved ball bearing wheel offset | With an intermediate shaft length of | 472.0 mm | mm | - | - |
| 478.5 mm | mm | - | - | |||
| 479.3 mm | mm | - | - | |||
| 504.3 mm | mm | - | - | |||
| 510.0 mm | mm | 366, 0...366, 2 | 366, 0...366, 2 | |||
