Wiring Diagram For Right Rear Seat Control Unit - PE91.29-P-2107-97SEA
Model 222 up to model year 2018 with code 223 (Electric backrest adjustment and head restraints) Control unit N32/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| CAN B | Interior CAN | 10K |
| Code 223 | Rear bench seat with electrically adjustable outer seats with PRE-SAFE positioning function for outer seats and outer head restraints | 46A |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 41A |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 25A |
| Code 402 | Rear comfort seats, incl. seat heating and seat ventilation | 58A |
| Code 406 | Multicontour seats in rear | 28A |
| Code 453 | Rear reclining seats | 16F |
| Code 453 | Rear reclining seats | 50A |
| Code P43 | Rear seating comfort package | 62A |
| Code P43 | Rear seating comfort package | 43A |
| K18/7 | Seat belt comfort-fit function solenoid, right rear seat | 8L |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f478 | Fuse 478 | 3L |
| K40/5f484 | Fuse 484 | 4L |
| M18/14 | Right rear seat head restraint height adjustment motor | 39L |
| M18/14b1 | Right rear seat head restraint height adjustment Hall sensor | 40L |
| M18/16 | Right rear seat head restraint inclination adjustment motor | 36L |
| M18/16b1 | Right rear seat head restraint inclination adjustment Hall sensor | 36L |
| M18/20 | Right rear seat cushion inclination adjustment motor | 14L |
| M18/20b1 | Right rear seat cushion inclination adjustment Hall sensor | 15L |
| M18/24 | Right rear seat leg rest inclination adjustment motor | 53L |
| M18/24b1 | Right rear seat leg rest inclination adjustment Hall sensor | 54L |
| M18/26 | Right rear seat leg rest fore/aft adjustment motor | 51L |
| M18/26b1 | Right rear seat leg rest fore/aft adjustment Hall sensor | 52L |
| M18/5 | Right rear seat backrest ventilation motors | 26L |
| M18/6 | Right rear seat cushion ventilation motors | 60L |
| M28/11 | Right rear seat backrest inclination adjustment motor | 22L |
| M28/11b1 | Right rear seat backrest inclination adjustment Hall sensor | 23L |
| M53/3 | Center rear seat head restraint height adjustment seat adjustment motor | 48L |
| M53/3b1 | Center rear seat head restraint height adjustment Hall sensor | 49L |
| N25/12 | Right rear seat heater control unit | 66L |
| N32/21 | Right rear multicontour seat control unit | 30L |

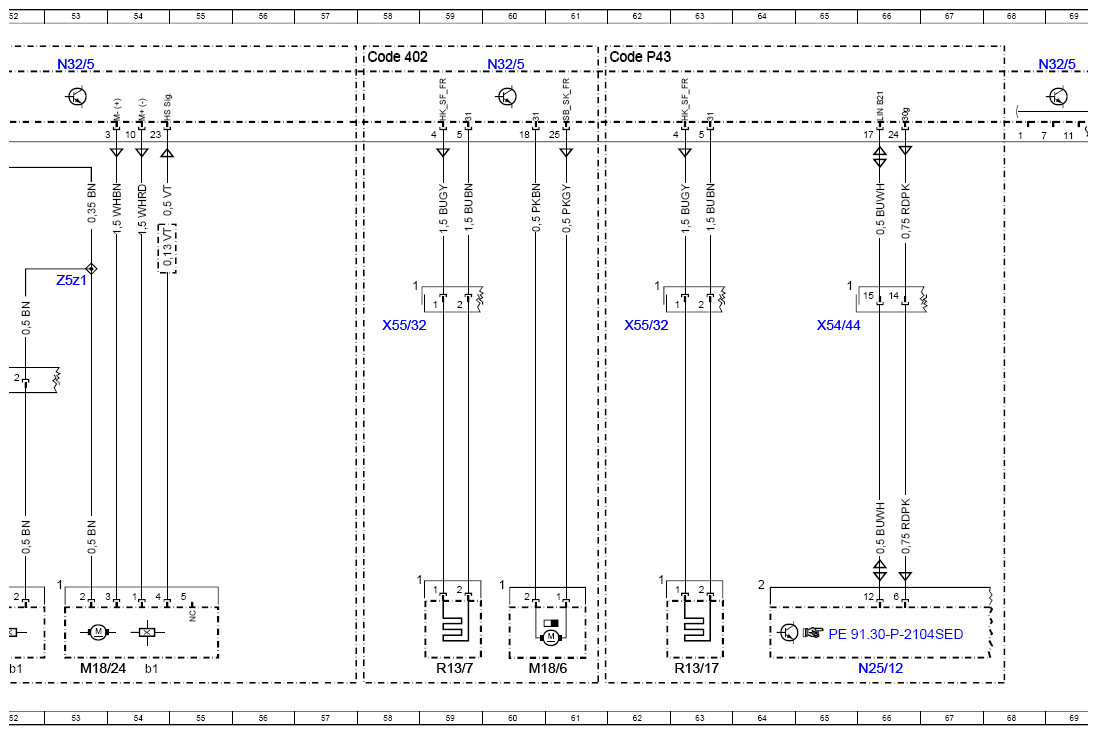

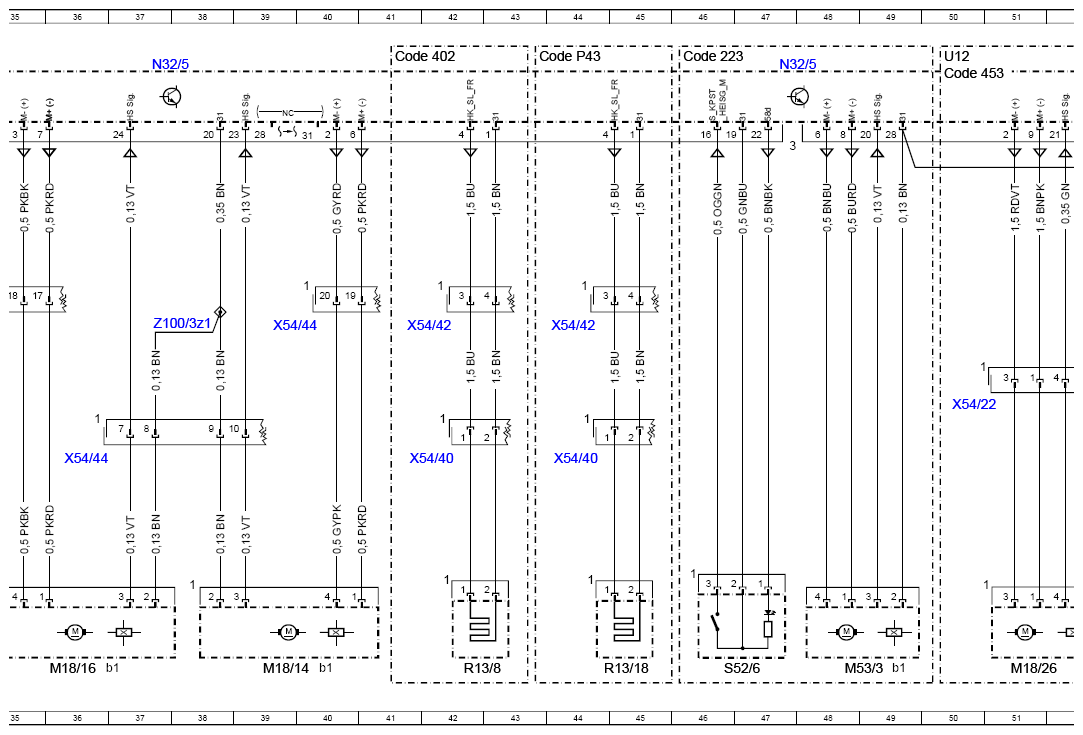

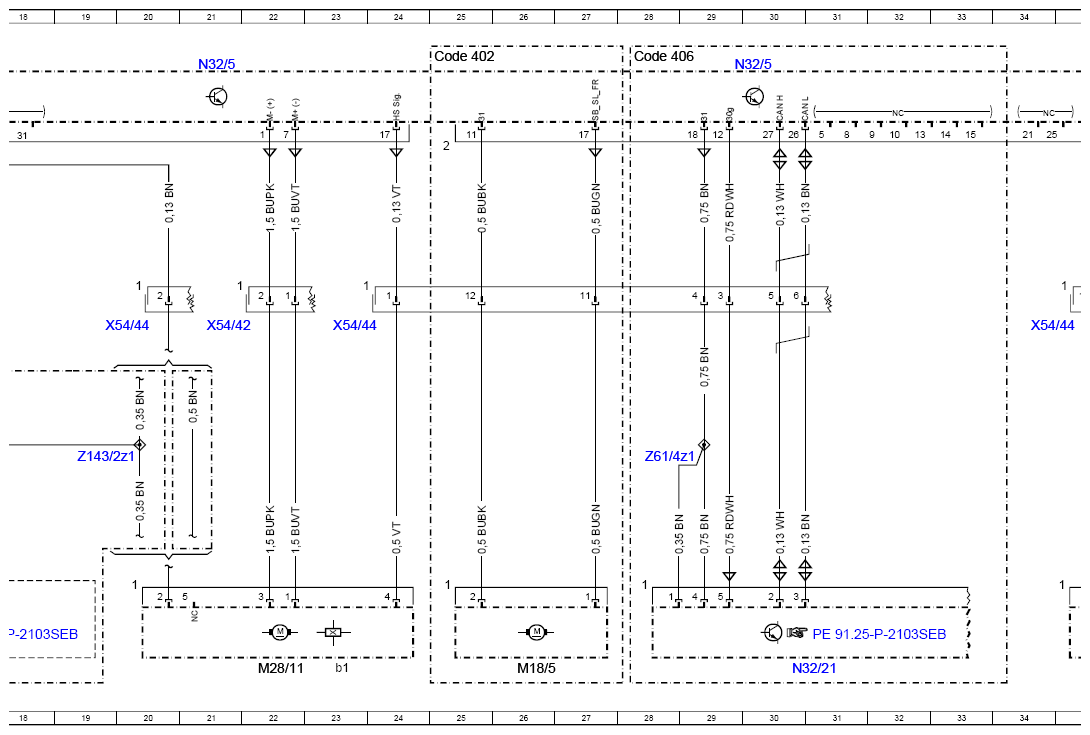

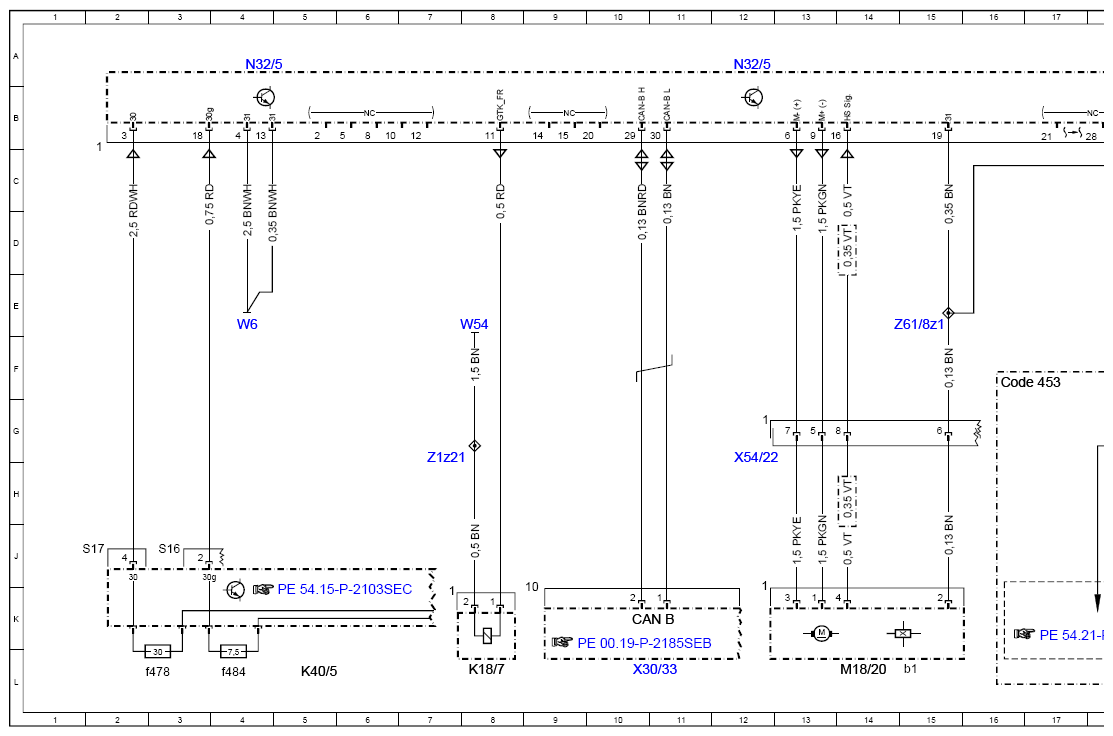

| N32/5 | Right rear seat control unit | 4A |
| N32/5 | Right rear seat control unit | 12A |
| N32/5 | Right rear seat control unit | 21A |
| N32/5 | Right rear seat control unit | 30A |
| N32/5 | Right rear seat control unit | 37A |
| N32/5 | Right rear seat control unit | 47A |
| N32/5 | Right rear seat control unit | 60A |
| N32/5 | Right rear seat control unit | 69A |
| N32/5 | Right rear seat control unit | 53A |
| R13/17 | Seat cushion side bolster heater pad, right rear | 63L |
| R13/18 | Backrest side bolster heater pad, right rear | 45L |
| R13/7 | Right rear seat sitting surface heated cushion | 59L |
| R13/8 | Right rear backrest heater pad | 42L |
| S52/6 | Rear seat center head restraint height adjustment switch | 46L |
| U12 | Valid for left-hand drive vehicles | 50A |
| W54 | Right rear wheel well ground point | 8E |
| W6 | Left wheel arch trunk ground point | 4E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 10L |
| X54/22 | Right rear seat longitudinal/inclination adjustment seat adjustment motors electrical connector | 12H |
| X54/22 | Right rear seat longitudinal/inclination adjustment seat adjustment motors electrical connector | 50G |
| X54/40 | Right rear backrest heater pad electrical connector | 42H |
| X54/40 | Right rear backrest heater pad electrical connector | 44H |
| X54/42 | Frame floor assembly/right rear seat backrest electrical connector | 21E |
| X54/42 | Frame floor assembly/right rear seat backrest electrical connector | 42E |
| X54/42 | Frame floor assembly/right rear seat backrest electrical connector | 44E |
| X54/44 | Frame floor assembly/right rear seat backrest electrical connector | 23E |
| X54/44 | Frame floor assembly/right rear seat backrest electrical connector | 40E |
| X54/44 | Frame floor assembly/right rear seat backrest electrical connector | 65E |
| X54/44 | Frame floor assembly/right rear seat backrest electrical connector | 36H |
| X54/44 | Frame floor assembly/right rear seat backrest electrical connector | 34E |
| X54/44 | Frame floor assembly/right rear seat backrest electrical connector | 20E |
| X55/32 | Right rear seat sitting surface heater pad electrical connector | 62E |
| X55/32 | Right rear seat sitting surface heater pad electrical connector | 58E |
| Z100/3z1 | Connector sleeve, head restraint adjustment at rear | 38E |
| Z143/2z1 | Right rear backrest inclination connector sleeve | 19G |
| Z1z21 | Circuit 31 connector sleeve | 7G |
| Z5z1 | Connector sleeve in wiring harness | 53E |
| Z61/4z1 | Right rear seat backrest circuit 31 connector sleeve | 28G |
| Z61/8z1 | Hall sensor circuit 31 connector sleeve | 15E |
