Wiring Diagram Of Heater Booster Control Unit - PE83.70-P-2102-97SEA
Model 222 with engine 276 up to model year 2018
with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN))

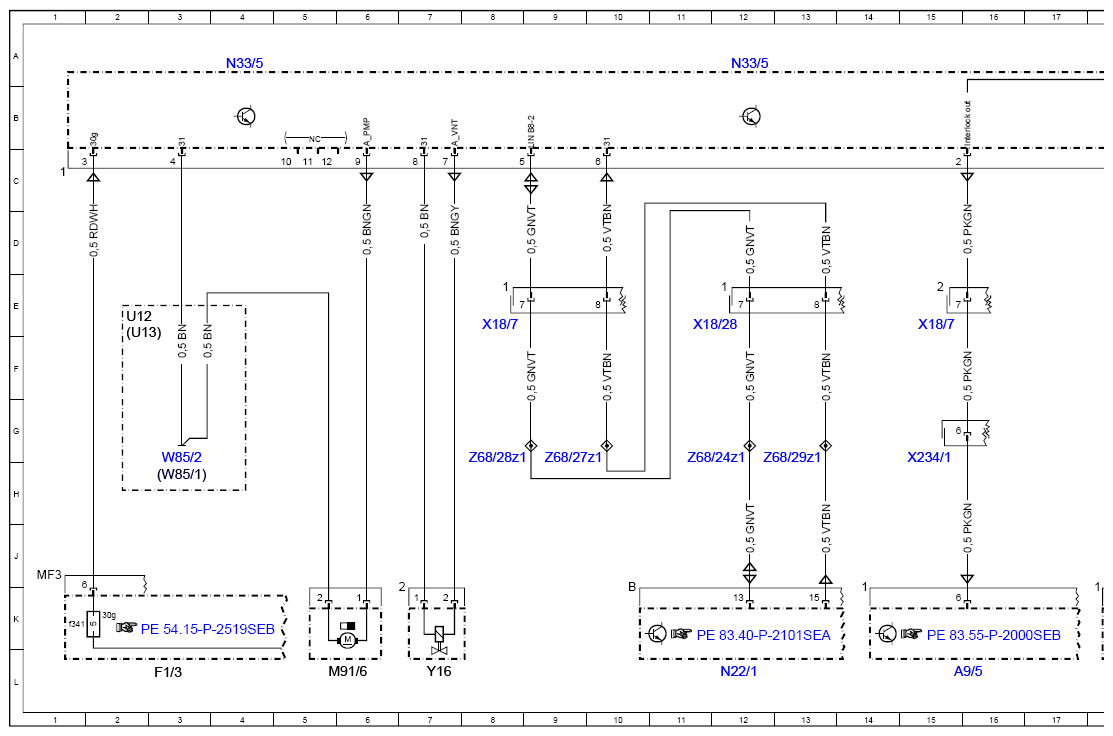

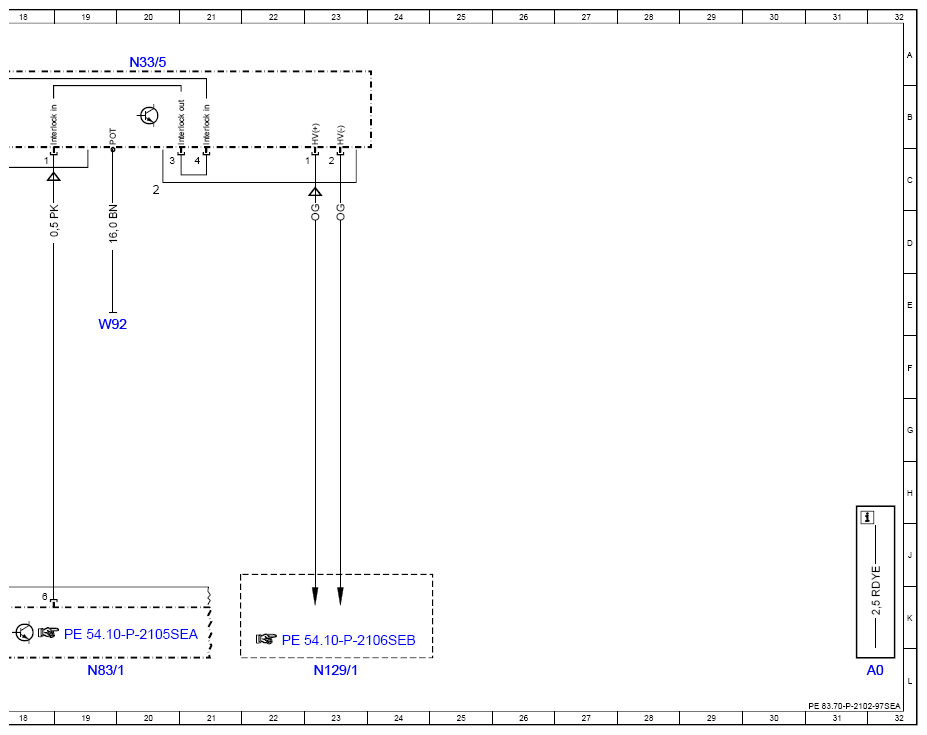

Control unit N33/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A9/5 | Electric refrigerant compressor | 15L |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3f341 | Fuse 341 | 1K |
| M91/6 | Heater circuit circulation pump | 6L |
| N129/1 | Power electronics control unit | 23L |
| N22/1 | Climate control, control unit | 12L |
| N33/5 | High-voltage PTC heater | 4A |
| N33/5 | High-voltage PTC heater | 12A |
| N33/5 | High-voltage PTC heater | 20A |
| N83/1 | DC/DC converter control unit | 19L |
| U12 | Valid for left-hand drive vehicles | 2E |
| U13 | Valid for right-hand drive vehicles | 2F |
| W85/1 | Driver footwell frame floor assembly ground point | 3H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 3H |
| W92 | High-voltage PTC heater ground point | 19E |
| X18/28 | Left cockpit/engine compartment electrical connector | 12E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 8E |
| X18/7 | Vehicle interior and engine compartment electrical connector | 15E |
| X234/1 | Refrigerant compressor electrical connector | 15H |
| Y16 | Stationary heater switchover valve | 7L |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 12G |
| Z68/27z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 9G |
| Z68/28z1 | Connector sleeve, data line for climate control LIN 2 | 8G |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 13G |
