Remove/Install Right Throttle Valve Actuator - AR07.51-P-1403MNL
Engine 176 in model 217, 222
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Remove right charge air cooler (3). | Engine 176 in model 217, 222 with small lower coolant expansion reservoir for low-temperature circuit | AR09.41-P-6828MNL |
| Engine 176 in model 217, 222 with large lower coolant expansion reservoir for low-temperature circuit | AR09.41-P-6828MNP | ||

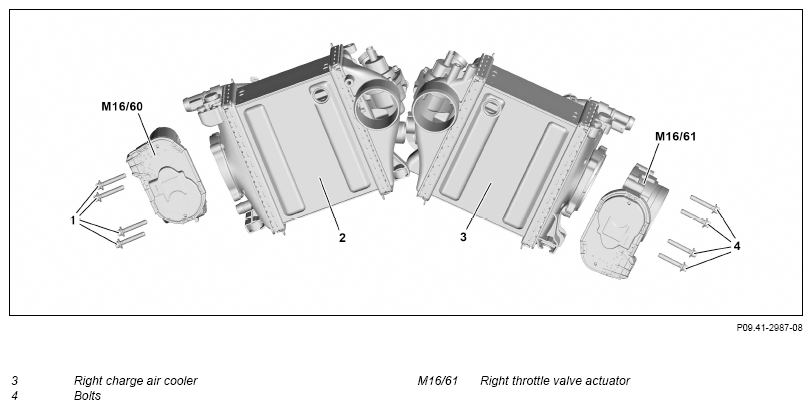

| 2 | Unscrew screws (4) and remove right throttle valve actuator (M16/61) from right charge air cooler (3). | ||
| *BA09.41-P-1008-01X | |||
| 3 | Install in the reverse order. |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1008-01X | Bolt, throttle valve actuator to charge air cooler | Nm | 9 |
