Disconnect/Connect Engine Wiring Harness To Remove Engine - AR15.18-P-1000-05MNL
Engine 176 in model 217, 222
MODIFICATION NOTES
| 11.07.2014 | Bolt reinforcement to firewall/ longitudinal member/reinforcement center | Model 222 | BA62.25-P-1001-01B |
| 14.06.2016 | Bolt, reinforcement to firewall/longitudinal member/reinforcement, center | BA62.25-P-1001-01B |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 x 1 | Nm | 9 | 13 |
GROUND POINTS
| Number | Designation | Model 217 up to model year 2018 | Model 217 as of model year 2018 | ||
|---|---|---|---|---|---|
| BA00.19-P-1035-01J | Bolt/nut, ground line to transmission/underfloor | M8 | Nm | 20 | 20 |
GROUND POINTS
| Number | Designation | Model 222 up to model year 2018 | Model 222 as of model year 2018 | ||
|---|---|---|---|---|---|
| BA00.19-P-1039-01C | Bolt/nut, ground line to transmission/underfloor | M8 | Nm | 20 | 20 |
FUSE AND RELAY BOX
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA54.15-P-1002-01J | Nut, positive terminal to engine compartment pre-fuse box | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||
FIREWALL
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA62.25-P-1001-01B | Bolt, reinforcement to firewall/longitudinal member/reinforcement, center | M6 | Nm | 9 | 9 |
| M8 | Nm | 30 | 30 | ||
FIREWALL
| Number | Designation | Model 217 | Model 222 | ||
|---|---|---|---|---|---|
| BA62.25-P-1002-01B | Bolt, reinforcement to suspension strut support | M8 | Nm | 30 | 30 |
- Engine 176 in model 217
Engine 176 in model 222

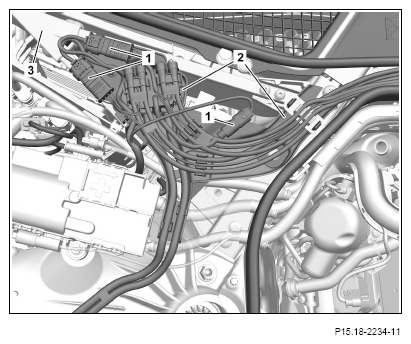

with code 874 (MAGIC VISION CONTROL, heated) Release and disconnect electrical connections (1).
- Engine 176 in model 217
Engine 176 in model 222
with code 874 (MAGIC VISION CONTROL, heated) Remove expansion rivet of bracket (2) and unclip bracket (2) from strut (3).
- Engine 176 in model 217
Engine 176 in model 222
with code 874 (MAGIC VISION CONTROL, heated) Place bracket (2) with lines to one side.

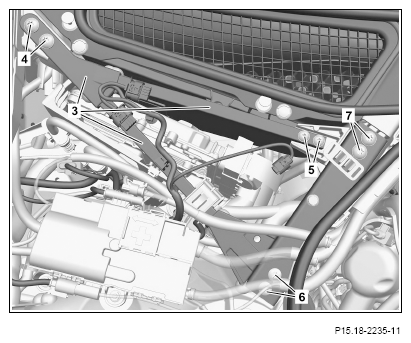

- Release and open retaining clamp at strut (3).
- Remove screw/bolts (6)
.
- Remove screws (4, 5, 7)
- Remove engine compartment seal at partition.

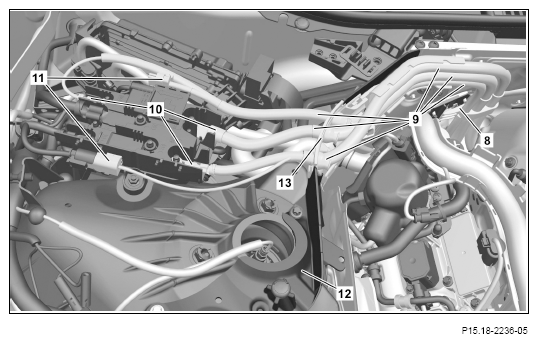

- Remove screws of trim (12)
- Place trim (12) to one side.
- Unclip bracket (8) from partition in upward direction.
- Release and disconnect electrical connectors (11).
- Unscrew nuts of electric lines (10)
- Remove wiring harness (9) with grommet (13) from partition in upward direction and place to one side.

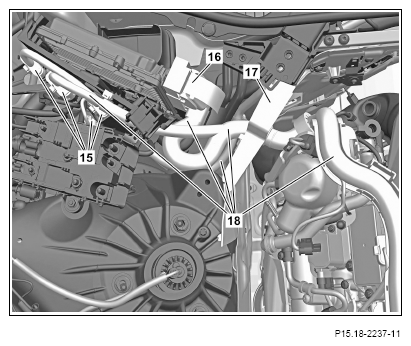

- Release and disconnect electrical connectors (15).
- Release and disconnect electrical connection (16).
- Remove wiring harness (18) with grommet (17) from partition in upward direction and place to one side.
- Remove wiring harness (18) at right cylinder head cover.
- Set down wiring harness (18) and wiring harness (9) on engine.

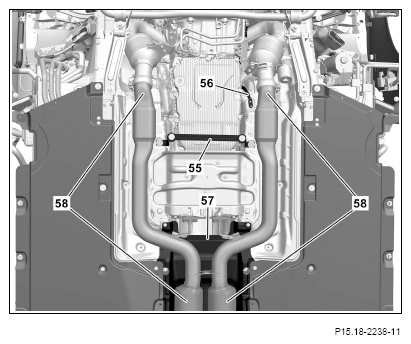

- Remove screw of ground line (56) at transmission.
Engine 176 in model 217 as of model year 2018
- Detach ground line (56) at transmission and place to one side.
- Connect in reverse order.
