Engine Oil Pump Tightening Procedure - AR18.10-P-6020-01MNA

Engine 176

Engine 177

Engine 178

OIL PUMP

Number Designation Engine 176 Engine 177
BA18.10-P-1001-01V Bolt, oil pump to crankcase Stage 1 Nm 5 5
Stage 2 Nm 20 20
OIL PUMP

Number Designation Engine 178
BA18.10-P-1001-01V Bolt, oil pump to crankcase Stage 1 Nm 5
Stage 2 Nm 20

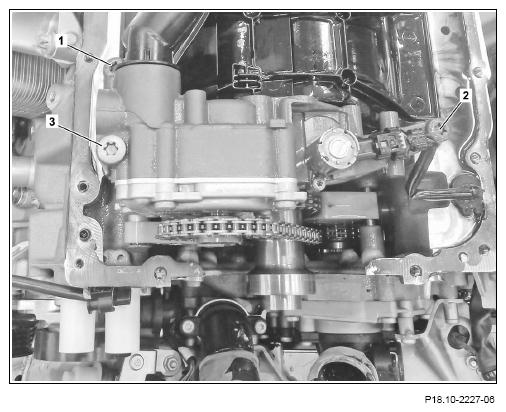

  1. Tighten screw/bolts (1, 2, 3) for the oil pump in numerical sequence TORQUE SPECIFICATION

    Shown on ENGINE 177

    G12817234Courtesy of MERCEDES-BENZ USA
