Remove/Install Engine Mount Or Engine Crossmember At The Rear - AR22.10-P-1180LF
Model 217 with engine 157, 276, 278, 279
Model 222 with engine 157, 276.8/9, 277, 278, 279, 642
Shown on MODEL 222 with ENGINE 278

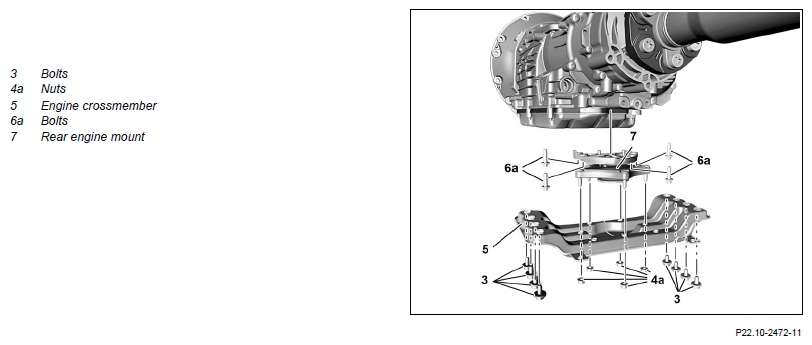

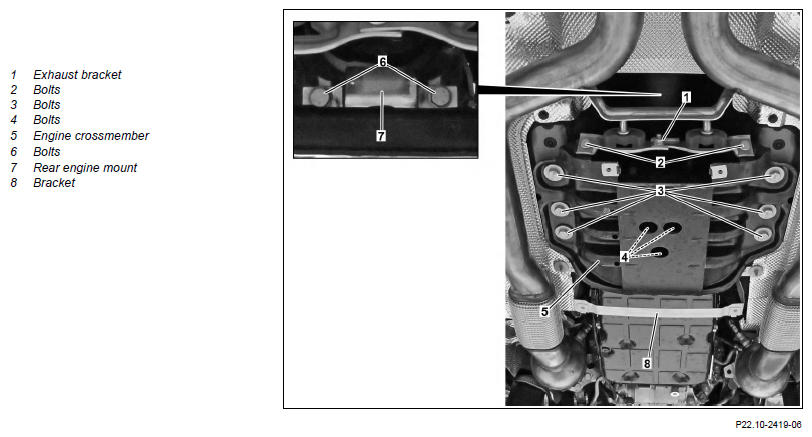

Fig 1: Rear Engine Mount Components Location - Model 222 With Engine 276.8 (Shown On Engine 642 With Code M005)
Shown on model 222 with engine 642 with code M005 (4MATIC)
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | |
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100CW | |
| 2 | Remove rear section of lower engine compartment paneling | AR61.20-P-1105LF | |
| 3 | Remove mounting bracket (8) for rear engine compartment panel | Model 217, 222 with engine 276.8 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| 4 | Support and secure the gear with assembly holder and mounting plate | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 5.1 | Remove screw/bolts (4) from rear engine mount (7) | Model 217 with engine 157, 276, 278, 279 Model 222 with engine 157, 276.8/9, 277, 278 279 Model 222 with engine 642 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| *BA22.10-P-1004-03K | |||
| 5.2 | Unscrew nuts (4a) from rear engine mount (7) | Model 217 with engine 276.8 Model 222 with engine 276.8, 642 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| *BA22.10-P-1004-03K | |||
| 6 | Lift transmission by about 10 mm | ||
| 7 | Remove screw/bolts (6) and remove rear engine mount (7) to the rear | Model 217 with engine 157, 276, 278, 279 Model 222 with engine 157, 276.8/9, 277, 278, 279 Model 222 with engine 642 except code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| *BA22.10-P-1003-03K | |||
| 8 | Remove screw/bolts (2) and exhaust bracket (1) | *BA49.10-P-1005-02D | |
Model 222 with engine 276.8/9 Model 222 with engine 277 Model 222 with engine 278 Model 222 with engine 279 Model 222 with engine 642Bolt, bracket for elastomer bearing for front exhaust system to rear engine support |
*BA49.10-P-1005-01AN | ||
| 9 | Remove screw/bolts (3) and take off engine crossmember (5) | ||
| *BA22.10-P-1005-03K | |||
| 10 | Remove screw/bolts (6) and remove rear engine mount (7) to the rear | Model 217 with engine 276 Model 222 with engine 276.8, 642 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| *BA22.10-P-1003-03K | |||
| 11 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 217 with engine 157, 176, 177, 278, 279 | Model 217 with engine 276 | ||
|---|---|---|---|---|---|
| BA22.10-P-1003-03K | Bolt, rear engine mount to bracket/transmission | M8 | Nm | 30 | 30 |
| M10 | Nm | 50 | 50 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 222 except code Z07 (B7 armoring on special protection version) | Model 222 with code Z07 (B7 armoring on special protection version) | ||
|---|---|---|---|---|---|
| BA22.10-P-1003-03K | Bolt, rear engine mount to bracket/transmission | M8 | Nm | 30 | 30 |
| M10 | Nm | 50 | 50 | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 217 with engine 157, 176, 177, 278, 279 | Model 217 with engine 276 | |
|---|---|---|---|---|
| BA22.10-P-1004-03K | Rear engine mount on engine support | Nm | 30 | 30 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 222 except code Z07 (B7 armoring on special protection version) | Model 222 with code Z07 (B7 armoring on special protection version) |
|
|---|---|---|---|---|
| BA22.10-P-1004-03K | Rear engine mount on engine support | Nm | 30 | 30 |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 217 with engine 157, 176, 177, 278, 279 | Model 217 with engine 276 | ||
|---|---|---|---|---|---|
| BA22.10-P-1005-03K | Screw/bolt, rear engine support to frame floor assembly | Stage 1 | Nm | 80 | 80 |
| Stage 2: Loosen | ∠ | - | - | ||
| Stage 3 | Nm | - | - | ||
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 222 except code Z07 (B7 armoring on special protection version) | Model 222 with code Z07 (B7 armoring on special protection version) |
||
|---|---|---|---|---|---|
| BA22.10-P-1005-03K | Screw/bolt, rear engine support to frame floor assembly | Stage 1 | Nm | 80 | 80 |
| Stage 2: Loosen | ∠ | - | 360 | ||
| Stage 3 | Nm | - | 120 | ||
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 222 | Engine 276 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1005-01AN | Bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 277 in model 222 | Engine 278 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1005-01AN | Bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 279 in model 222 | Engine 642 in model 222 | |
|---|---|---|---|---|
| BA49.10-P-1005-01AN | Bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 157 in model 217 | Engine 276 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1005-02D | Screw/bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
EXHAUST SYSTEM
| Number | Designation | Engine 278 in model 217 | Engine 279 in model 217 | |
|---|---|---|---|---|
| BA49.10-P-1005-02D | Screw/bolt, bracket for elastomer bearing for front exhaust system to rear engine support | Nm | 20 | 20 |
