Remove/Install Lower Heat Shields Of Turbocharger - AR09.40-P-6044MNM
Engine 177 in model 217, 222
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |

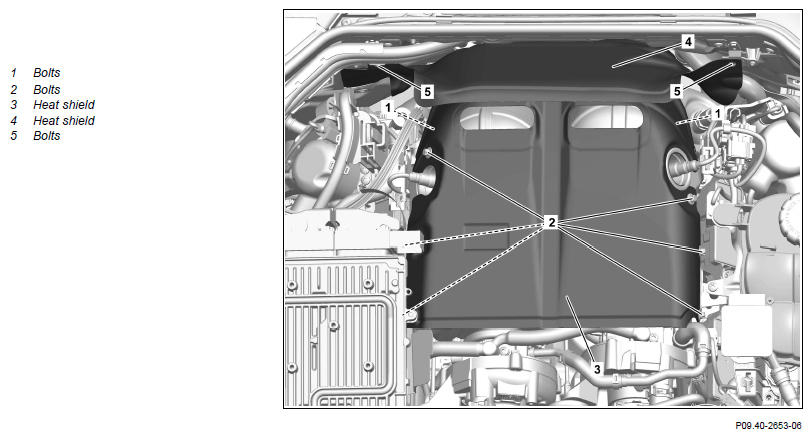

| Remove/install | |||
| 1 | Remove ME-SFI [ME] control unit (N3/10) and place to one side with connected coolant lines | AR07.08-P-7013MNM | |
| 2 | Remove screws/bolts (5) | ||
| 3 | Remove heat shield (4) | ||
| 4 | Remove screw/bolts (2) | *BA09.40-P-1006-01ZA | |
| 5 | Remove screw/bolt (1) | *BA09.40-P-1008-01ZA | |
| 6 | Remove heat shield (3) | ||
| 7 | Install in the reverse order |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1006-01ZA | Bolt, upper heat shield to bracket/side heat shield | Nm | 9 |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1008-01ZA | Bolt, rear heat shield to bracket | Nm | 9 |
