Remove/Install Lower Coolant Expansion Reservoir For Low-Temperature Circuit - AR09.41-P-0060MNL
Engine 176 in model 217, 222
with small lower coolant expansion reservoir for low-temperature circuit
Shown on engine 176 in model 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Notes on coolant level | AH20.00-P-1142-01CW | ||
| Remove/install | |||
| 1 | Drain off coolant in low-temperature circuit | AR09.41-P-6834MNL | |
| 2 | Remove fan unit | AR20.40-P-5050MNL | |
| 3 | Actuate connector coupling, remove feed line (3) at lower coolant expansion reservoir for low-temperature circuit (6) and seal openings with suitable stop plugs | Fig 2 | |
| 4 | Remove coolant hose (7) from bottom coolant expansion reservoir for low-temperature circuit (6) and seal openings with protective covers | AR20.20-P-7441-01RQ | |

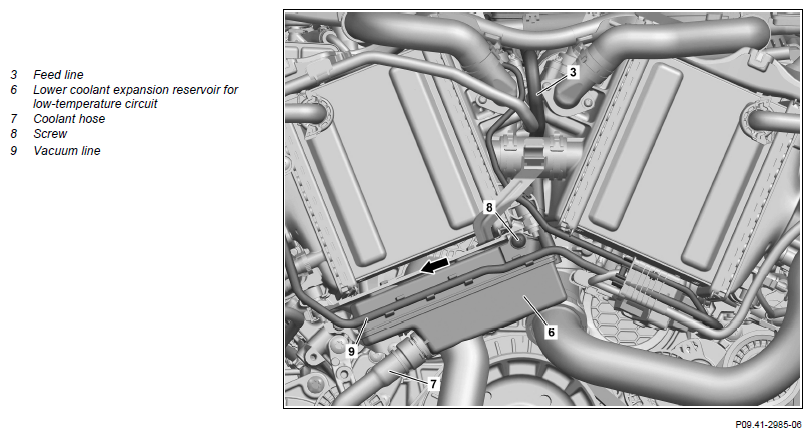

| Fig 1 | |||
| 5 | Remove screw/bolt (8) | *BA09.41-P-1010-01X | |
| 6 | Remove vacuum line (9) at lower coolant expansion reservoir for low-temperature circuit (6) | ||
| 7 | Slide lower coolant expansion reservoir for low-temperature circuit (6) in direction of arrow and remove | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Check coolant level in the top coolant expansion reservoir for low-temperature circuit and correct if necessary | *BF20.00-P-1001-06A | |
| 10 | Check low-temperature circuit cooling system for leaktightness | AR09.41-P-1011MNL | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 11 | Perform an engine test run and in doing so check low-temperature circuit for proper function | ||
| 12 | Install lower engine compartment paneling | AR61.20-P-1105LF | |
| 13 | Install upper engine cover |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1010-01X | Screw, low-temperature circuit expansion reservoir at bottom to charge air cooler/crankcase/cylinder head cover holder | Nm | 9 |
COOLING SYSTEM
| Number | Designation | Engine 176 in model 217 | Engine 176 in model 222 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-06A | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈ 14 | ≈ 14 |
| Low-temperature circuit | Liter | ≈ 4 | ≈ 4 | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Fluids Specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Fluids Specifications | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Fluids Specifications | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
