Remove/Install Left Bypass Air Switchover Valve - AR09.40-P-0007MNL
Engine 176 in model 217, 222

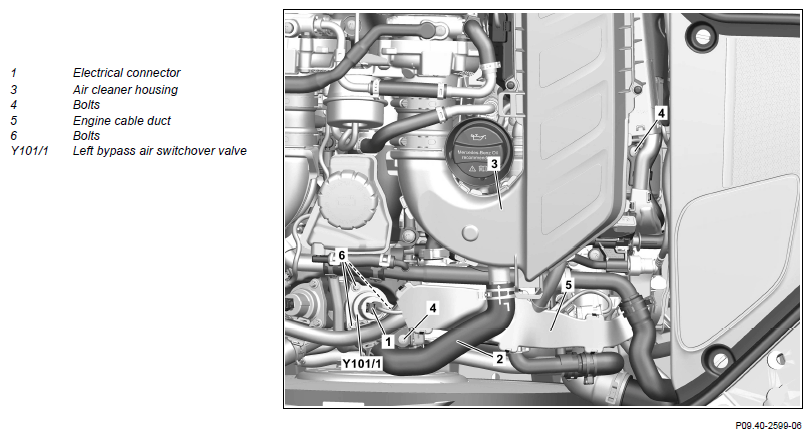

Shown on model 222
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove air filter housing (3) | AR09.10-P-1151MNL | |
| 3 | Release and disconnect electrical connection (1) | ||
| 4 | Unscrew screws/bolts (4) and place engine cable duct (5) to one side | ||
| 5 | Unscrew screws/bolts (6), and remove left divert air switchover valve (Y101/1) | ||
| *BA09.41-P-1012-01X | |||
| 6 | Install in the reverse order | ||
| 7 | Read out and erase fault memory | ||
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 9 | Install upper engine cover |
CHARGE AIR LINE/CHARGE AIR COOLING
| Number | Designation | Engine 176 | |
|---|---|---|---|
| BA09.41-P-1012-01X | Screw/bolt, bypass air switchover valve to charge air cooler | Nm | 8 |
