Drain/Fill Low-Temperature Circuit Coolant - AR09.41-P-6834MNM
Engine 177 in model 217, 222
MODIFICATION NOTES
| 30.11.2017 | Screw/bolt, front diagonal strut to front axle carrier/body | BA61.10-P-1018-01K |
Shown on model 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Notes on coolant | AH20.00-P-2080-01KOA | |
| Remove | |||
| 1 | Remove upper engine cover | ||
| 2 | Remove engine compartment paneling | AR61.20-P-1105LF | |
| 3 | Release side underfloor paneling in front area | AR61.30-P-1001LF | |

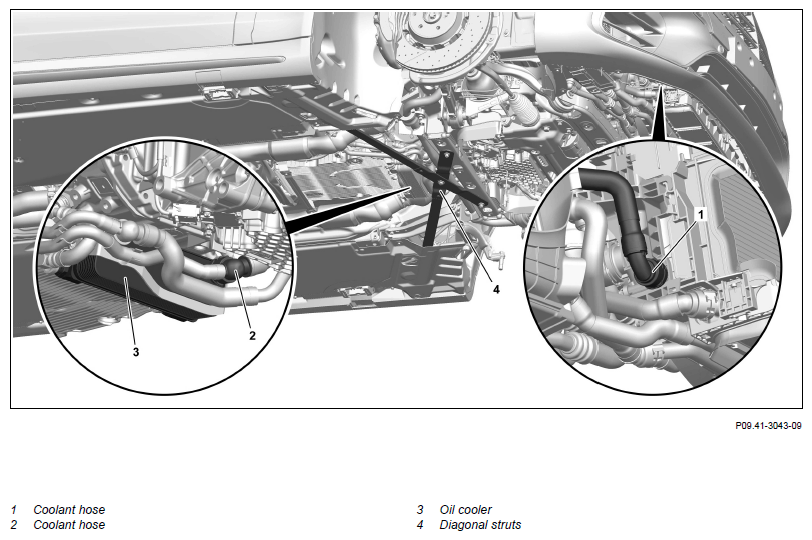

| 4 | Remove front diagonal struts (4) | ||
| Drain off | |||
| 5 | Remove cap on low-temperature circuit coolant expansion reservoir | ||
| 6 | To do this, remove coolant hose (1) from low-temperature circuit cooler and drain off escaping coolant into suitable container | AR20.20-P-7441-01RQ | |
| 7 | Attach coolant hose (1) to low-temperature circuit cooler | AR20.20-P-7441-01RQ | |
| 8 | Remove coolant hose (2) from oil cooler (3) and drain off coolant into suitable container | AR20.20-P-7441-01RQ | |
| 9 | Attach coolant hose (2) to oil cooler (3) | AR20.20-P-7441-01RQ | |
| Pour in | |||
| 10 | Pour in clean coolant and bleed low-temperature circuit engine cooling system | AR20.00-P-1142-04A | |
| *BF20.00-P-1001-02LA | |||
| *BF20.00-P-1001-04A | |||
| Fig 3 | |||
| Fig 1 | |||
| Fig 4 | |||
| Fig 2 | |||
| 11 | Perform venting routine of engine management control unit (MCM) | ||
| AD00.00-P-2000-04B | |||
| Check | |||
| 12 | Check low-temperature circuit for leaktightness | AR09.41-P-1011MNM | |
| Install | |||
| 13 | Install front diagonal struts (4) | *BA61.10-P-1018-01K | |
| 14 | Install side underfloor paneling in front area | AR61.30-P-1001LF | |
| 15 | Install lower engine compartment paneling | AR61.20-P-1105LF | |
| 16 | Install upper engine cover |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 217 | Model 222.0/1/9 | ||
|---|---|---|---|---|---|
| BA61.10-P-1018-01K | Screw/bolt, front diagonal strut to front axle carrier/body | M8 | Nm | 17 | 17 |
| M10 | Nm | 50 | 50 | ||
COOLING SYSTEM
| Number | Designation | Engine 177 in model 217 | Engine 177 in model 222 | |||
|---|---|---|---|---|---|---|
| BF20.00-P-1001-02LA | Cooling system | Workshop replacement amount | Main circuit | Liter | ≈13, 6 | ≈13, 5 |
| Low Temp Circuit 1 | Liter | ≈6, 2 | ≈6, 2 | |||
| Low Temp Circuit 2 | Liter | - | - | |||
| Antifreeze/water | Down to -37°C | % | 50/50 | 50/50 | ||
| -38°C and below | % | 55/45 | 55/45 | |||
| Fluids Specifications | BB00.40-P-0310-01A | BB00.40-P-0310-01A | ||||
| Fluids Specifications | BB00.40-P-0325-06A | BB00.40-P-0325-06A | ||||
| Fluids Specifications | BB00.40-P-0326-06A | BB00.40-P-0326-06A | ||||
COOLANT MIXING RATIO
| Number | Designation | All engines, except engine 178 in model 190.381 | |||
|---|---|---|---|---|---|
| BF20.00-P-1001-04A | Coolant mixing ratio | Antifreeze/water | Up to -25°C | % | - |
| Up to -37°C | % | 50/50 | |||
| As of -38°C | % | 55/45 | |||
| Overview and specifications sheet | BB00.40-P-0310-01A | ||||
| References to sheet specification | BB00.40-P-0310ZZ | ||||
