Routing Diagram For Poly-V Belt - AR13.22-P-3902-02MM

Engine 157, 276, 278

Shown on Engine 276 in Model 212.095/195

Courtesy of MERCEDES-BENZ USA

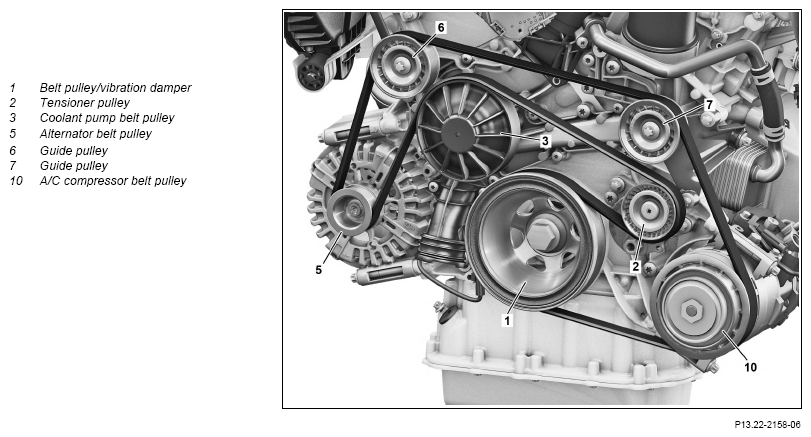

Shown: Engine 276 without hydraulic power steering pump

Fig 1: Poly-V Drive Belt Routing Diagram - Engine 276 (Shown Without Hydraulic Power Steering Pump)

Courtesy of MERCEDES-BENZ USA

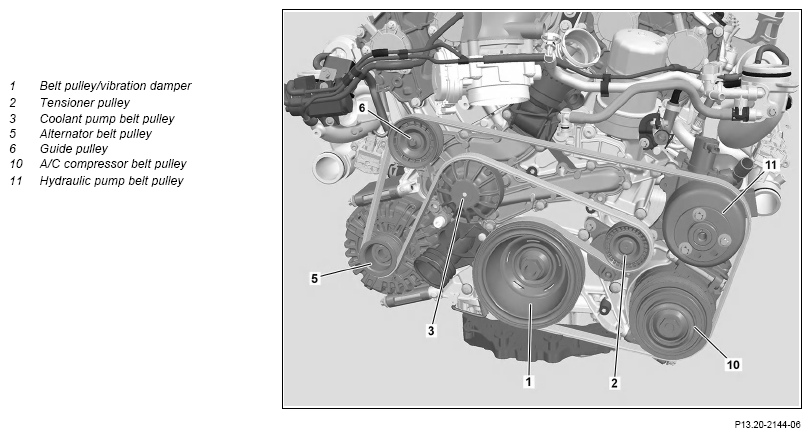

Shown: Engine 276 with hydraulic power steering pump

Fig 2: Poly-V Drive Belt Routing Diagram - Engine 276 (Shown With Hydraulic Power Steering Pump)

Courtesy of MERCEDES-BENZ USA

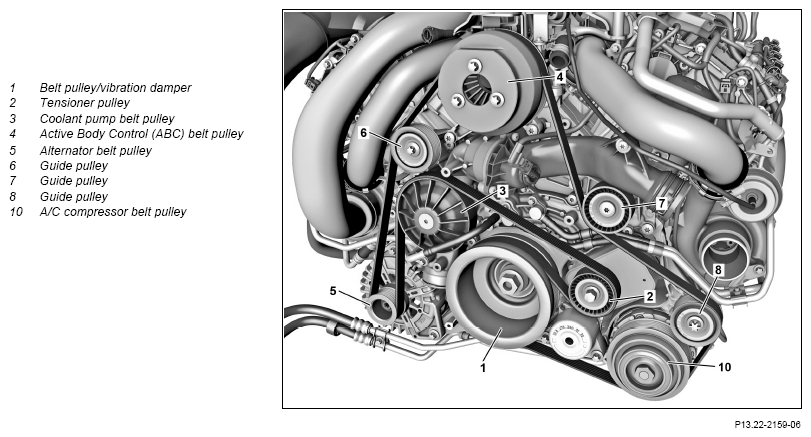

Shown: Engine 157, 278 with code 487 (Active Body Control (ABC))

Courtesy of MERCEDES-BENZ USA

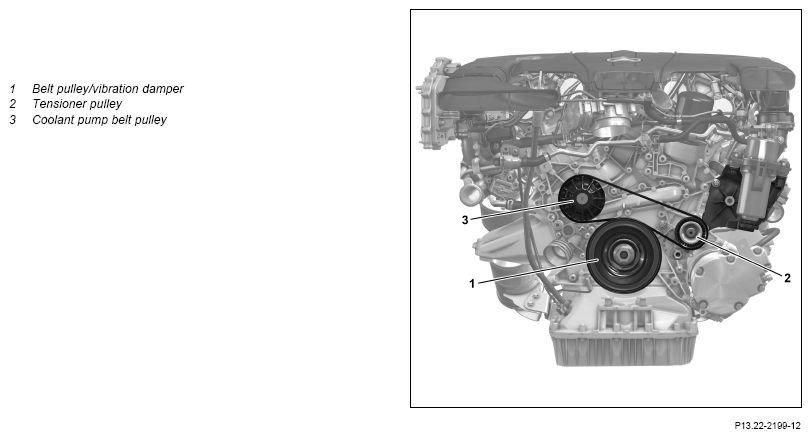

Shown: Engine 157, 278 without code 487 (Active Body Control (ABC))

Courtesy of MERCEDES-BENZ USA

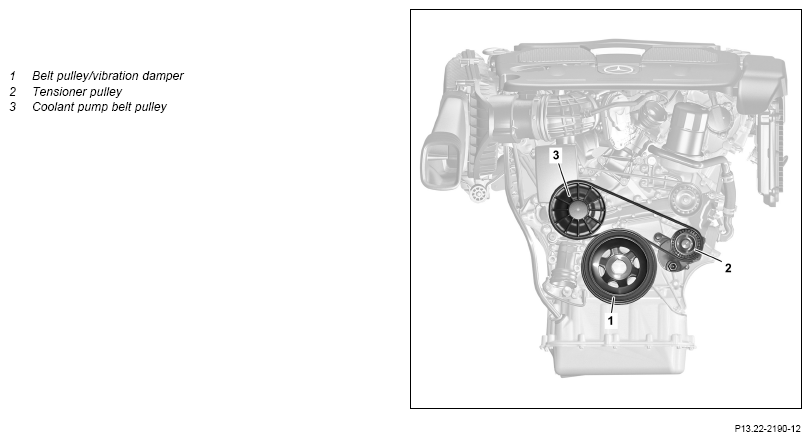

Shown: Engine 157, 278 with code ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN))

Courtesy of MERCEDES-BENZ USA

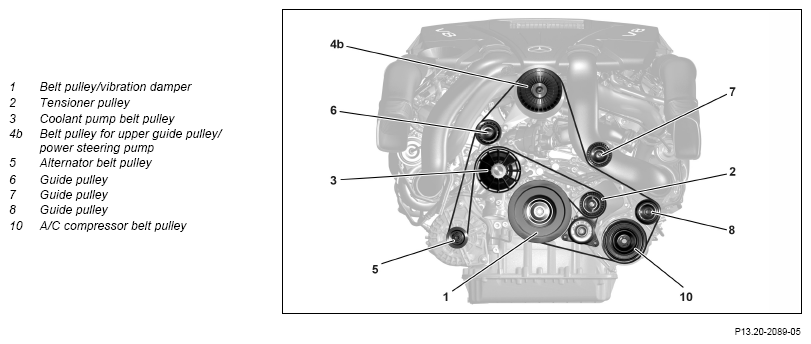

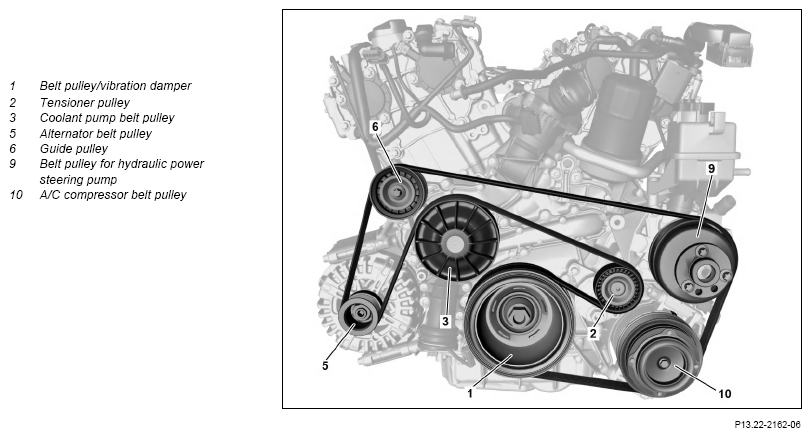

Shown: Engine 276.8 with code 468 (ACTIVE CURVE SYSTEM)

Fig 3: Poly-V Drive Belt Routing Diagram - Engine 276.8 with code 468

Courtesy of MERCEDES-BENZ USA
