Check Visible Area Of Poly-V Belt For Wear - AP13.22-P-1352EW

Model 118 with Engine 260, 282, 608, 654

Model 167 with Engine 264, 654, 656

Model 177 with Engine 260, 282, 608, 654

Model 205 (except 205.047/053/054/147/247/253) with Engine 264, 274, 276, 626, 651, 654

Model 213 (except 213.050/053/054/153/155/253) with Engine 264, 274, 276, 642, 654, 656

Model 217 with Engine 157, 276, 278, 279

Model 222 with Engine 157, 264, 276, 277, 278, 279, 642, 651, 656

Model 231

Model 238 with Engine 264, 274, 276, 642, 654, 656

Model 247 with Engine 260, 282, 608, 654

Model 253 (except 253.353/354/953/954) with Engine 274, 276, 642, 651

Model 257 with Engine 264, 654, 656

Model 463 with Engine 264, 656

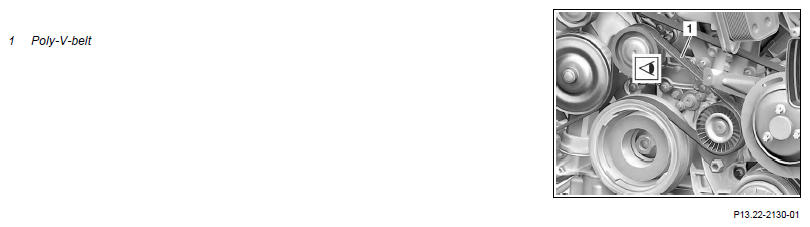

G15359651Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating area of mechanical components when moving components. AS00.00-Z-0009-01A
WARNING Risk of injury  from engine start by remote start function Prior to starting work, open engine hood, do not reach into rotation range or hazard area of freely rotating parts, wear closed and snug-fitting work clothes AS00.00-Z-0024-01A
INSPECT Check
1 Check poly-V-belt (1) from above in visible areas for wear and damage, and compare with damage profiles.   AP13.22-P-1351-01A
    IMPORTANTIf necessary, use commercially available devices/tools.
Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1
If wear or damage is detected,
↓
Replace poly-V-belt (1).
    IMPORTANT After obtaining special order.
REMOVING Remove
2 Remove front engine compartment lining.
REFER TO TESTING & REPAIR   Model 118, 177, 247 with engine 260 except code M016 (Uprated engine)
Model 118, 177, 247 with engine 282		 AR61.20-P-1105MFA
REFER TO TESTING & REPAIR   Model 118, 177, 247 with engine 260 with code M016 (Uprated engine) AR61.20-P-1105MFR
REFER TO TESTING & REPAIR   Model 118 with engine 608, 654
Model 177 with engine 608, 654
Model 247 with engine 608, 654		 AR61.20-P-1105MFE
REFER TO TESTING & REPAIR   Model 167 (except 167.117/317) with engine 264, 654, 656 AR61.20-P-1105ME
REFER TO TESTING & REPAIR   Model 205 (except 205.047/053/054/147/247/253) with engine
264, 274, 276, 626, 651, 654
Model 253 (except 253.353/354/953/954) with
engine 274, 276, 642, 651		 AR61.20-P-1105LW
REFER TO TESTING & REPAIR   Model 213 (except 213.011/050/053/054/153/155/211/216/253) with engine 264, 274, 276, 642, 654, 656 Model 238 with engine 264, 274, 276, 642, 654, 656 AR61.20-P-1105LWE
REFER TO TESTING & REPAIR   Model 217 with engine 157, 276, 278, 279
Model 222 with engine 157, 264, 276, 277, 278, 279, 642, 651, 656		 AR61.20-P-1105LF
REFER TO TESTING & REPAIR   Model 231 AR61.20-P-1105RK
REFER TO TESTING & REPAIR   Model 257 with engine 264, 654, 656 AR61.20-P-1105FR
REFER TO TESTING & REPAIR   Model 463 with engine 264, 656 as of model year 2019 AR61.20-P-1105XG
INSPECT Check
3 Check poly-V-belt (1) in areas visible when vehicle is raised for wear and damage, and compare with damage profiles.   AP13.22-P-1351-01A
    IMPORTANTIf necessary, use commercially available devices/tools.
Swiveling inspection mirror with lighting, comparable to inspection mirror Hazet 1977-1
If wear or damage is detected,
↓
Replace poly-V-belt (1).
    IMPORTANT After obtaining special order.
INSTALLING Install
4 Install front engine compartment lining.
REFER TO TESTING & REPAIR   Model 118, 177, 247 with engine 260 except code M016 (Uprated engine)
Model 118, 177, 247 with engine 282		 AR61.20-P-1105MFA
REFER TO TESTING & REPAIR   Model 118, 177, 247 with engine 260 with code M016 (Uprated engine) AR61.20-P-1105MFR
REFER TO TESTING & REPAIR   Model 118 with engine 608, 654
Model 177 with engine 608, 654
Model 247 with engine 608, 654		 AR61.20-P-1105MFE
REFER TO TESTING & REPAIR   Model 167 (except 167.117/317) with engine 264, 654, 656 AR61.20-P-1105ME
REFER TO TESTING & REPAIR   Model 205 (except 205.013/047/053/054/147/213/247/253) with engine 264, 274, 276, 626, 651, 654
Model 253 (except 253.353/354/953/954) with engine 274, 276, 642, 651		 AR61.20-P-1105LW
REFER TO TESTING & REPAIR   Model 213 (except
213.011/016/050/053/054/153/155/211/216/253) with engine 264, 274, 276, 642, 654, 656
Model 238 with engine 264, 274, 276, 642, 654, 656		 AR61.20-P-1105LWE
REFER TO TESTING & REPAIR   Model 217 with engine 157, 276, 278, 279 Model 222 with engine 157, 264, 276, 277, 278, 279, 642, 651, 656 AR61.20-P-1105LF
REFER TO TESTING & REPAIR   Model 231 AR61.20-P-1105RK
REFER TO TESTING & REPAIR   Model 257 with engine 264, 654, 656 AR61.20-P-1105FR
REFER TO TESTING & REPAIR   Model 463 with engine 264, 656 as of model year 2019 AR61.20-P-1105XG
