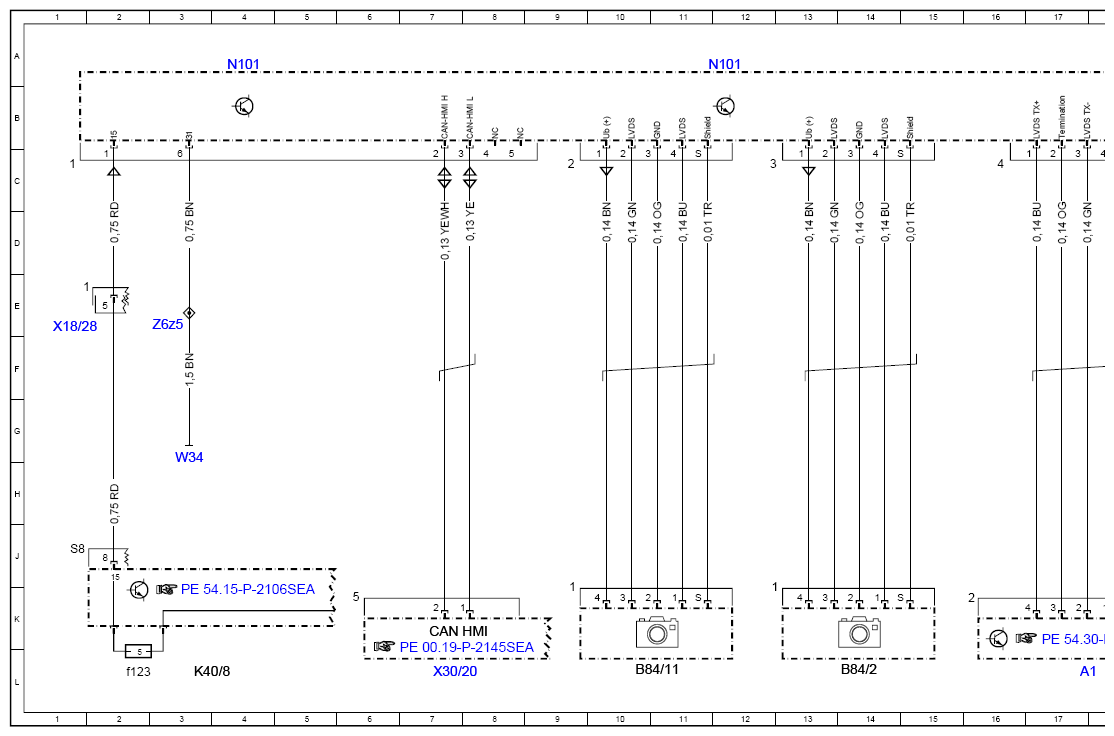

Wiring Diagram, Night View Assist Control Unit - PE54.30-P-2103-97SEA
Model 217 up to model year 2018 with code 610 (Night view assist) Control unit N101
Model 222 up to model year 2018 with code 610 (Night view assist) Control unit N101
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A1 | Instrument cluster | 17L |
| B84/11 | Night View Assist infrared camera 2 | 10L |
| B84/2 | Night View Assist infrared camera 1 | 14L |
| CAN HMI | User interface CAN | 7K |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f123 | Fuse 123 | 2L |
| N101 | Night View Assist control unit | 4A |
| N101 | Night View Assist control unit | 12A |
| N101 | Night View Assist control unit | 19A |
| W34 | Left footwell ground point | 3G |
| X18/28 | Left cockpit/engine compartment electrical connector | 1E |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 7L |
| Z6z5 | Circuit 31 connector sleeve | 3E |
