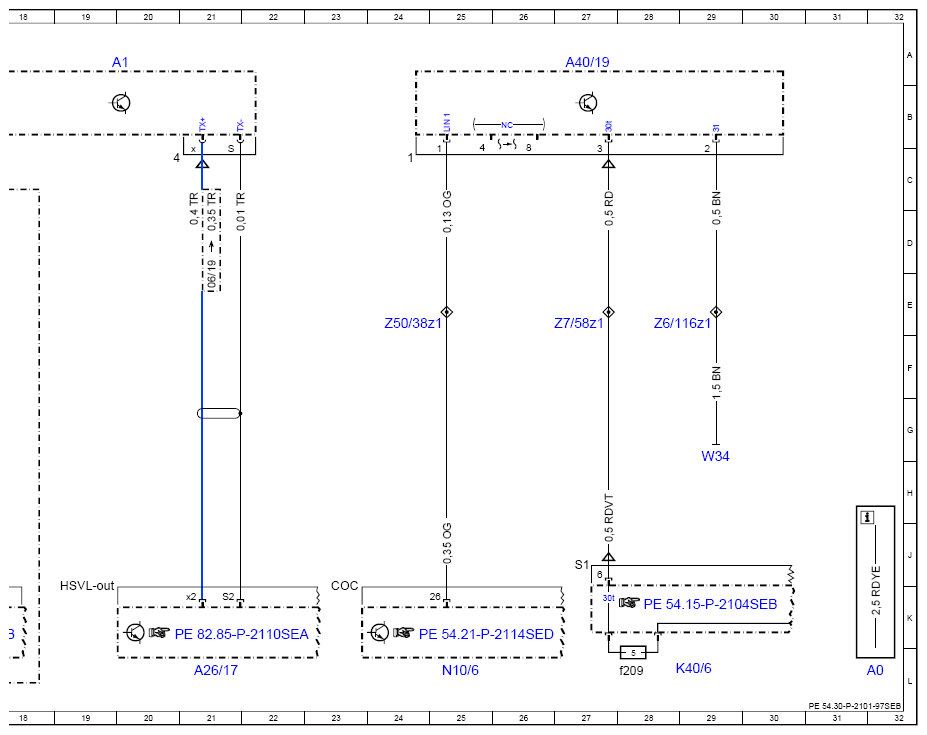

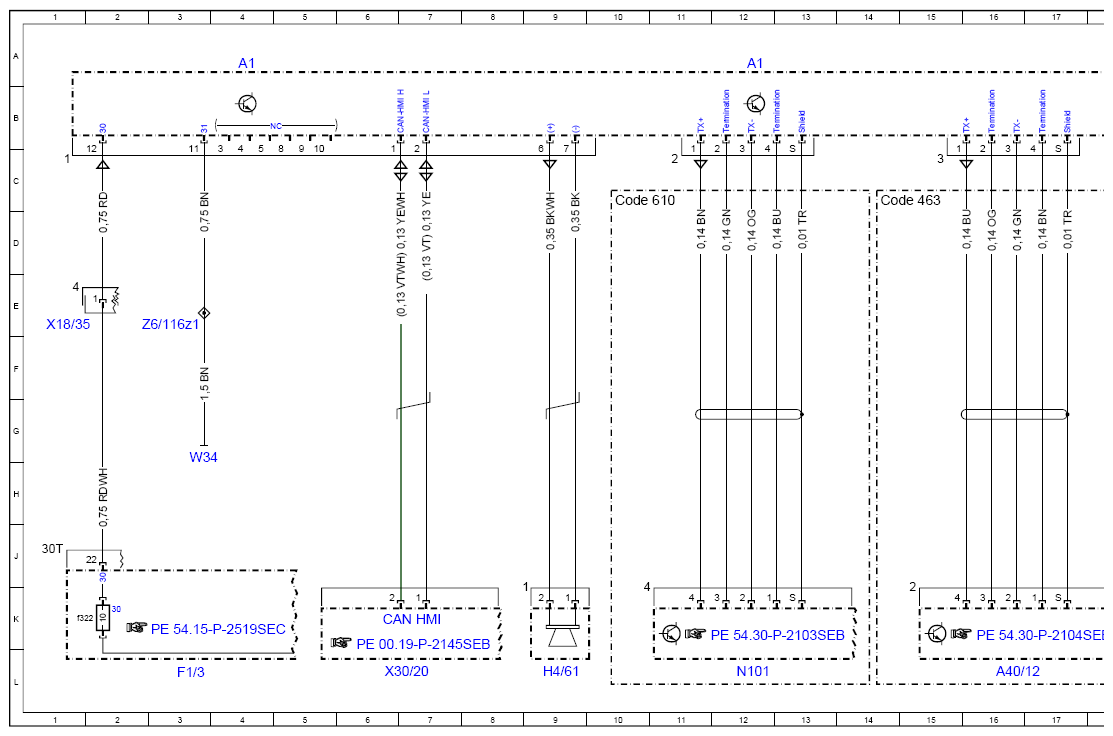

Wiring Diagram For Instrument Cluster (IC) Control Unit - PE54.30-P-2101-97SEB
Model 217, 222 as of model year 2018 Instrument clusterA1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A1 | Instrument cluster | 4A |
| A1 | Instrument cluster | 12A |
| A1 | Instrument cluster | 19A |
| A26/17 | Head unit | 21L |
| A40/12 | Head-up display | 16L |
| A40/19 | Center instrument panel display section | 27A |
| CAN HMI | User interface CAN | 7K |
| Code 463 | Head-up display | 14C |
| Code 610 | Night View Assist | 10C |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3f322 | Fuse 322 | 1K |
| H4/61 | Instrument cluster speaker | 9L |
| K40/6 | Driver-side fuse and relay module | 29L |
| K40/6f209 | Fuse 209 | 28L |
| N10/6 | Front SAM control unit | 25L |
| N101 | Night View Assist control unit | 12L |
| W34 | Left footwell ground point | 3H |
| W34 | Left footwell ground point | 29H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 1E |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 6L |
| Z50/38z1 | Instrument panel LIN connector sleeve | 24E |
| Z6/116z1 | Circuit 31 connector sleeve | 3E |
| Z6/116z1 | Circuit 31 connector sleeve | 29E |
| Z7/58z1 | Tml. 30 connector sleeve | 27E |
