Wiring Diagram Of Fuse Box I, Right Rear Wheel Arch - PE54.15-P-2110-97SEA

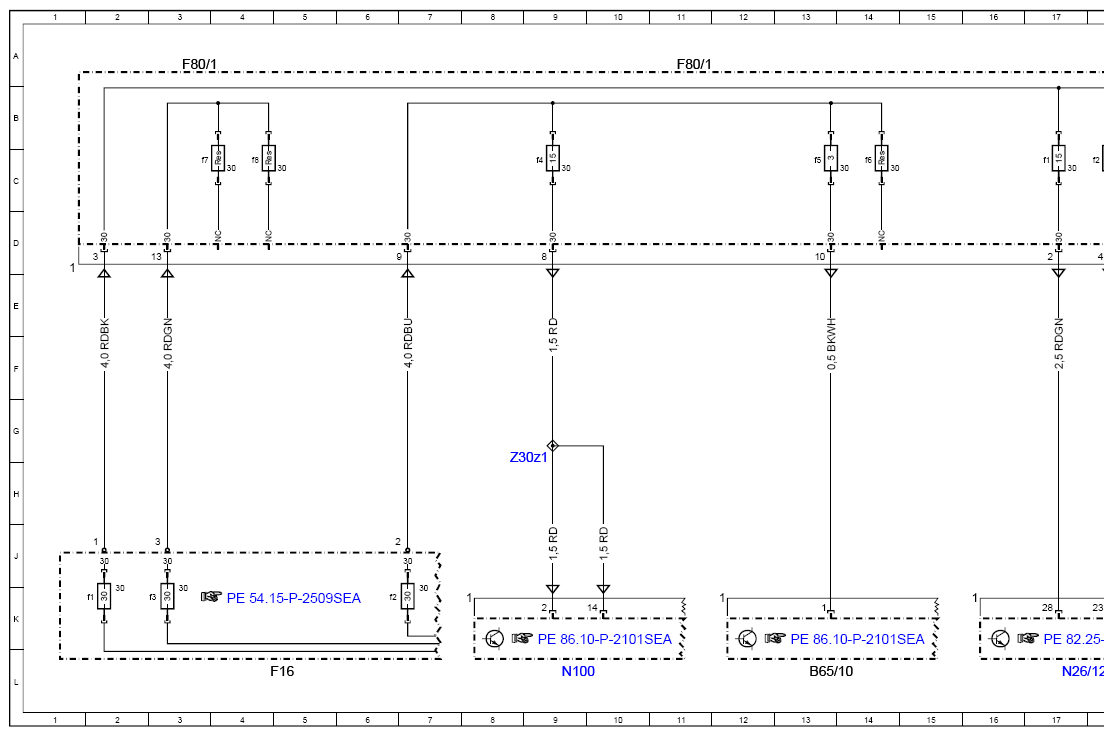

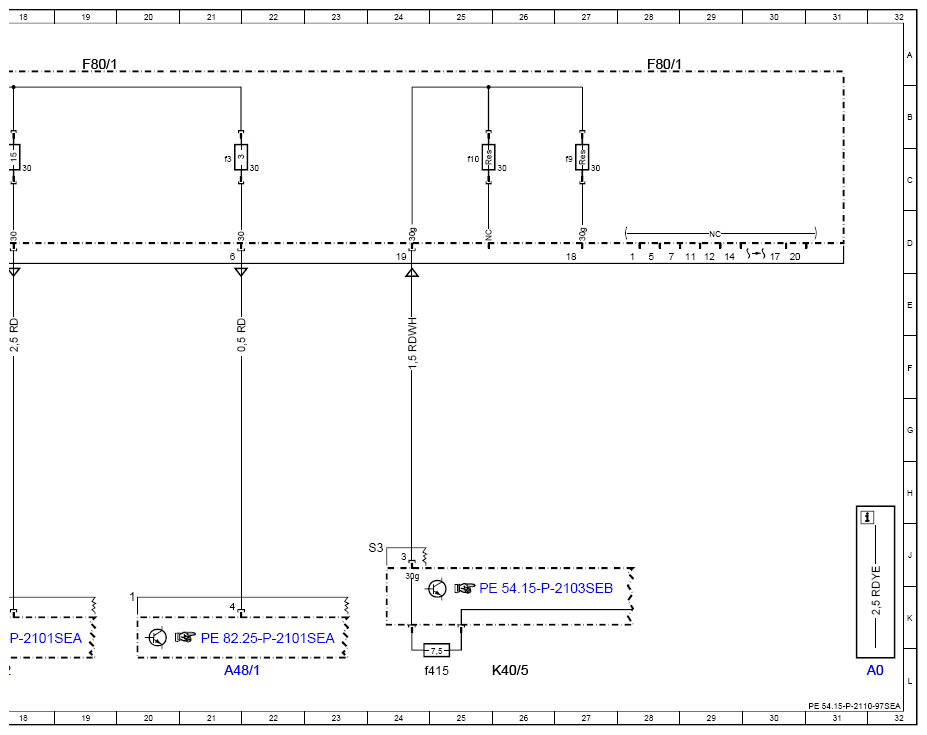

Model 222 up to model year 2018 with code Z07 (B7 armoring on special protection version) Fuse block F80/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A48/1 | Special signal system operating unit | 21L |
| B65/10 | - | 13L |
| F16 | Special protection vehicles fuse box | 5L |
| F16f1 | Fuse 1 | 2K |
| F16f2 | Fuse 2 | 6K |
| F16f3 | Fuse 3 | 3K |
| F80/1 | Special-purpose vehicle fuse block 1 | 3A |
| F80/1 | Special-purpose vehicle fuse block 1 | 11A |
| F80/1 | Special-purpose vehicle fuse block 1 | 19A |
| F80/1 | Special-purpose vehicle fuse block 1 | 28A |
| F80/1f1 | Fuse 1 | 17C |
| F80/1f10 | Fuse 10 | 25C |
| F80/1f2 | Fuse 2 | 18C |
| F80/1f3 | Fuse 3 | 21C |
| F80/1f4 | Fuse 4 | 9C |
| F80/1f5 | Fuse 5 | 13C |
| F80/1f6 | Fuse 6 | 14C |
| F80/1f7 | Fuse 7 | 3C |
| F80/1f8 | Fuse 8 | 4C |
| F80/1f9 | Fuse 9 | 27C |
| K40/5 | Rear fuse and relay module | 26L |
| K40/5f415 | Fuse 415 | 25L |
| N100 | Fire extinguishing system and emergency fresh air system control unit | 9L |
| N26/12 | PAS [GAS] and special signal system control unit | 17L |
| Z30z1 | Tml. 30 connector sleeve | 9G |
