Check Propeller Shaft Flex Disks For Signs Of Damage And Deformation - AP41.10-P-4152HA
Model 217, 222

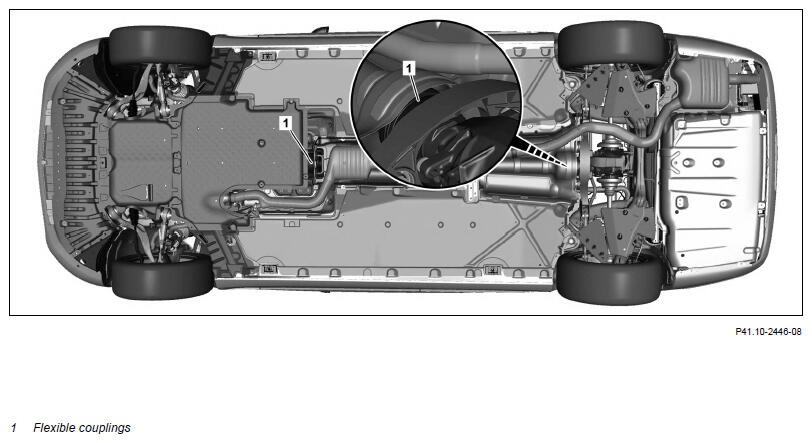

Shown on model 222.159
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Preparatory activity | |||
| 1 | Lift vehicle on vehicle lift | ||
| AR00.60-P-1000LF | |||
| Check | |||
| 2 | Check flexible couplings (1) for cracking, wear damage and deformation | If a problem arises ↓ Rectify problem subject to separate repair order. |
|
| Finishing activity | |||
| 3 | Lower vehicle with lifting platform | ||
| AR00.60-P-1000LF |
