Remove Inner C-Pillar Side Wall - Ar63.10-P-0700-01LF

Model 222

except code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

Shown on model 222.0

1. Model 222.0/1

   except code Z07 (B7 armoring on special protection version)

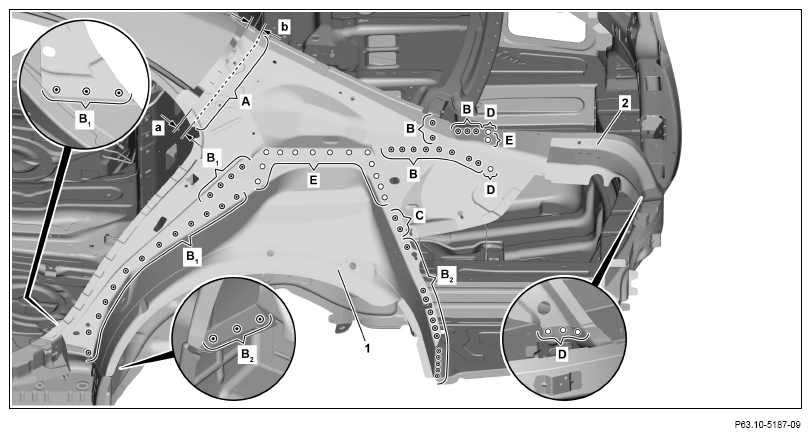

   Mark separating point on Inner C-pillar side wall (1) and cut (area A).

   Dimensions  :

   a = approx 20 mm

   b = approx. 50 mm

2. Model 222.0/1

   except code Z07 (B7 armoring on special protection version)

   Expose spot welds on inner C-pillar side wall (1) and cut out (areas B₁ ).

   Cut out spot welds through two panel thicknesses (areas B₁ ).

3. Expose spot welds on inner C-pillar side wall (1) and cut out (areas B, B₂ and C).

   Cut out spot welds through two panel thicknesses (areas B, B₂ and C).

4. Expose self-piercing riveting on inner C-pillar side wall (1) and reinforcement (2) and cut with Ø 6 mm bit (areas D and E).

   The self-piercing riveting can also be separated with a riveter for self-piercing and flow-form rivets (areas D).

   Courtesy of MERCEDES-BENZ USA

   Shown on model 222.9

5. Model 222.9

   except code Z07 (B7 armoring on special protection version)

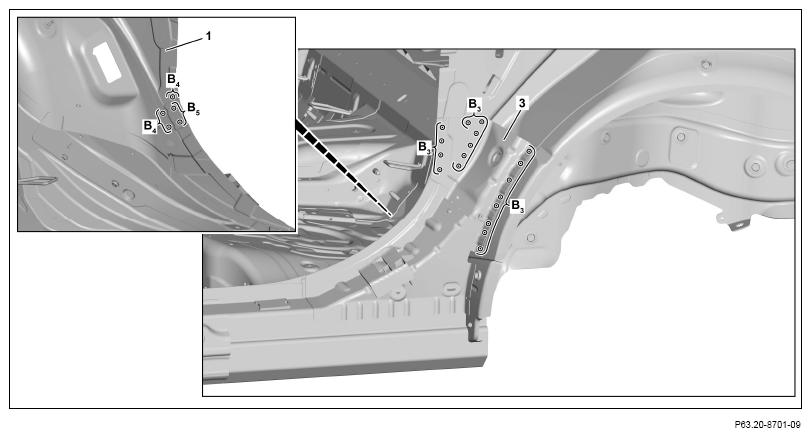

   Expose spot welds on inner lower C-pillar (1) and cut out (areas B₄ and B₅ ).

   Cut out weld spots through two sheet metal thicknesses (area B5).

6. Model 222.9

   except code Z07 (B7 armoring on special protection version)

   Expose spot welds on bottom inner C-pillar reinforcement (3) and cut out (areas B₃ ).

7. Model 222.9

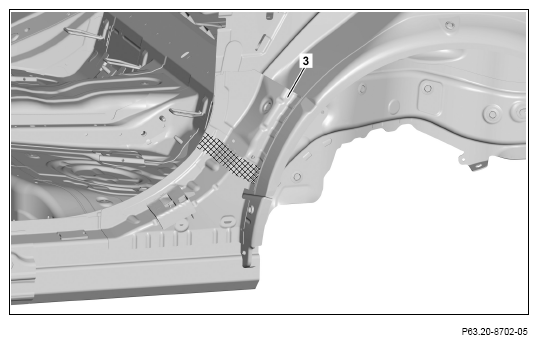

   except code Z07 (B7 armoring on special protection version) Heat bottom inner C-pillar reinforcement (3) om crosshatched areas.

   A foam piece is located in the crosshatched area.

8. Model 222.9

   except code Z07 (B7 armoring on special protection version) Remove bottom inner C-pillar reinforcement (3).

   Shown on model 222.9

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

   Shown on model 222.9

9. Model 222.9

   except code Z07 (B7 armoring on special protection version)

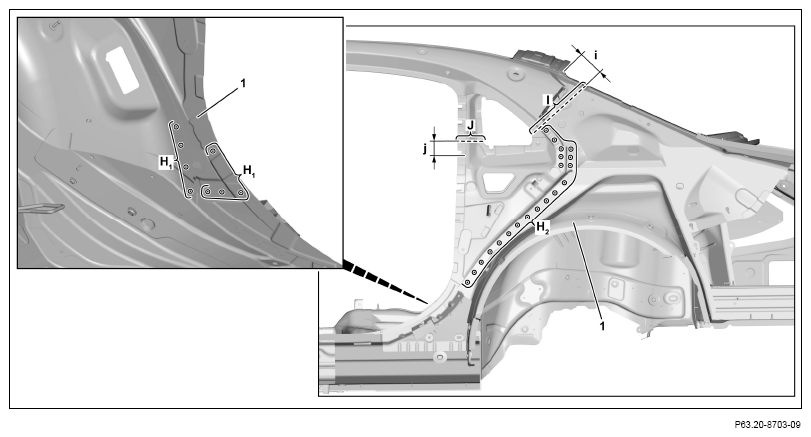

   Mark separating points on inner C-pillar side wall (1) and cut (areas J and I).

   Dimensions  :

   i = approx 60 mm

   j = approx 150 mm

10. Model 222.9

    except code Z07 (B7 armoring on special protection version)

    Expose spot welds on inner C-pillar (1) and cut out (areas H₁ and H₂ ).

    Courtesy of MERCEDES-BENZ USA

    Shown on model 222.0

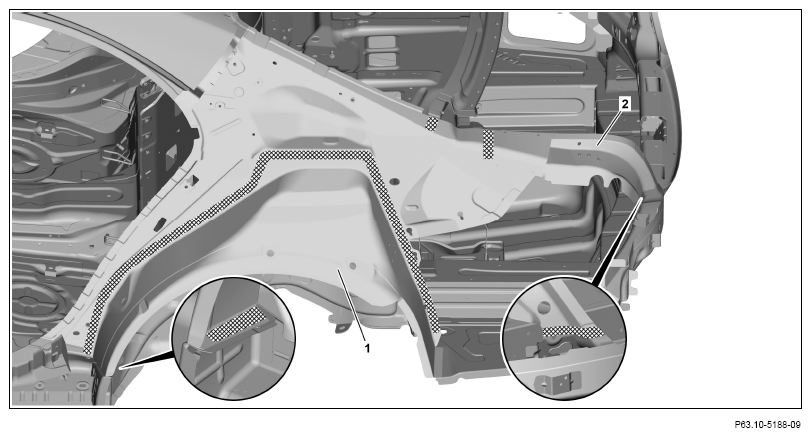

11. Heat inner C-pillar side wall (1) and reinforcement (2) in crosshatched areas.

    Cross-hatched areas are bonded.

12. Remove C-pillar inner side wall (1) and reinforcement (2).
13. Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.

    Sand down spot weld flanges to bare metal on both sides.

14. Remove grinding dust and drill chips.

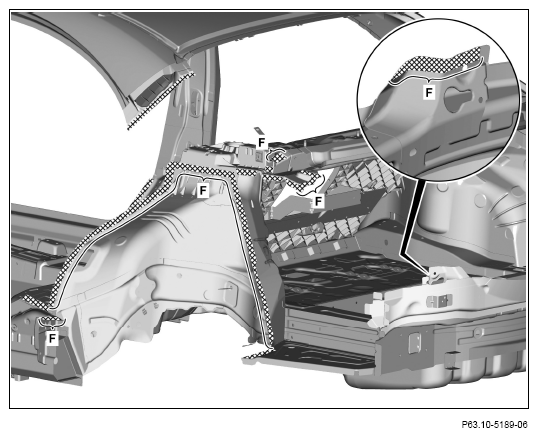

15. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust (areas F).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.

    Shown on model 222.0
