Prepare C-Pillar For Installation - Ar63.20-P-0500-02LF

Model 222

except code Z07 (B7 armoring on special protection version)

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

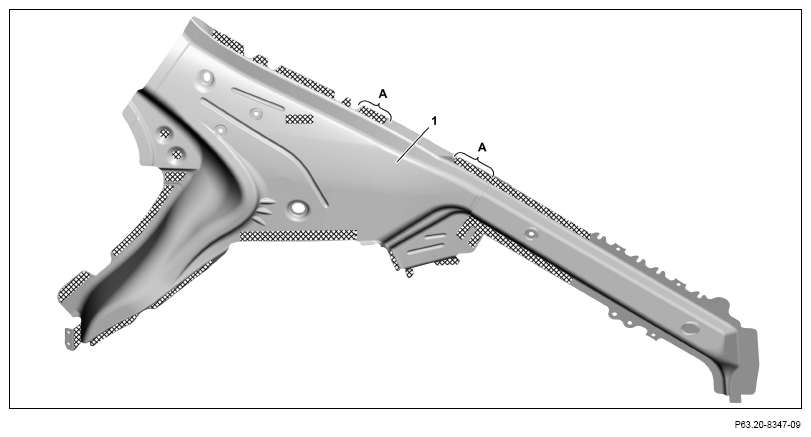

1. Model 222.0/1

   except code Z07 (B7 armoring on special protection version)

   Grind mating surfaces on C-pillar (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Model 222.0/1

   except code Z07 (B7 armoring on special protection version)

   Remove grinding dust

3. Model 222.0/1

   except code Z07 (B7 armoring on special protection version)

   Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (areas A).

   Otherwise adhesion problems may occur.

   Observe pretreatment of bonding surfaces.

4. Model 222.0/1

   except code Z07 (B7 armoring on special protection version) Grind mating surfaces on C-pillar (1) down to bare metal in crosshatched areas.

   Observe pretreatment of bonding surfaces.

5. Model 222.0/1

   except code Z07 (B7 armoring on special protection version) Remove grinding dust.

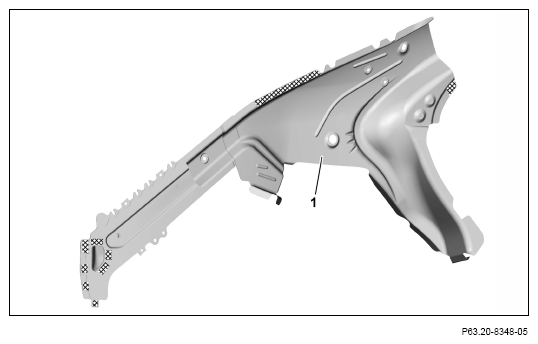

   C-pillar (1) inside

   Courtesy of MERCEDES-BENZ USA

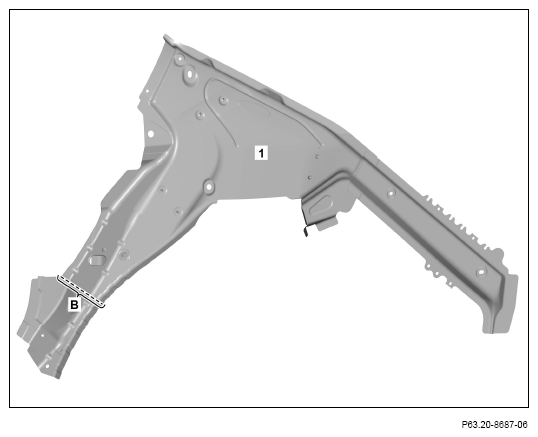

6. Model 222.9

   except code Z07 (B7 armoring on special protection version)

   Mark separating point on C-pillar (1) and cut (area B).

   Take separation points from vehicle.

   Courtesy of MERCEDES-BENZ USA

7. Model 222.9

   except code Z07 (B7 armoring on special protection version) Grind mating surfaces on C-pillar (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

8. Model 222.9

   except code Z07 (B7 armoring on special protection version) Remove grinding dust.

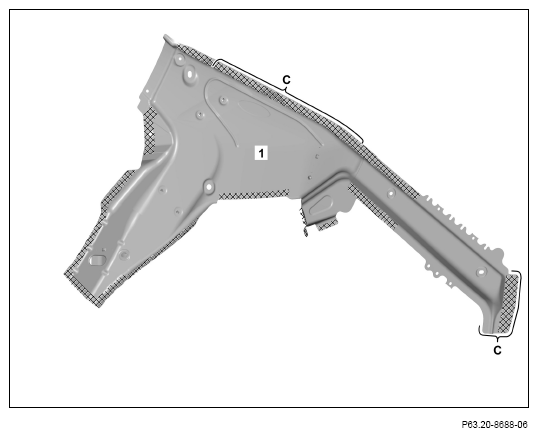

9. Model 222.9

   except code Z07 (B7 armoring on special protection version) Coat insides of spot weld flanges with zinc dust paint.

   Do not coat bonding surfaces with zinc dust paint (areas C).

   Otherwise adhesion problems may occur.

   Bonding surfaces (areas C) are at rear.

   Observe pretreatment of bonding surfaces.

Courtesy of MERCEDES-BENZ USA
