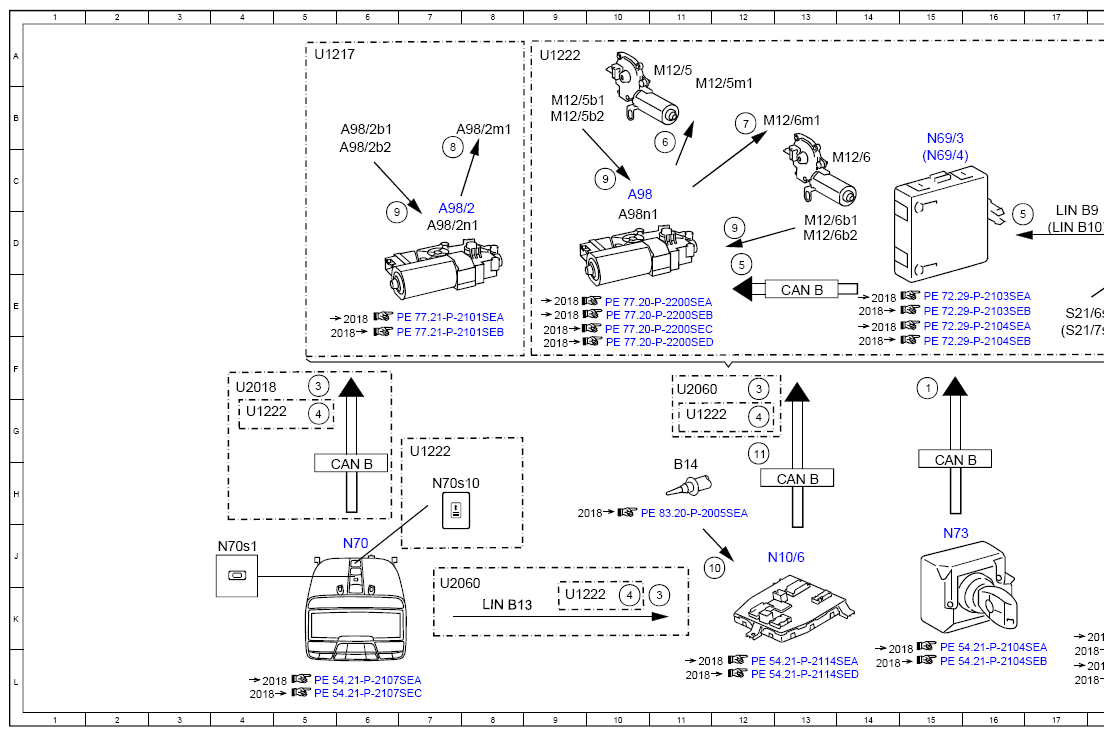

Electrical Function Schematic For Panoramic Roof Roller Sun Blind - PE77.20-P-2053-97SEA
Model 217.3
Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
Model 222 with code 413 (Automatic panoramic sliding sunroof
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 15F |
| 10 | Outside temperature sensor, signal | 11J |
| 11 | Outside temperature, signal | 12G |
| 2 | Main locking position microswitch, status | 18F |
| 3 | Roof system switch, status | 11K |
| 3 | Roof system switch, status | 5F |
| 3 | Roof system switch, status | 12F |
| 4 | Rear roller sun blind switch, status | 5G |
| 4 | Rear roller sun blind switch, status | 10J |
| 4 | Rear roller sun blind switch, status | 12G |
| 5 | Panoramic sliding sunroof roller sun blind switch, status | 12D |
| 5 | Panoramic sliding sunroof roller sun blind switch, status | 16D |
| 6 | Front panoramic sliding sunroof roller sun blind motor, actuation | 11B |
| 7 | Rear panoramic sliding sunroof roller sun blind motor, actuation | 12B |
| 8 | Panoramic roof roller sun blind motor, actuation | 7B |
| 9 | Hall sensors, signal | 10C |
| 9 | Hall sensors, signal | 12D |
| 9 | Hall sensors, signal | 6D |
| A98 | Panoramic sliding roof control module | 10C |
| A98/2 | Panoramic roof roller sun blind control module | 7D |
| A98/2b1 | Hall sensor 1, panoramic roof roller sun blind | 6B |
| A98/2b2 | Hall sensor 2, panoramic roof roller sun blind | 6C |
| A98/2m1 | Panoramic roof roller sun blind motor | 7B |
| A98/2n1 | Panoramic roof roller sun blind control unit | 7D |
| A98n1 | Panoramic sliding roof control unit | 10D |
| B14 | Outside temperature sensor | 11H |
| CAN B | Interior CAN | 19G |
| CAN B | Interior CAN | 13E |
| CAN B | Interior CAN | 15H |
| CAN B | Interior CAN | 13H |
| CAN B | Interior CAN | 6H |
| LIN B10 | Right rear door LIN | 17D |
| LIN B13 | Roof LIN | 8K |
| LIN B9 | Left rear door LIN | 17D |
| M12/5 | Front panoramic sliding sunroof roller sun blind drive unit | 11A |
| M12/5b1 | Hall sensor 1, front panoramic sliding sunroof roller sun blind | 9B |
| M12/5b2 | Hall sensor 2, front panoramic sliding sunroof roller sun blind | 9B |
| M12/5m1 | Front panoramic sliding sunroof roller sun blind motor | 11B |
| M12/6 | Rear panoramic sliding sunroof roller sun blind drive unit | 14C |
| Ml2/6b1 | Hall sensor 1, rear panoramic sliding sunroof roller sun blind | 13D |
| M12/6b2 | Hall sensor 2, rear panoramic sliding sunroof roller sun blind | 13D |
| M12/6m1 | Rear panoramic sliding sunroof roller sun blind motor | 13B |
| N10/6 | Front SAM control unit | 13J |
| N69/1 | Left front door control unit | 19H |
| N69/2 | Right front door control unit | 19H |
| N69/3 | Left rear door control unit | 15B |
| N69/4 | Right rear door control unit | 15C |
| N70 | Overhead control panel control unit | 6J |
| N70s1 | Roof switch | 4J |
| N70s10 | Rear roller sun blind switch | 7H |
| N73 | Electronic ignition switch control unit | 15J |
| S21/6 | Left rear door switch group | 18C |
| S21/6s4 | Panoramic sliding sunroof roller sun blind switch | 17E |
| S21/7 | Right rear door switch group | 18C |
| S21/7s4 | Panoramic sliding sunroof roller sun blind switch | 17E |
| U1217 | Valid for model series 217 | 5A |
| U1222 | Valid for model series 222 | 9A |
| U1222 | Valid for model series 222 | 7G |
| U1222 | Valid for model series 222 | 9K |
| U1222 | Valid for model series 222 | 4G |
| U1222 | Valid for model series 222 | 11G |
| U2018 | Valid as of model year 2018 | 4F |
| U2060 | Valid up to model year 2018 | 7K |
| U2060 | Valid up to model year 2018 | 11F |
