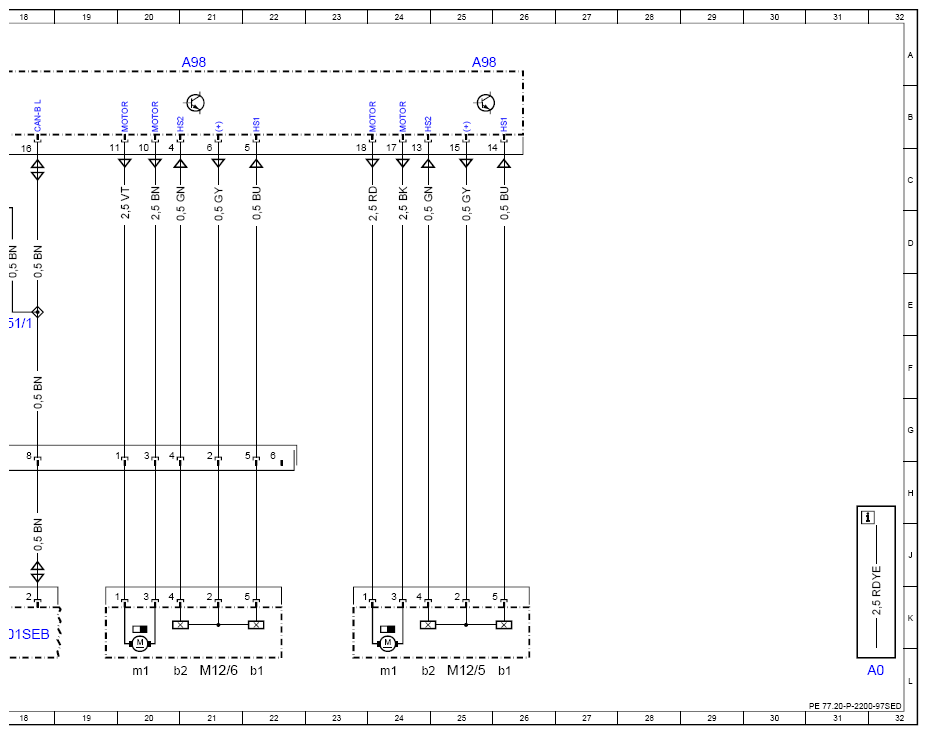

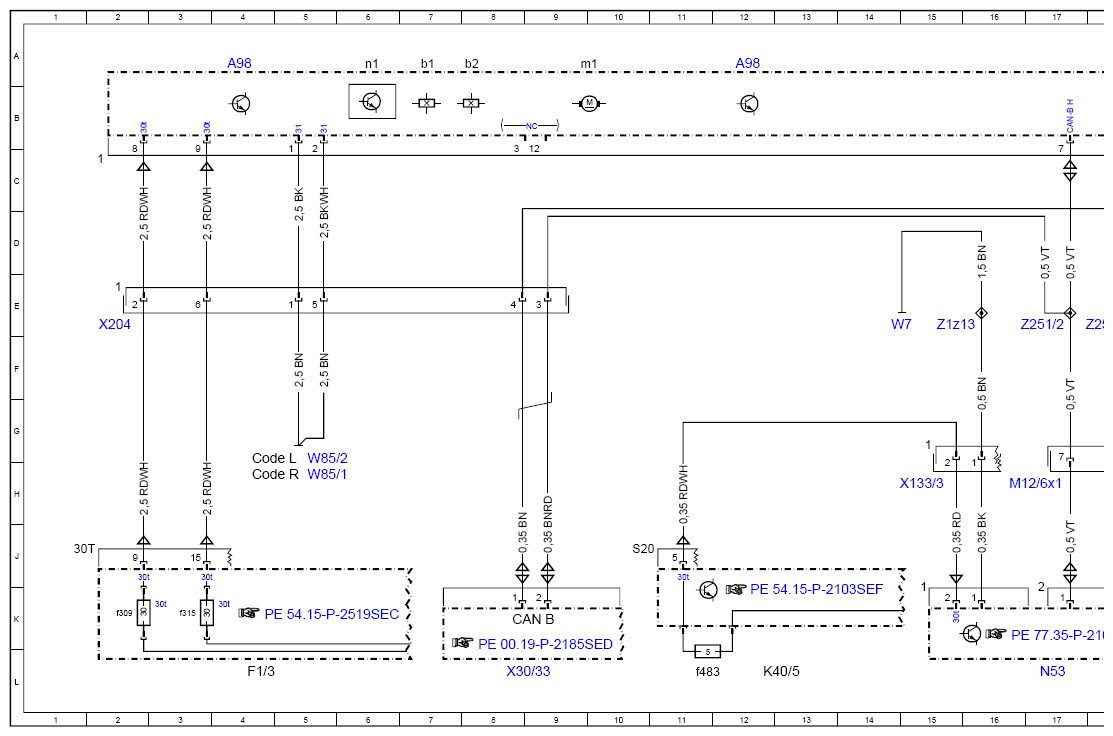

Electric Wiring Diagram For Panoramic Sliding Roof - PE77.20-P-2200-97SED
Model 222 as of model year 2018
with code 398 (Panoramic roof with MAGIC SKY CONTROL)
except code 413 (Automatic panoramic sliding sunroof)
Control unit A98
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| A98 | Panoramic sliding roof control module | 4A |
| A98 | Panoramic sliding roof control module | 12A |
| A98 | Panoramic sliding roof control module | 21A |
| A98 | Panoramic sliding roof control module | 25A |
| A98b1 | Hall sensor 1, panoramic sliding roof | 7A |
| A98b2 | Hall sensor 2, panoramic sliding roof | 8A |
| A98m1 | Panoramic sliding roof motor | 9A |
| A98n1 | Panoramic sliding roof control unit | 6A |
| CAN B | Interior CAN | 9K |
| Code L | LEFT-HAND DRIVE | 4H |
| Code R | RIGHT-HAND DRIVE | 4H |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3f309 | Fuse 309 | 2K |
| F1/3f315 | Fuse 315 | 3K |
| K40/5 | Rear fuse and relay module | 12L |
| K40/5f483 | Fuse 483 | 11L |
| M12/5 | Front panoramic sliding sunroof roller sun blind drive unit | 25L |
| M12/5b1 | Hall sensor 1, front panoramic sliding sunroof roller sun blind | 26L |
| M12/5b2 | Hall sensor 2, front panoramic sliding sunroof roller sun blind | 24L |
| M12/5m1 | Front panoramic sliding sunroof roller sun blind motor | 24L |
| M12/6 | Rear panoramic sliding sunroof roller sun blind drive unit | 21L |
| M12/6b1 | Hall sensor 1, rear panoramic sliding sunroof roller sun blind | 22L |
| M12/6b2 | Hall sensor 2, rear panoramic sliding sunroof roller sun blind | 20L |
| M12/6m1 | Rear panoramic sliding sunroof roller sun blind motor | 20L |
| M12/6x1 | Rear panoramic sliding sunroof roller sun blind drive unit electrical connector | 17H |
| N53 | MAGIC SKY CONTROL, control unit | 17L |
| W7 | Right wheelhouse trunk ground point | 14E |
| W85/1 | Driver footwell frame floor assembly ground point | 5H |
| W85/2 | Front passenger footwell frame floor assembly ground point | 5H |
| X133/3 | MAGIC SKY CONTROL electrical connector | 15H |
| X204 | Panoramic sliding roof electrical connector | 2E |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 8L |
| Z1z13 | Circuit 31 connector sleeve | 15E |
| Z251/1 | MAGIC SKY CONTROL connector sleeve (CAN B low) | 18E |
| Z251/2 | MAGIC SKY CONTROL connector sleeve (CAN B high) | 17E |
