Replace Shock Absorber Mount On Lower Wishbone - AR32.25-P-0107GZ

Model 164, 166, 292

Front axle

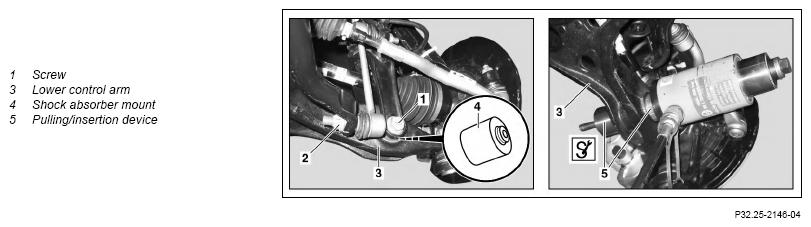

Fig 1: Shock Absorber Mount On Lower Wishbone Components Location - Model 166 Front Axle

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100GZ
2	Empty AIRmatic using diagnostic system	Model 164, 166, 292 with code 489 (AIRMATIC)Front axle
			AD00.00-P-2000-04A
		Empty and fill the AIRmatic as per the specifications; the complete wheels must not be touching the ground. The air springs can otherwise be damaged and fail later.
3	Detach torsion bar linkage from torsion bar	Detach the torsion bar linkage carefully. The torsion bar is under tension.
		Model 164.1/8Nut, torsion bar linkage to torsion bar	*BA32.20-P-1004-02L
		Model 166 except code 468 (Active driving stability (stability))	*BA32.20-P-1002-02Q
		Model 166 with code 468 (Active driving stability (stability))
		Model 292 except code 468 (ACTIVE CURVE SYSTEM)
		Model 292 with code 468 (ACTIVE CURVE SYSTEM) Screw/bolt, link rod to torsion bar
4	Relieve threaded connection for shock absorber on lower control arm (3) using telescopic lifter
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
5	Remove screw/bolt (1)	Model 164.1/8Self-locking nut, shock absorber to wishbone	*BA32.25-P-1002-01G
		Model 166, 292Self-locking nut, shock absorber to wishbone	*BA32.25-P-1002-01O
6	Detach steering knuckle from upper transverse control arm	Model 166, 292Front axle
		Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle	*BA33.20-P-1001-01R
7	Lower the lower control arm (3)
8	Press out shock absorber mount (4) toward front	Do not exceed 140 bar pressure.
		Otherwise the shock absorber mount (4) may be damaged.
		Use separate parts A and E of the pulling/insertion device (5).
		Model 164Front axle
		Installation  : Use separate parts C and D of the pulling/insertion device (5).
		Model 166, 292Front axle
		Installation  : Use the sleeve and separate part C of the pulling/insertion device (5).
		Hand pump	Fig 5
		Hydraulic hose (complete)	Fig 3
		Threaded spindle	Fig 2
		Hollow cylinder	Fig 6
		Extraction/insertion tool	Fig 7
		Model 166, 292Vorderachse Sleeve	Fig 4
9	Install in the reverse order

FRONT AXLE TORSION BAR

Number	Designation			Model 166 except code 468 (ACTIVE CURVE SYSTEM)	Model 166 with code 468 (ACTIVE CURVE SYSTEM)
BA32.20-P-1002-02Q	Screw/bolt, link rod to torsion bar	Stage 1	Nm	80	80
		Stage 2	∠°	90	90

FRONT AXLE TORSION BAR

Number	Designation			Model 292 except code 468 (ACTIVE CURVE SYSTEM)	Model 292 with code 468 (ACTIVE CURVE SYSTEM)
BA32.20-P-1002-02Q	Screw/bolt, link rod to torsion bar	Stage 1	Nm	80	80
		Stage 2	∠°	90	90

FRONT AXLE TORSION BAR

Number	Designation				Model 164.1/8
BA32.20-P-1004-02L	Nut, torsion bar linkage to torsion bar	Stage 1		Nm	100
		Stage 2:	Loosen	∠°	180
		Stage 3		Nm	120
		Stage 4		∠°	45

FRONT AXLE SHOCK ABSORBER

Number	Designation		Model 164.1/8
BA32.25-P-1002-01G	Self-locking nut, shock absorber to wishbone	Nm	265

FRONT AXLE SHOCK ABSORBER

Number	Designation			Model 166	Model 292
BA32.25-P-1002-01O	Self-locking nut, shock absorber to wishbone	Stage 1	Nm	100	100
		Stage 2	∠°	180	180

WHEEL CONTROL, HUB

Number	Designation			Model 166	Model 292
BA33.20-P-1001-01R	Self-locking nut, upper ball joint out of upper transverse control arm to steering knuckle	Stage 1	Nm	100	100
		Stage 2	∠°	45	45
