Remove/Install Vent Valve On Front Stabilizer Bar Actuator - AR32.20-P-0301GQ
Model 166 (except 166.074/075/874/875)
with code 468 (ACTIVE CURVE SYSTEM)
Model 292 (except 292.364/374/375)
with code 468 (ACTIVE CURVE SYSTEM)

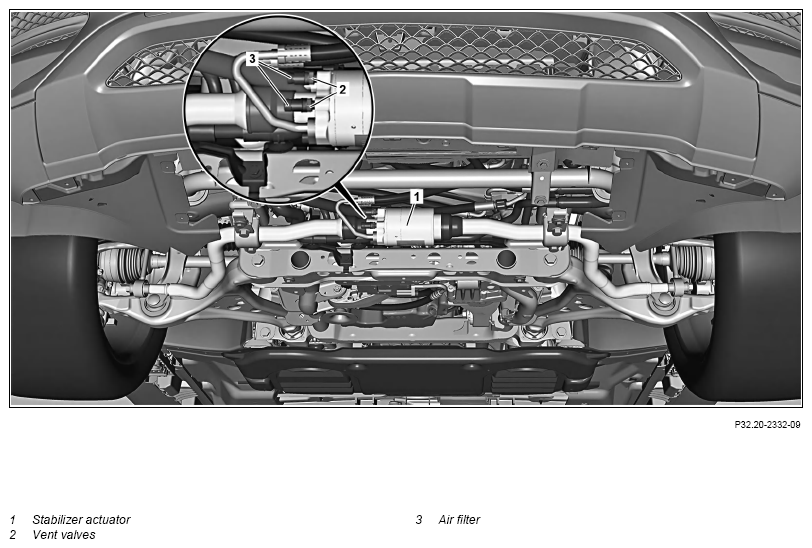

Fig 1: Vent Valve On Front Stabilizer Bar Actuator Components Location - Model 166 (Except 166.074/075/874/875) With Code 468
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A | |
| Notes on active roll stabilization | AH32.34-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 2 | Lift vehicle on vehicle lift | AR00.60-P-1000GZ | |
| 3 | Remove center underfloor paneling | AR61.30-P-1001GQ | |
| 4 | Remove air filter (3) from bleed valve (2) | ||
| 5 | Unscrew bleed valves (2) from stabilizer actuator (1) | In order to avoid consequential damage. |
*BA32.20-P-1004-02Q |
| 6 | Seal openings with stop plugs | Fig 2 | |
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Correct fill level | Only when fill level is not level with the Max marking. | AR32.34-P-0021GQ |
| Initial startup | |||
| 9 | Bleed ACTIVE CURVE SYSTEM | AR32.34-P-0021GQ |
FRONT AXLE TORSION BAR
| Number | Designation | Model 166 with code 468 (ACTIVE CURVE SYSTEM) | Model 292 with code 468 (ACTIVE CURVE SYSTEM) | |
|---|---|---|---|---|
| BA32.20-P-1004-02Q | Bleed valve to stabilizer actuator | Nm | 16 | 16 |
