Remove/Install Rear Shock Absorber - AR32.25-P-0110GQX
Model 166, 292
Shown on model 166.873
Shown on model 166.873
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove side paneling in trunk | Model 166.0 | AR68.30-P-4800GQ |
| Model 166.8 | AR68.30-P-4800GQX | ||
| Model 292 | AR68.30-P-4800GQC | ||
| 2 | Remove bolt from rear end center assembly lining | Model 292 | |
| 3 | Unclip and remove rear end center assembly lining | Model 292 | |

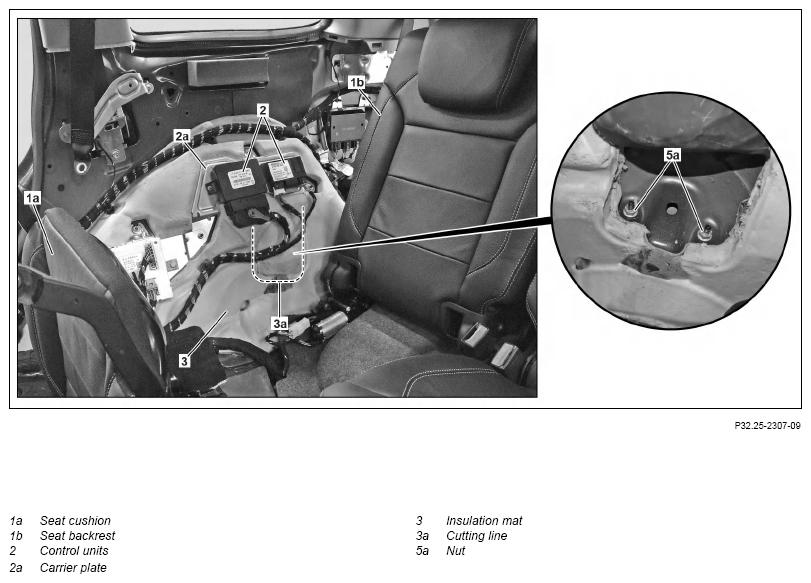

| 4 | Remove seat cushion (1a) of backrest (1b) in 3rd seat row and fold forward | Model 166.8 | |
| *BA91.12-P-1004-03F | |||
| 5 | Remove control units (2) with connected lines from carrier plate (2a) and place to one side | Model 166.8 | |
| 6 | Cut insulation mat (3) along the marked cutting line (3a) and fold up | ||
Otherwise the paint or the insulation mat (3) may get damaged. |
|||
Otherwise, proper operation can no longer be guaranteed. |
|||
| 7 | Secure vehicle on vehicle lift | AR00.60-P-0100GZ | |
| 8 | Detach rear complete wheel | ||
| Model 166 | AP40.10-P-4050EW | ||
| Model 292 | AR40.10-P-1100GQC | ||
| 9 | Remove fender liner in the rear fender | AR88.10-P-1400GQ | |

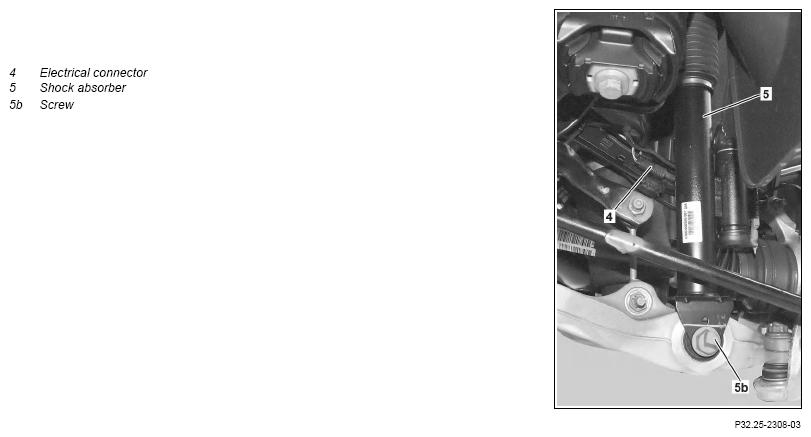

| 10 | Release and disconnect electrical connection (4) | Model 166, 292 with code 489 (AIRMATIC) | |
| 11 | Raise wheel suspension slightly at supporting joint | ||
| 000 588 10 62 00 Support plate | WS26.00-P-3309B | ||
| 000 588 11 62 00 Major assembly mount | WS01.00-P-0092B | ||
Otherwise the steel spring may come out or the air spring can be damaged. |
|||
| 12 | Unscrew nuts (5a) | *BA32.25-P-1002-03K | |
| 13 | Remove bolt (5b) | *BA32.25-P-1001-03K | |
| 14 | Slide damper (5) together and remove | ||
| 15 | Install in the reverse order | ||
| Check | |||
| 16 | Check shock absorber (5) | AR32.25-P-0121CW | |
| 17 | Install in the reverse order |
REAR AXLE SHOCK ABSORBER
| Number | Designation | Model 166 except code 489 (AIRMATIC) | Model 166 with code 489 (AIRMATIC) | ||
|---|---|---|---|---|---|
| BA32.25-P-1001-03K | Screw/self-locking nut, shock absorber to spring link | Stage 1 | Nm | 180 | 120 |
| Stage 2 | ∠° | 90 | 90 | ||
REAR AXLE SHOCK ABSORBER
| Number | Designation | Model 292 except code 489 (AIRMATIC) | Model 292 with code 489 (AIRMATIC) | ||
|---|---|---|---|---|---|
| BA32.25-P-1001-03K | Screw/self-locking nut, shock absorber to spring link | Stage 1 | Nm | 180 | 120 |
| Stage 2 | ∠° | 90 | 90 | ||
REAR AXLE SHOCK ABSORBER
| Number | Designation | Model 166 except code 489 (AIRMATIC) | Model 166 with code 489 (AIRMATIC) | ||
|---|---|---|---|---|---|
| BA32.25-P-1002-03K | Bolt/self-locking nut, shock absorber to frame floor assembly | Stage 1 | Nm | 25 | 25 |
| Stage 2 | Nm | 35 | 35 | ||
REAR AXLE SHOCK ABSORBER
| Number | Designation | Model 292 except code 489 (AIRMATIC) | Model 292 with code 489 (AIRMATIC) | ||
|---|---|---|---|---|---|
| BA32.25-P-1002-03K | Bolt/self-locking nut, shock absorber to frame floor assembly | Stage 1 | Nm | 25 | 25 |
| Stage 2 | Nm | 35 | 35 | ||
REAR SEATS
| Number | Designation | Model 166.8 | |
|---|---|---|---|
| BA91.12-P-1004-03F | Screw/bolt, seat cushion to rear seat console | Nm | 25 |
