Overview Of System Components, Instrument Cluster (IC) Component Description - GF54.30-P-9996GN
Model 166
as of model year 2016
Model 292

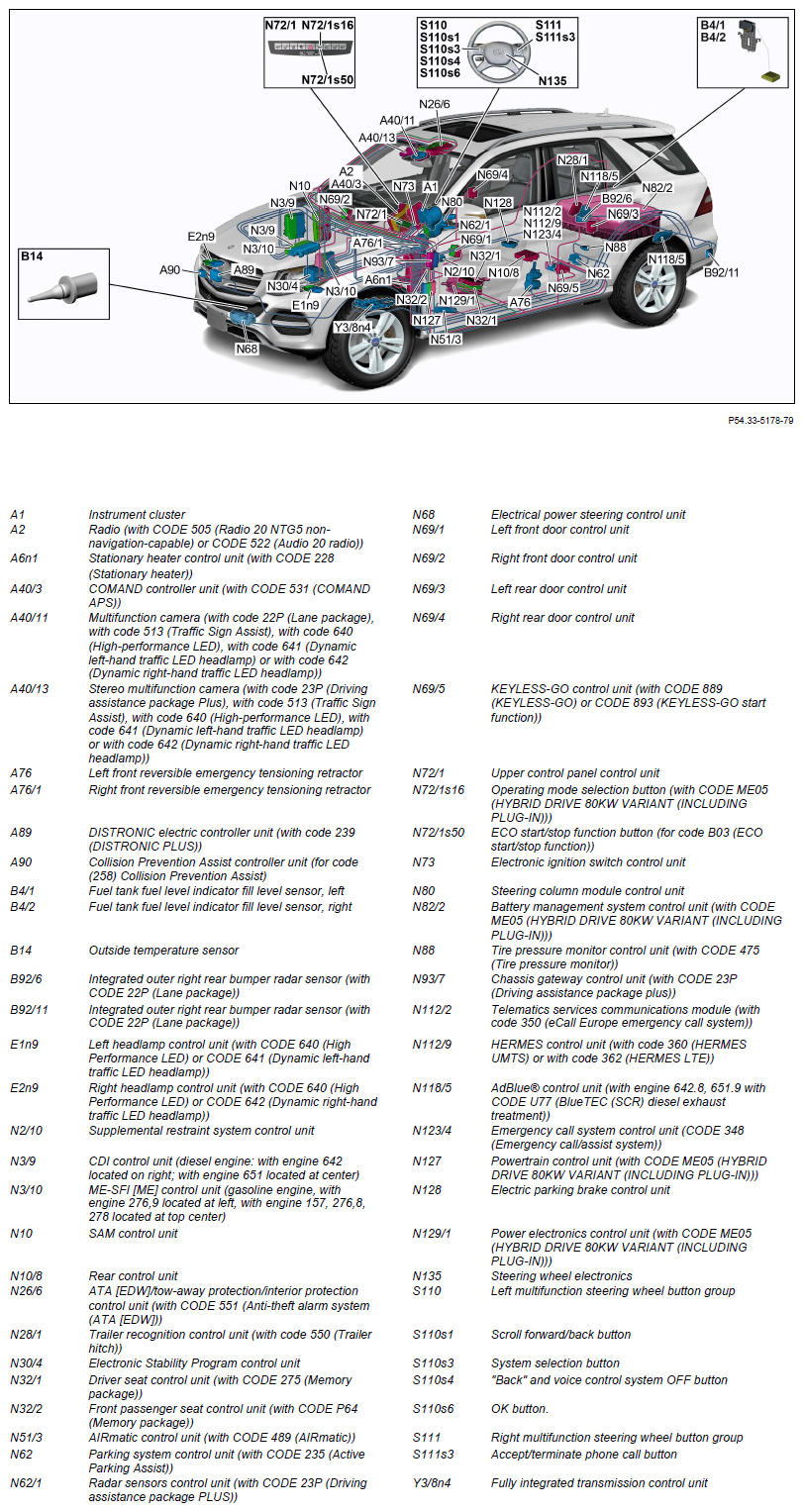

Shows model 166.0

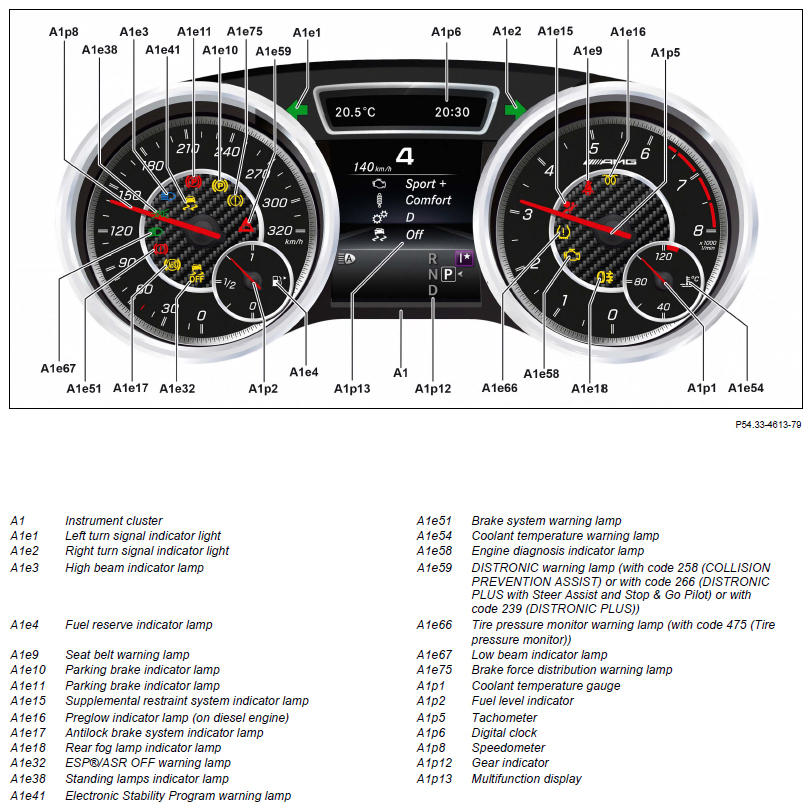

Shown except code ME05 (HYBRID DRIVE 80KW-VARIANT (INCLUDING PLUGIN)) and except model 166.064/074/075/874 and except model 292.374/375

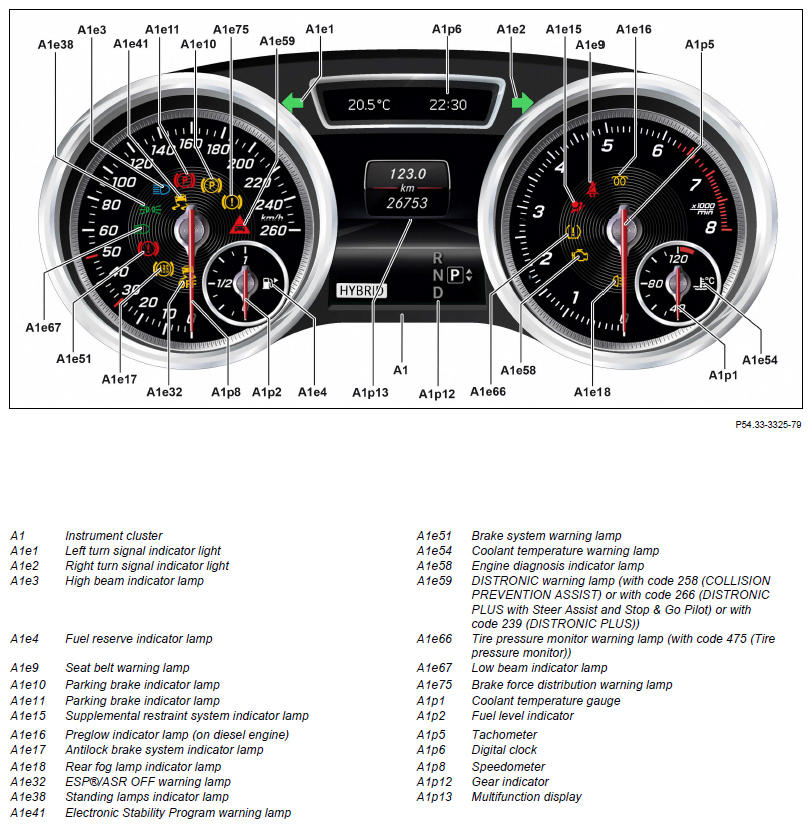

Shown with CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUG-IN))

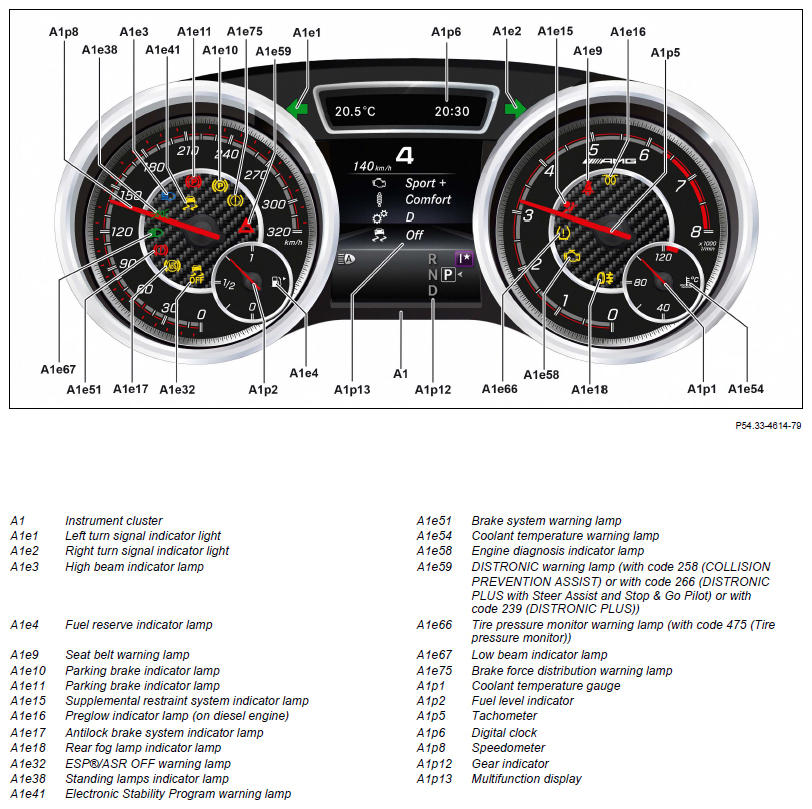

Shown on model 166.074/874 and model 292.374

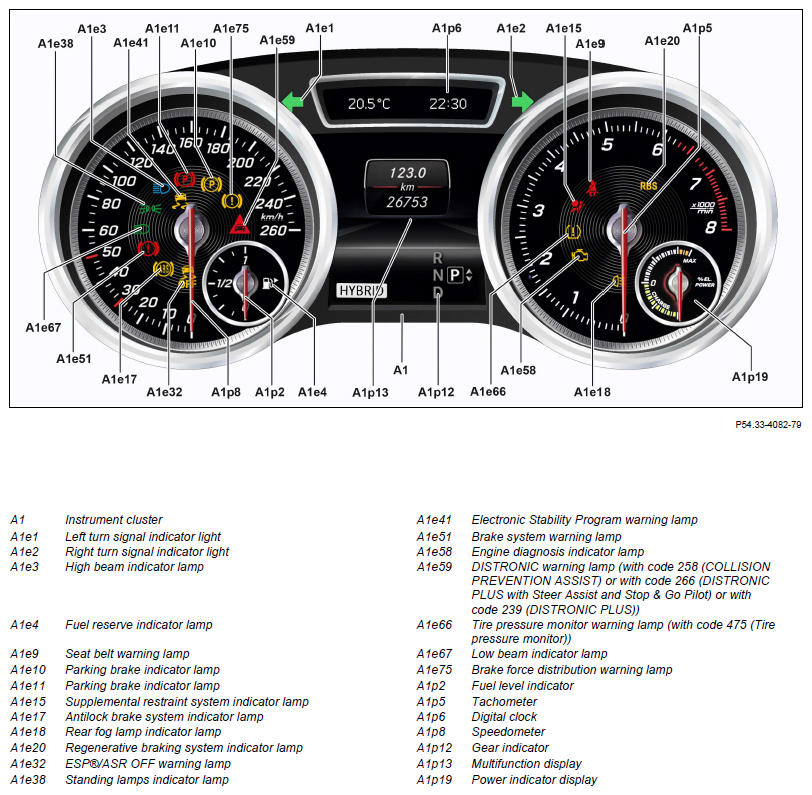

Shown on model 166.064/075 and model 292.375
The following components integrated in the instrument cluster are not shown:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
- Instrument illumination brightness control (A1r1)
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Component description for the radio | Model 166 as of model year 2016 with code 505 (Radio 20 NTG5, not navigation-enabled) Model 166 as of model year 2016 with code 522 (Audio 20 radio) Model 292 with code 505 (Radio 20 NTG5, not navigation-enabled) Model 292 with code 522 (Audio 20 radio) A2 |
GF82.60-P-3122GN | |
| Stationary heater control unit, component description | Model 166 as of model year 2016 with code 228 (Auxiliary heater) Model 292 with code 228 (Auxiliary heater) A6n1 |
GF83.70-P-4066GN | |
| Component description for COMAND® controller unit | Model 166 as of model year 2016 with code 531 (COMAND® APS) Model 292 with code 531 (COMAND® APS) A40/3 |
GF82.85-P-3136GN | |
| Component description for multifunction camera | Model 166 as of model year 2016 with code 22P (Lane tracking package) Model 166 as of model year 2016 with code 23P (Driving Assistance package) Model 166 as of model year 2016 with code 513 (Traffic Sign Assist) Model 166 as of model year 2016 with code 640 (High-performance LED) Model 166 as of model year 2016 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 166 as of model year 2016 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 292 with code 22P (Lane tracking package) Model 292 with code 23P (Driving Assistance package) Model 292 with code 513 (Traffic Sign Assist) Model 292 with code 640 (High-performance LED) Model 292 with code 641 (Dynamic LED headlamps, left hand traffic) Model 292 with code 642 (Dynamic LED headlamps, right-hand traffic) A40/11, A40/13 |
GF54.21-P-3300GN | |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020GN | |
| Component description for DISTRONIC electric controller unit | Model 166 as of model year 2016 with code 239 (DISTRONIC PLUS) Model 292 as of model year 2016 with code 239 (DISTRONIC PLUS) A89 |
GF30.30-P-3213GN | |
| COLLISION PREVENTION ASSIST controller unit, component description | Model 166 as of model year 2016 with code 258 (COLLISION PREVENTION ASSIST) Model 292 with code 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214GN | |
| Component description for bumper radar sensors | Model 166 as of model year 2016 with code 22P (Lane tracking package) Model 166 as of model year 2016 with code 23P (Driving Assistance package) Model 292 with code 22P (Lane tracking package) Model 292 with code 23P (Driving Assistance package) B92/6, B92/11 |
GF30.30-P-3302GN | |
| Headlamp control unit, component description | Model 166 as of model year 2016 with code 640 (High-performance LED) Model 166 as of model year 2016 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 166 as of model year 2016 with code 642 (Dynamic LED headlamps, right-hand traffic) Model 292 with code 640 (High-performance LED) Model 292 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 292 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n9, E2n9 |
GF82.10-P-2020GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for CDI control unit | Model 166 with engine 642.8 as of model year 2016 Model 292 with engine 642.8 N3/9 |
GF07.16-P-6000OGF | |
| Model 166 with engine 651.9 as of 6/1/15 as of model year 2016 N3/9 |
GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | Model 166 (except 166.063) with engine 276.8 as of model year 2016 Model 292 with engine 276.8 N3/10 |
GF07.61-P-6000MMX | |
| Model 166.063 with engine 276.8 as of model year 2016 N3/10 |
GF07.61-P-6000MMM | ||
| Model 166 with engine 276.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNG | ||
| Model 166 with engine 157.9, 278.9 as of model year 2016 Model 292 with engine 157.9, 278.9 N3/10 |
GF07.61-P-6000MMY | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GN | |
| ATA/tow-away protection/interior protection control unit, component description | Model 166 as of model year 2016 with code 551 (Anti-theft warning system) Model 292 with code 551 (Anti-theft warning system) N26/6 |
GF80.50-P-4131GN | |
| Component description for trailer recognition control unit | Model 166 as of model year 2016 with code 550 (Trailer coupling) Model 292 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GN | |
| Component description for Electronic Stability Program control unit | Model 166 (except 166.063) as of model year 2016 Model 292 N30/4 |
GF42.45-P-5119GN | |
| Component description for driver seat control unit | Model 166 as of model year 2016 with code 275 (Memory package) Model 292 with code 275 (Memory package) N32/1 Model 166 as of model year 2016 except code 275 (Memory package) |
GF91.29-P-5231GN | |
| Model 292 except code 275 (Memory package) N32/1 |
GF91.29-P-5231GNA | ||
| Component description for front passenger seat control unit | Model 166 as of model year 2016 with code P64 (Memory package) Model 292 with code P64 (Memory package) N32/2 |
GF91.29-P-5241GN | |
| Model 166 as of model year 2016 except code P64 (Memory package) Model 292 except code P64 (Memory package) N32/2 |
GF91.29-P-5241GNA | ||
| AIRMATIC control unit, component description | Model 166 as of model year 2016 with code 489 (AIRMATIC) Model 292 with code 489 (AIRMATIC) N51/3 |
GF32.22-P-5110GN | |
| Parking system control unit, component description | Model 166 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 292 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5004GN | |
| Component description for radar sensors control unit | Model 166 as of model year 2016 with code 23P (Driving Assistance package) Model 292 with code 23P (Driving Assistance package) N62/1 |
GF30.30-P-3301GN | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Component description for rear door control unit | N693, N694 | GF72.29-P-6021GN | |
| Component description for KEYLESS-GO control unit | Model 166 as of model year 2016 with code 889 (KEYLESS-GO) Model 166 as of model year 2016 with code 893 (KEYLESS-GO) Model 292 with code 889 (KEYLESS-GO) Model 292 with code 893 (KEYLESS-GO) N69/5 |
GF80.61-P-4204GN | |
| Upper control panel control unit, component description | N72/1, N72/s16, N72/1s50 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for battery management system control unit | Model 166.063 as of model year 2016 N82/2 |
GF54.10-P-3012GRH | |
| Component description for tire pressure monitor control unit | Model 166 as of model year 2016 with code 475 (Tire pressure monitoring system) Model 292 with code 475 (Tire pressure monitoring system) N88 |
GF40.15-P-5124GN | |
| Component description for chassis gateway control unit | Model 166 as of model year 2016 with code 23P (Driving Assistance package) Model 292 with code 23P (Driving Assistance package) N93/7 |
GF54.21-P-1010GN | |
| Telematics services communications module, component description | Model 166 as of model year 2016 up to model year 2017 with code 350 (E-Call emergency call system, Europe) Model 292 up to model year 2017 with code 350 (E-Call emergency call system, Europe) N112/2 |
GF82.85-P-0220GN | |
| HERMES control unit, component description | Model 166 as of model year 2016 with code 360 (HERMES UMTS) Model 166 as of model year 2016 with code 362 (HERMES LTE) Model 292 with code 360 (HERMES UMTS) Model 292 with code 362 (HERMES LTE) N112/9 |
GF82.85-P-0221GN | |
| Component description for exhaust aftertreatment control unit | Model 166 with engine 642.8 as of model year 2016 with code U77 (Diesel Emission control BLUETEC (SCR)) Model 292 with engine 642.8 with code U77 (Diesel Emission control BLUETEC (SCR)) N118/5 |
GF14.40-P-3030OGF | |
| Model 166 with engine 651.9 as of model year 2016 with code U77 (Diesel Emission control BLUETEC (SCR)) N118/5 |
GF14.40-P-3030OLF | ||
| Drivetrain control unit, component description | Model 166.063 as of model year 2016 N127 |
GF54.21-P-2141GN | |
| Electric parking brake control unit, component description | N128 | GF42.20-P-5005GN | |
| Component description for emergency call system control unit | Model 166 as of model year 2016 up to model year 2017 with code 348 (Emergency call/assistant system) Model 292 up to model year 2017 with code 348 (Emergency call/assistant system) N123/4 |
GF82.95-P-3212GNU | |
| Component description for power electronics control unit | Model 166.063 as of model year 2016 N129/1 |
GF08.20-P-1001GRH | |
| Component description for fully integrated transmission control unit | Model 166 with transmission 725.0 as of model year 2016 Y3/8n4 |
GF27.60-P-5165ANF | |
| Model 292 with transmission 725.0 Y3/8n4 |
GF27.60-P-5165ANJ | ||
| Model 166 with transmission 724.204 as of model year 2016 Y3/8n4 |
GF27.60-P-5165GRH | ||
| Table of contents for function description of instrument cluster (IC) | GF54.30-P-0997GN |
