Remove Outer Section Of B-Pillar - Ar63.20-P-1121-01GQX

Model 166.8, 292

The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

Courtesy of MERCEDES-BENZ USA

Shown on model 166.8

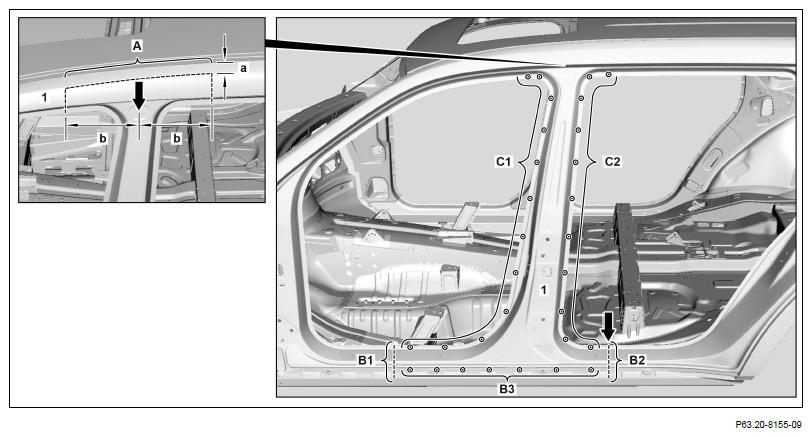

1. Scribe separating point on side wall paneling (1) and cut (areas A).

   Measure dimension (a) from edge of roof frame strut. Measure dimension (a) for separating point in area A from upper side wall cutout (arrow).

   Removal  : a = approx. 50 mm

   b = approx. 220 mm

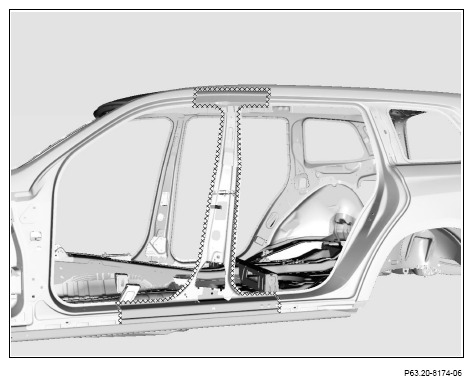

2. Scribe separating point on side wall paneling (1) and cut (areas B1 and B2).

   Separating point in area B2 is Y-marking (arrow).

   Determine separating point in area B1 according to degree of damage.

3. Cut separating point on side wall paneling (1) (areas A, B1 and B2).

   Do not make the cuts too deep.

   Otherwise the components below can be damaged and weakened.

4. Expose spot welds on side wall paneling (1) and cut out (areas B3, CI and C2).
5. Remove damaged side wall paneling (1).

   Courtesy of MERCEDES-BENZ USA

   Shown on model 166.8

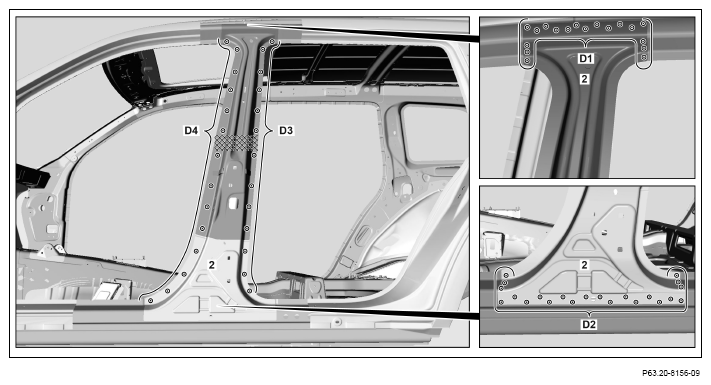

6. Expose spot welds on outer B-pillar (2) and cut out (areas D1, D2, D3 and D4).
7. Heat outer B-pillar (2) in crosshatched area.

   Cross-hatched area is bonded.

8. Remove damaged outer B-pillar (2).
9. Grind mating surfaces down to bare metal in the cross-hatched inner C-pillar sidewall.

   Sand down spot weld flanges to bare metal on both sides.

10. Remove shavings and drill chips.
11. Coat insides of spot welding flanges with zinc dust paint.

    Shown on model 166.8

    Courtesy of MERCEDES-BENZ USA
