Completely Install A And B-Pillar With Longitudinal Member - Ar63.20-P-1120-03GQX
MODEL 166.8
The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.
- Install inner front side wall (3) and side wall reinforcement (2) with portal bracket and fit.
Use spacers.
- Arrest inner front side wall (3).
- Remove side wall reinforcement (2) and portal bracket.

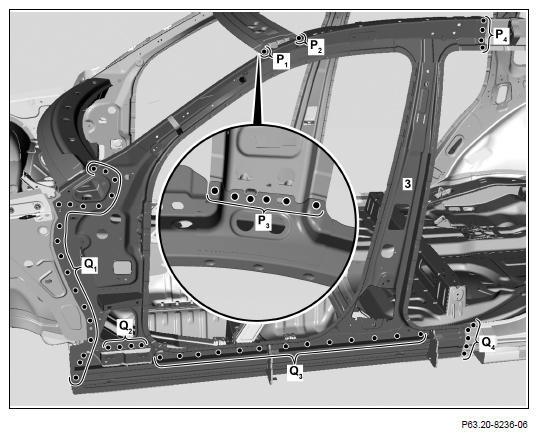

- Inner front side wall (3)
(areas P1 , P2 , P3 , P4 , Q1 , Q2 , Q3 and Q4 ).
- Coat weld joints which are later no longer accessible with zinc dust paint.
- Install side wall reinforcement (2) and fit with portal bracket.
- Arrest side wall reinforcement (2).
- Drill Ø 6.7 mm rivet holes in side wall reinforcement (2) (area S1 ).
- Remove side wall reinforcement (2) and portal bracket.
- Deburr rivet holes on side wall reinforcement (2) on both sides.
- Remove drilling chips.
- Coat rivet holes with zinc dust paint.

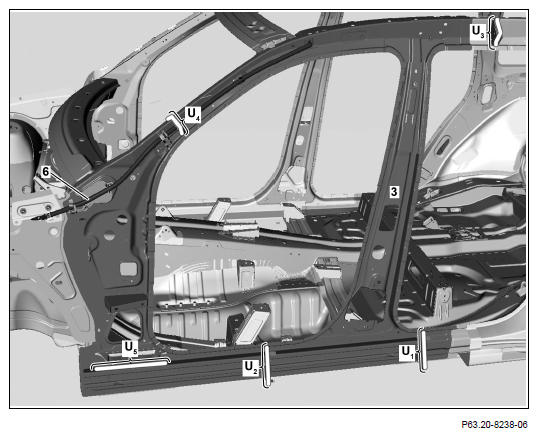

- Remove foam part from old part and arrest on inner front side wall (3) with sealant (area U4 ).
- Apply sealant to foam parts (areas U3
and U4
).
Always replace damaged foam parts which can no longer be used. New foam parts are available only from the responsible Daimler AG departments (area U3 ).
- Install side wall reinforcement (2) with portal bracket, fit and fix in place.

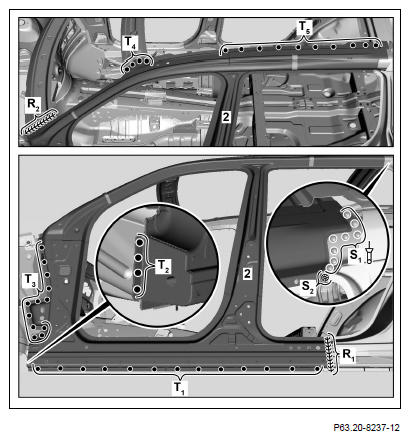

- Rivet side wall reinforcement (2) with Ø 6.5x12.5 blind rivets (area S1 ).
- Side wall reinforcement (2)
(areas R1 and R2 ).
- Side wall reinforcement (2)
(areas T1 , T2 , T3 , T4 and T5 ).
- Side wall reinforcement (2)
(area S2 ).
- Grind inert gas welds down flat on side wall reinforcement (2) (areas R1
and S2
).
Grind down flat on contact surfaces on paneling and beaded area only.
- Install A and B-pillar paneling (1), roof frame paneling section (1.1) and longitudinal member cover section (1.2) with portal bracket, fit and fix in place.
- Drill Ø 6.7 mm rivet holes in A and B-pillar paneling (1) (areas X1 and X2 ).
- Remove A and B-pillar paneling (1) and portal bracket.
- Deburr rivet holes on A and B-pillar paneling (1) on both sides.
- Remove drilling chips.
- Coat rivet holes with zinc dust paint.
- Install A and B-pillar paneling (1), fit and fix in place.

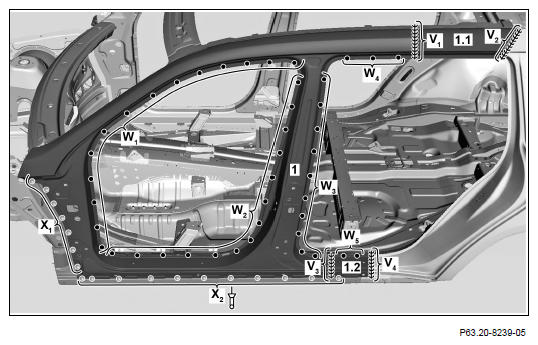

- A and B-pillar paneling (1), roof frame paneling section (1.1) and longitudinal member cover section (1.2)
(areas V1 , V2 , V3 and V4 ).
- Rivet A and B-pillar paneling (1) with Polygrip Ø 6.4X14 countersunk head rivet (areas X1 and X2 ).
- A and B-pillar paneling (1)
(areas W1 , W2 , W3 , W4 and W5 ).
- Grind inert gas welds down flat on A and B-pillar paneling (1) (areas V1
, V2
, V3
and V4
).
- A and B-pillar paneling (1)
(areas Y1 and Y2 ).

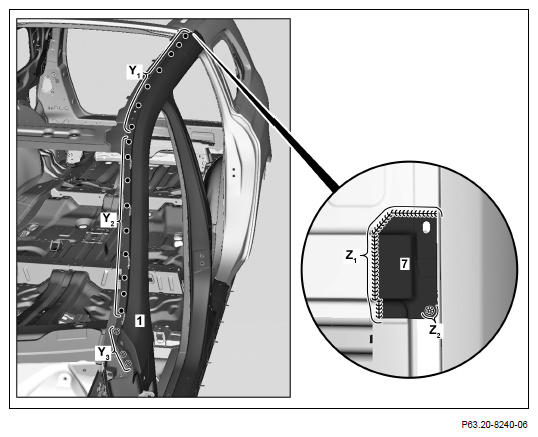

- Drill Ø 6 mm holes for plug welding with drill bit (area Y3 ).
- A and B-pillar paneling (1)
(area Y3 ).
- Install roof paneling section (7), fit and fix in place.
- Roof paneling section (7)
(area Z1 ).
- Roof paneling section (7)
(area Z2 ).
- Grind inert gas welds down flat on A and B-pillar paneling (1) and roof paneling section (7).
Grind down flat on contact surfaces on paneling and beaded area only.
- Remove shavings and drill chips.
- Grind inert gas welds down flat on A and B-pillar paneling (1) (areas Y3 , Z1 and Z2 ).
- Solder surfaces on A and B-pillar paneling (1) with body solder and smooth.
