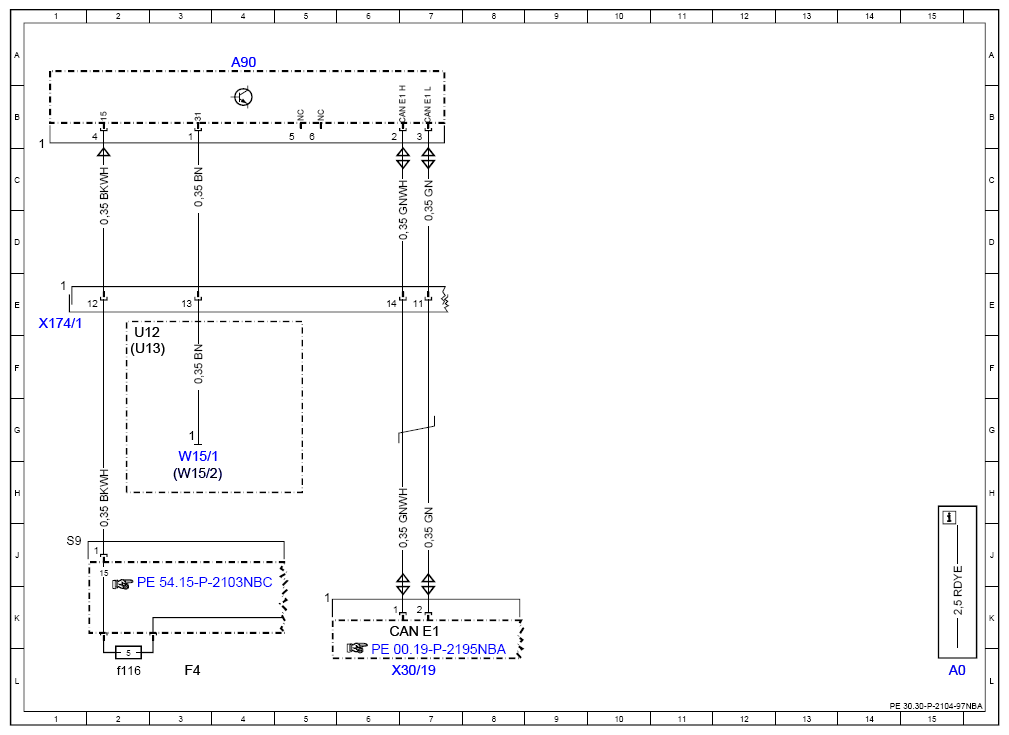

Wiring Diagram For COLLISION PREVENTION ASSIST Control Unit - PE30.30-P-2104-97NBA
MODEL 166 as of Model Year 2016
with CODE 258 (COLLISION PREVENTION ASSIST)
Control unit A90
MODEL 292
with CODE 258 (COLLISION PREVENTION ASSIST)
Control unit A90
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 4A |
| CAN E1 | Chassis CAN 1 | 7K |
| F4 | Rear fuse box | 3L |
| F4f116 | Fuse 116 | 2L |
| U12 | Valid for left-hand drive vehicles | 2F |
| U13 | Valid for right-hand drive vehicles | 2F |
| W15/1 | Right footwell ground point | 3H |
| W15/2 | Left footwell ground point | 3H |
| X174/1 | Vehicle interior/front bumper electrical connector | 1E |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 7L |
