Remove/Install Rear Air Vent - AR83.10-P-4800GQ

Model 166

Model 292

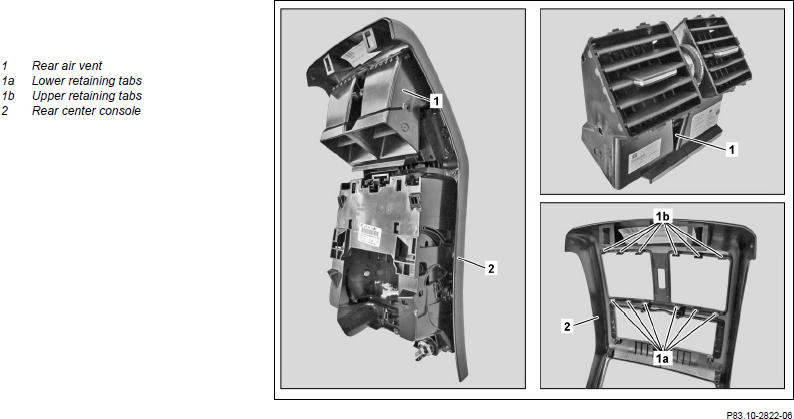

Fig 1: Rear Air Vent Components Location - Model 166

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear center console (2)		AR68.20-P-2020GQ
2	Unclip lower retaining tabs (1a)	Lower retaining tabs (1a) must be carefully bent downwards. Otherwise they can break off.
		Long wedge	Fig 2
3	Unclip upper retaining tabs (1b)	Upper retaining tabs (1b) must be carefully bent upwards. Otherwise they can break off.
		Long wedge	Fig 2
4	Remove rear Air vent (1)	The rear Air vent (1) must be positioned first at the upper retaining tabs (1b) Ensure correct seating of rear Air vent (1) at center console (2) at rear.
5	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
