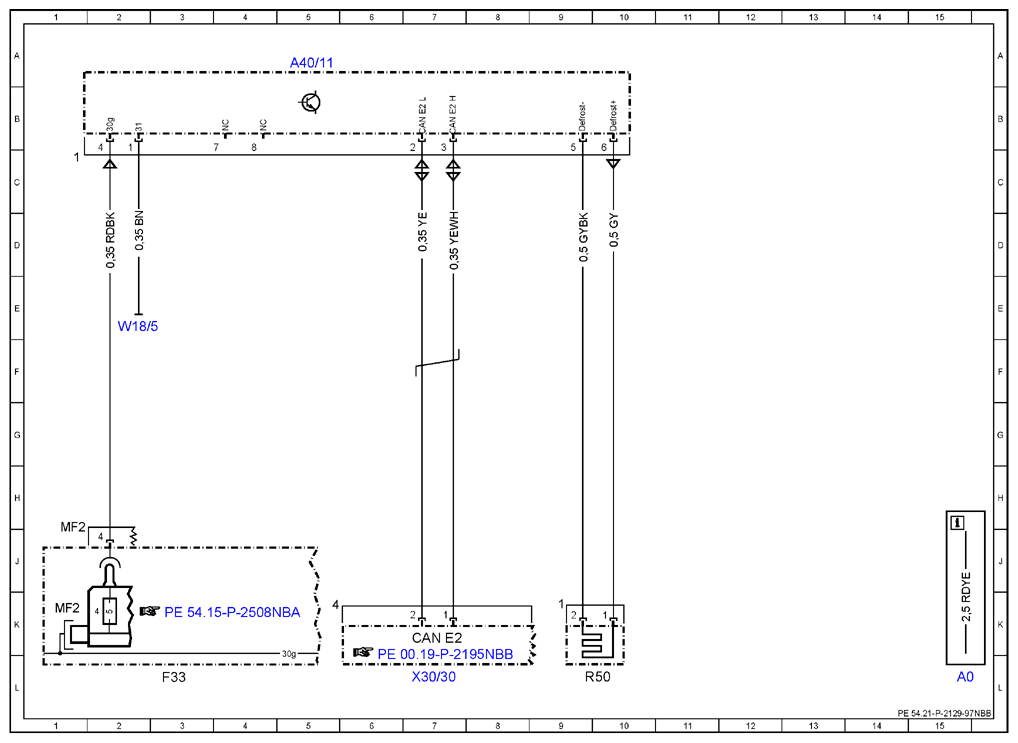

Wiring Diagram For Multifunction Camera - PE54.21-P-2129-97NBB
Model 166
as of model year 2016
with code 22P (Lane tracking package)
with code 640 (High-performance LED)
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code 642 (LED Intelligent Light System)
except code 23P (Driving Assistance package)
Multifunction camera A40/11
Model 292
with code 22P (Lane tracking package)
with code 640 (High-performance LED)
with code 641 (Dynamic LED headlamps, left-hand traffic)
with code 642 (Dynamic LED headlamps, right-hand traffic)
except code 23P (Driving Assistance package)
Multifunction camera A40/11
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 15L |
| A40/11 | Multifunction camera | 5A |
| CAN E2 | Chassis CAN 2 | 7K |
| F33 | Battery compartment prefuse box | 3L |
| F33MF2 | Multiple fuse 2 | 1K |
| R50 | Auxiliary heater heating element | 9L |
| W18/5 | Roof ground point | 2E |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 7L |
