Seam Sealing Following Repair, Front End Damage - Ar97.10-P-4000-01GQ

Model 166, 292

1. Seal connecting flanges in repaired areas with body sealant.

   Observe standard sealing. Seal only primed body parts. Install plastic stoppers and grommets with sealant.

2. Seal spot welds and rivets in repaired area with seam sealant material.

   Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant. It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface.

3. We differentiate between smoothing/wiping off (A) and sealing/spreading (B) when sealing joints.

   Courtesy of MERCEDES-BENZ USA

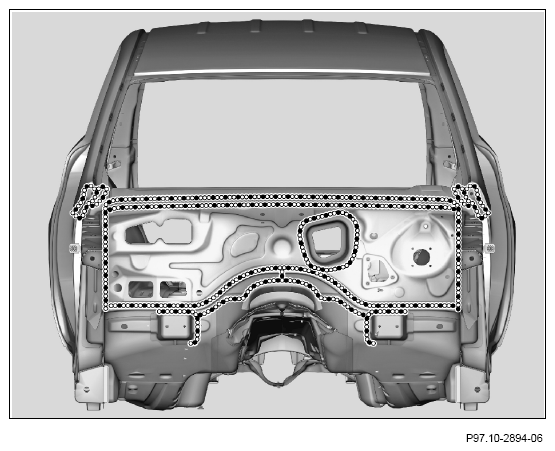

   Shown on outer firewall and crossmember on firewall on model 166

   Courtesy of MERCEDES-BENZ USA

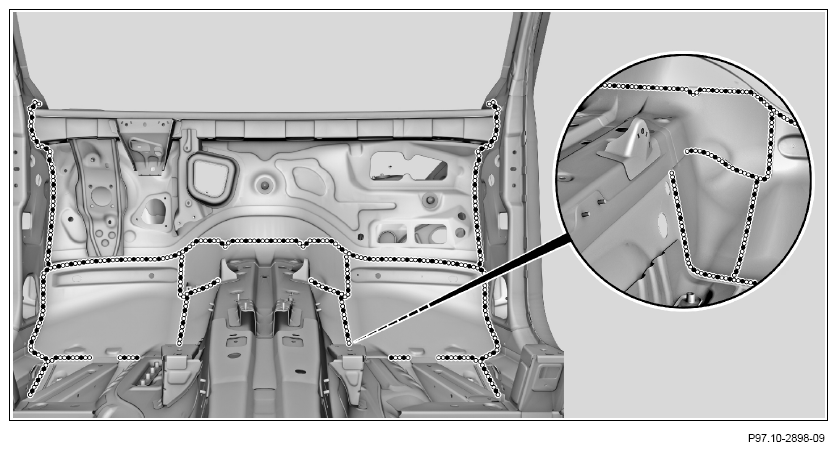

   Shown on inner firewall on model 166

   Courtesy of MERCEDES-BENZ USA

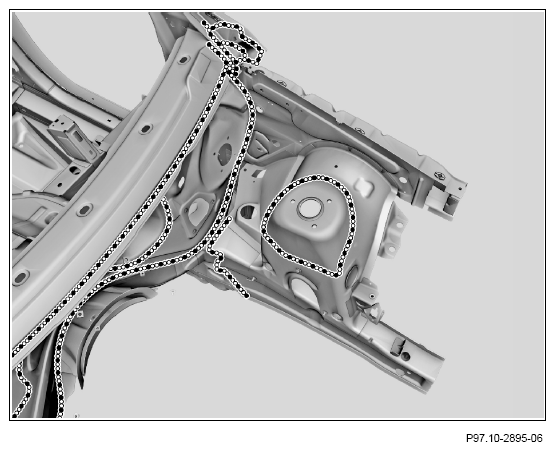

   Shown on A-pillar, longitudinal member and outer left front wheel well on model 166

   Courtesy of MERCEDES-BENZ USA

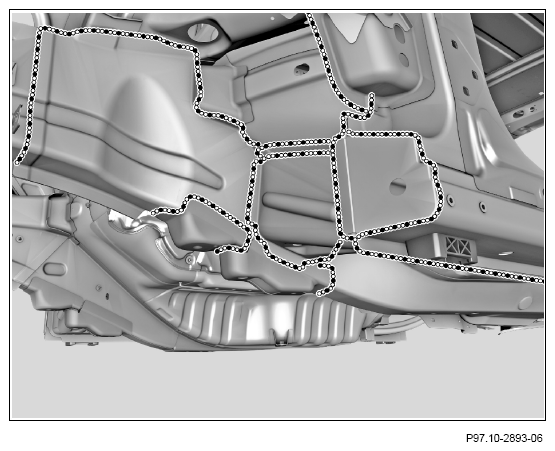

   Shown on longitudinal member and inner left front wheel well on model 166
