Cavity Preservation Following Repair Work - Ar97.20-P-1500GQ
Model 166, 292

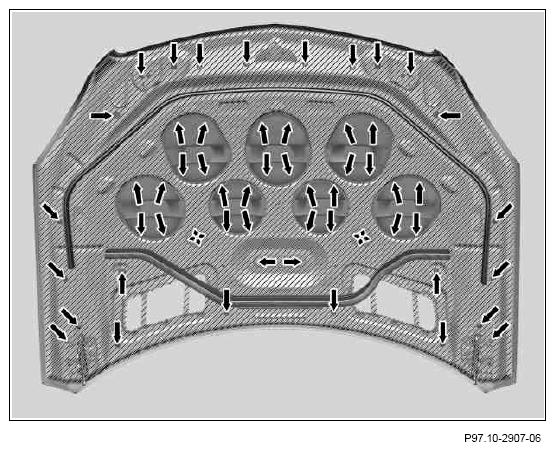

Shown on engine hood of model 166

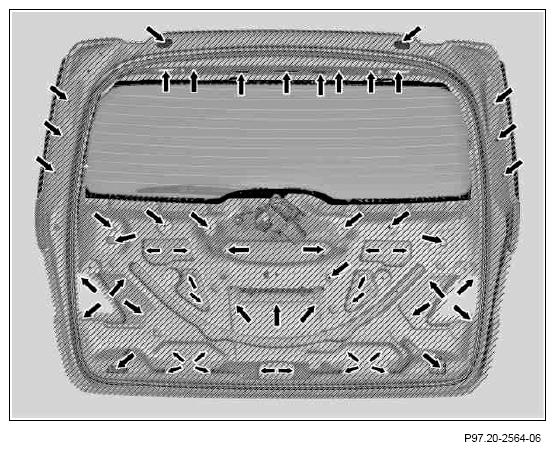

Shown on liftgate of model 166

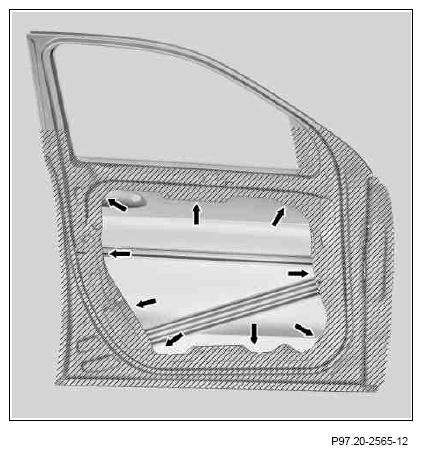

Shown on front door of model 166

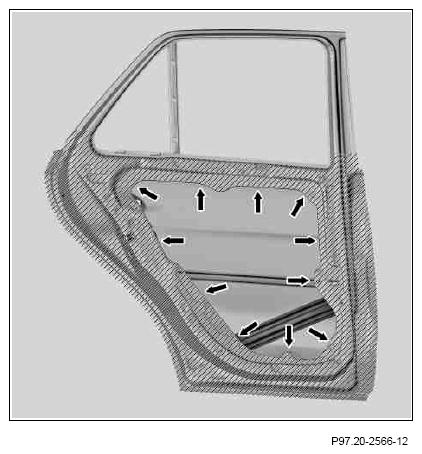

Shown on rear door of model 166

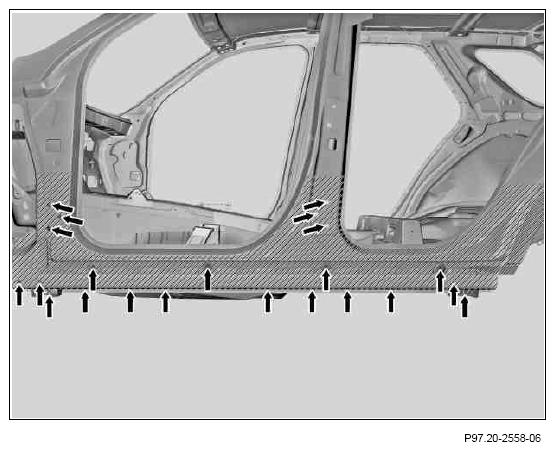

Shown on outer longitudinal member on model 166
Shown on inner longitudinal member on model 166

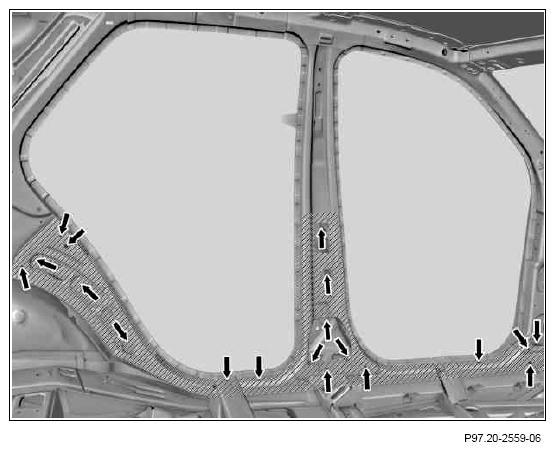

Shown on A, B, C, D-pillar and inner roof frame on model 166

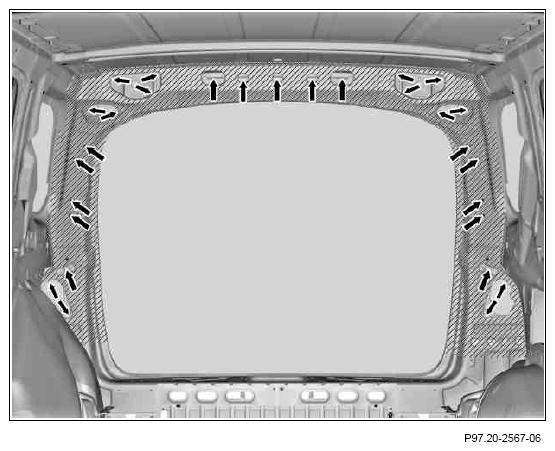

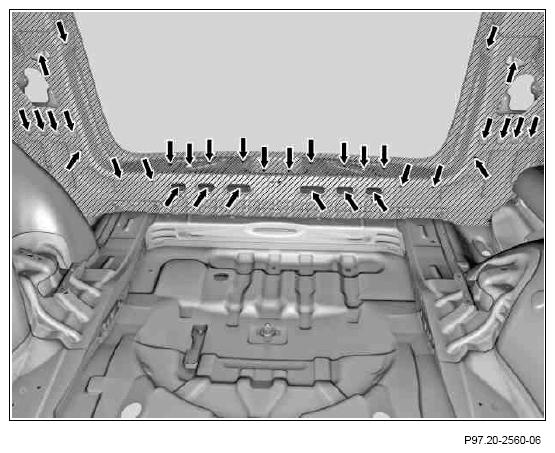

Shown on rear roof frame and D-pillars on model 166

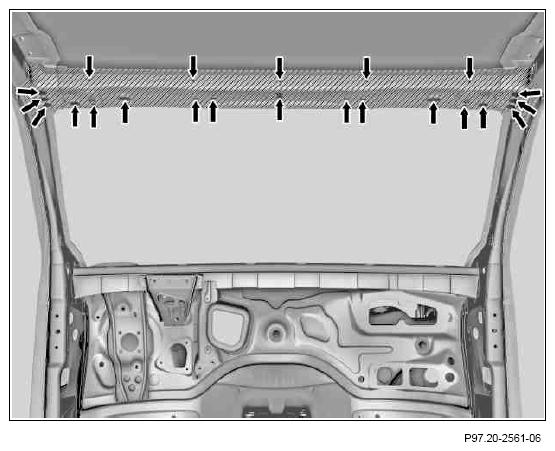

Shown on front roof frame on model 166

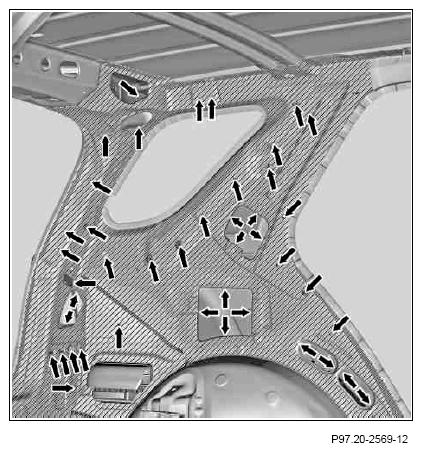

Shown on inner side wall on model 166

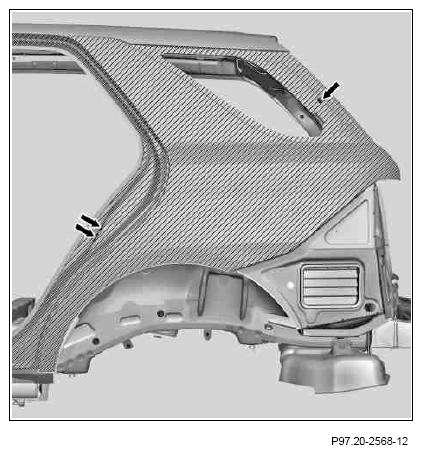

Shown on outer side wall on model 166

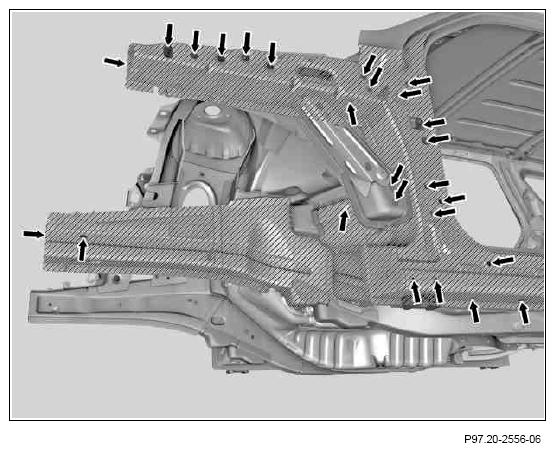

Shown on outer front longitudinal member and lower A-pillar on model 166

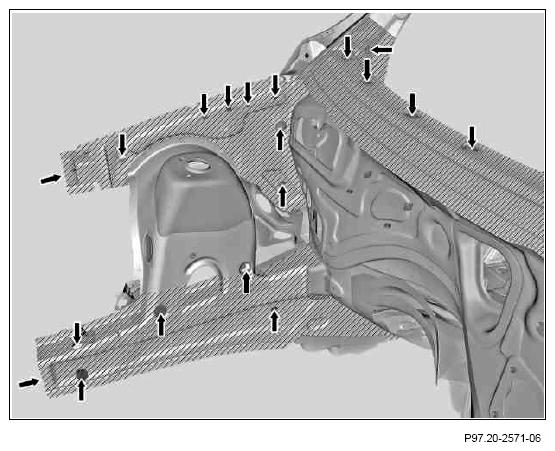

Shown on inner front longitudinal member and upper firewall on model 166

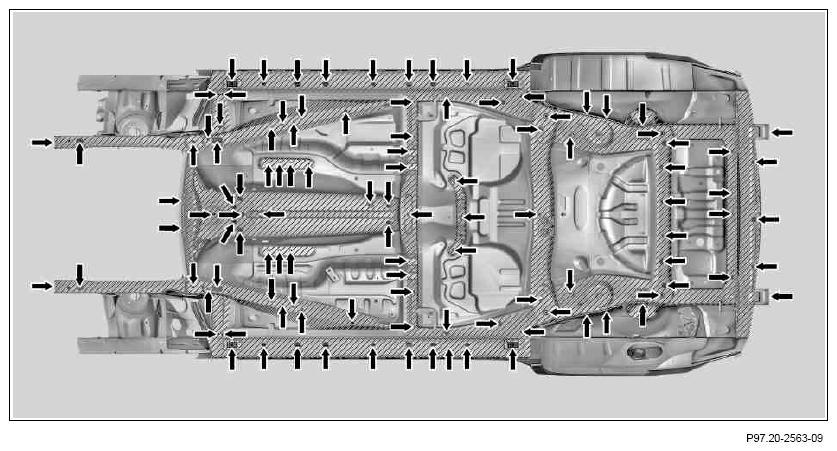

Shown on undercarriage (entire) on model 166
Shown on inner rear end assembly on model 166

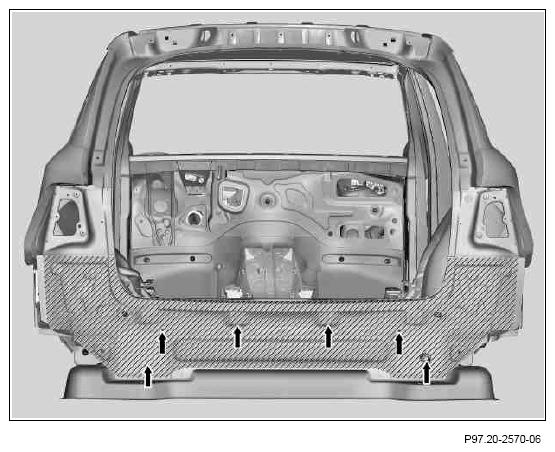

Shown on outer rear end assembly on model 166

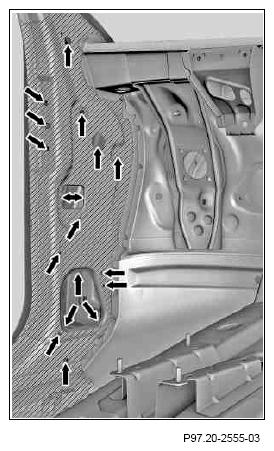

Shown on inner A-pillar on model 166
| Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents | Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection. | AS97.00-Z-0001-01A . | |
| Topical note | Notes on cavity preservation | AH97.20-P-0001-01B . | |
| Apply preservation agent | |||
| 1 | Perform cavity preservation after repair in processed area and replace detachable body parts | ||
| Model 166 | AP97.20-P-0640-01A . | ||
| Cavity preservation (free of solvents), 1 liter | *BR00.45-Z-1003-05A . | ||
| 2 | Remove cavity sealant from drain holes |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1003-05A | Cavity preservation (free of solvents), 1 liter | A 000 986 72 70 10 |
