Separate Front Roof Frame - Ar65.20-P-1006-02GQ

MODEL 166

Illustrated on model 166.0

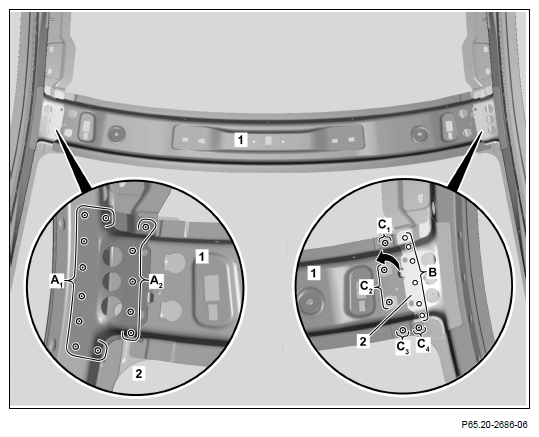

1. Expose spot welds on front roof frame (1) and left/right inner front reinforcement (2) and cut out (areas A1, A2, C₁ , C₂ , C₃ and C₄ ).

   Cut out spot welds on front roof frame (1) through two sheet metal thicknesses (areas C₁ and C₂ ). Remove only left inner front reinforcement (2).

2. Remove left inner front reinforcement (2).
3. Drill Ø 6 mm spot welds in front roof frame (1) (area B).
4. Bend open sheet metal lug (arrow).

   Courtesy of MERCEDES-BENZ USA

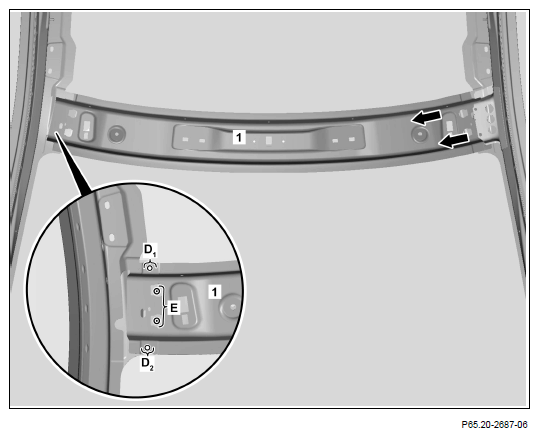

5. Expose spot welds on front roof frame (1) and cut out (area E).
6. Drill Ø 6 mm spot welds in front roof frame (1) (areas D₁ and D₂ ).
7. Remove damaged front roof frame (1) in direction of arrow.

   Courtesy of MERCEDES-BENZ USA

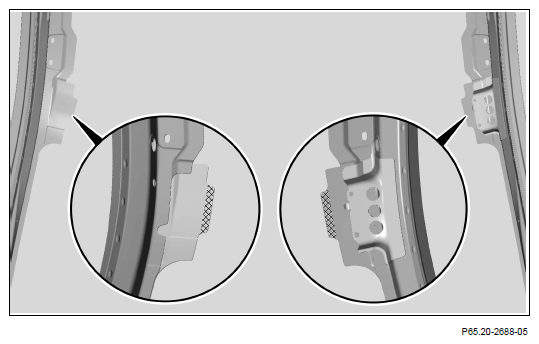

8. Grind mating surfaces down to bare metal in the cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

9. Remove shavings and drill chips.
10. Coat insides of spot weld flanges with zinc dust paint.
