Separate Center Roof Paneling - Ar65.10-P-1000-02GQX

MODEL 166

Shown with code (414) Electric glass tilting/sliding roof

Courtesy of MERCEDES-BENZ USA

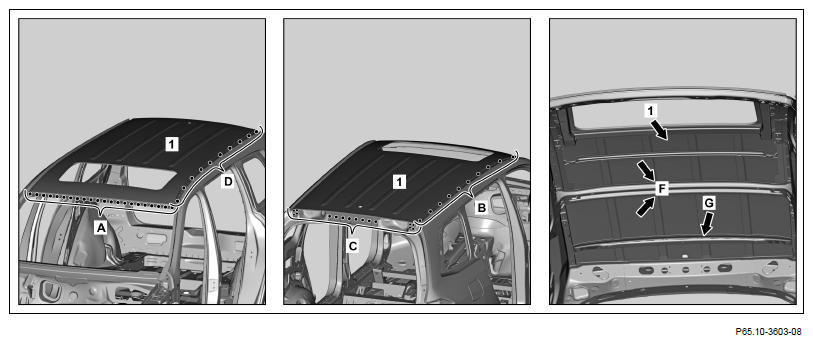

1. Expose spot welds in areas A to D and cut out.
2. Separate center roof paneling (1) with cutting blade in areas F and G (arrows) from roof frames.
3. Remove center roof paneling (1).
