Removing Rear Section Of Roof Paneling - Ar65.10-P-5760-01GQX

MODEL 166.8

1. Insert spacer blocks on and damaged side of roof duct between center roof paneling (1) and side roof paneling and adjust dimension.

   When installing the rear roof paneling (1) can be fitted with the adjusted spacer blocks.

2. Mark positions on vehicle and dimensions on spacer blocks.
3. Expose spot welds on rear roof paneling (1) and drill with Ø 5 mm BTR bit (areas B and D).

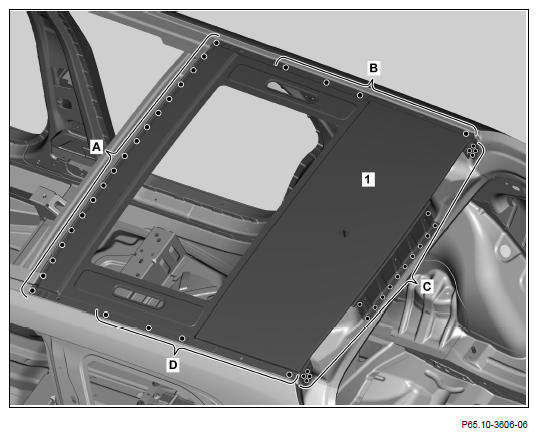

4. Expose spot welds on rear roof paneling (1) (areas A and C).
5. Cut out spot welds on rear roof paneling (1) (areas A, B, C and D).

   Courtesy of MERCEDES-BENZ USA

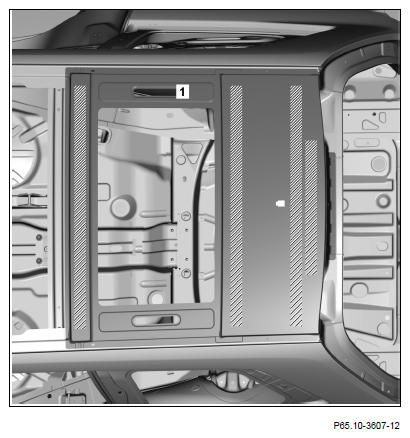

6. Heat rear roof paneling (1) in crosshatched areas.

   Cross-hatched areas are bonded.

7. Remove damaged rear roof paneling (1).

   Courtesy of MERCEDES-BENZ USA

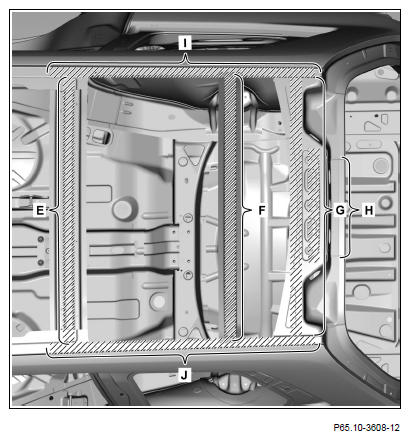

8. Grind mating surfaces down to bare metal in crosshatched areas (E, F, G, H, I and J).

   Sand down spot weld flanges to bare metal on both sides.

9. Remove shavings and drill chips.
10. Coat insides of spot weld flanges with zinc dust paint.

    Do not coat bonding surfaces with zinc dust paint (areas E, F and G).

    Otherwise adhesion problems may occur.

    Observe pretreatment of bonding surfaces.

    Courtesy of MERCEDES-BENZ USA
