Preparing Rear Part Of Roof Paneling For Installation - Ar65.10-P-5760-02GQX

MODEL 166.8

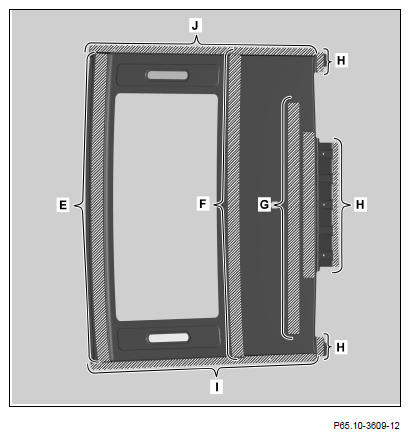

1. Grind mating surfaces on rear roof paneling down to bare metal in crosshatched areas (E, F, G, H, I and J).

   Sand down spot weld flanges to bare metal on both sides.

2. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
