Prepare Center Roof Paneling For Installation - Ar65.10-P-1000-03GZ

Model 164.1

except code 414 (Sliding sunroof)

Model 166

except code 414 (Sliding sunroof)

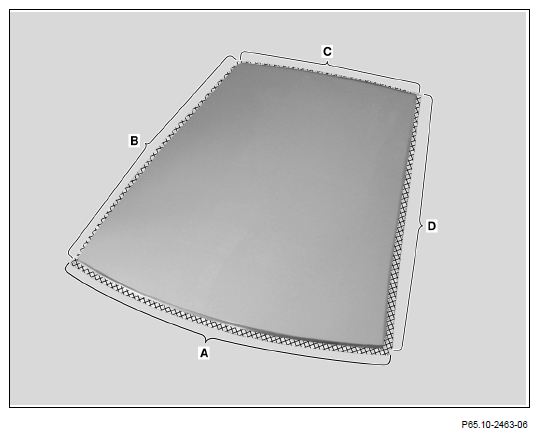

1. Grind mating surfaces down to bare metal in crosshatched areas A to D.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove shavings.
3. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
