Prepare Center Roof Paneling For Installation - Ar65.10-P-1000-03GY

Model 164.1

with code 414 (Sliding sunroof)

Model 166

with code 414 (Sliding sunroof)

Shown on model 164.1

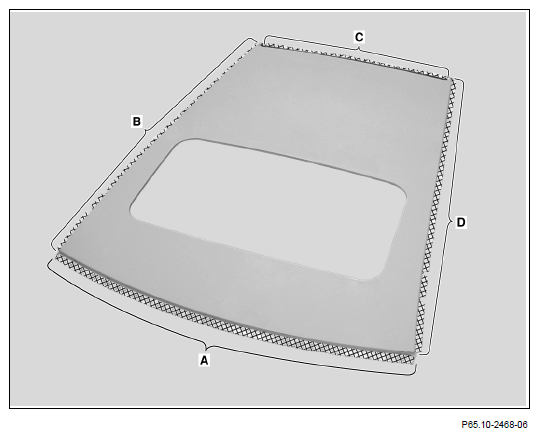

1. Grind mating surfaces down to bare metal in crosshatched areas A to D.

   Sand down spot weld flanges to bare metal on both sides.

   Courtesy of MERCEDES-BENZ USA

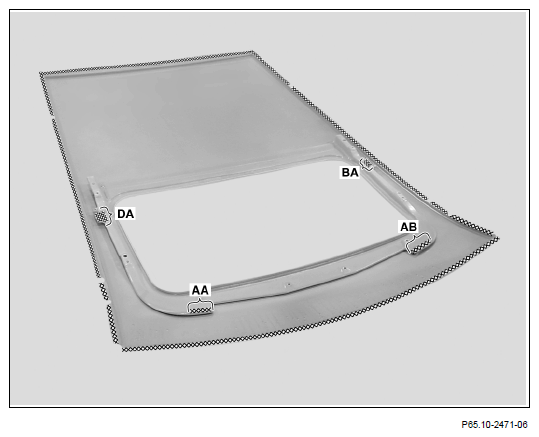

2. Grind mating surfaces down to bare metal in crosshatched areas AA, AB, BA and DA.

   Only on model 164.1

3. Remove shavings.
4. Coat insides of spot weld flanges with zinc dust paint.

   Courtesy of MERCEDES-BENZ USA
