Install Front Roof Frame - Ar65.20-P-1006-05GQ

MODEL 166

Illustrated on model 166.0

Courtesy of MERCEDES-BENZ USA

1. Install front roof frame (1) and inner front reinforcement links (2), fit and fix in place.

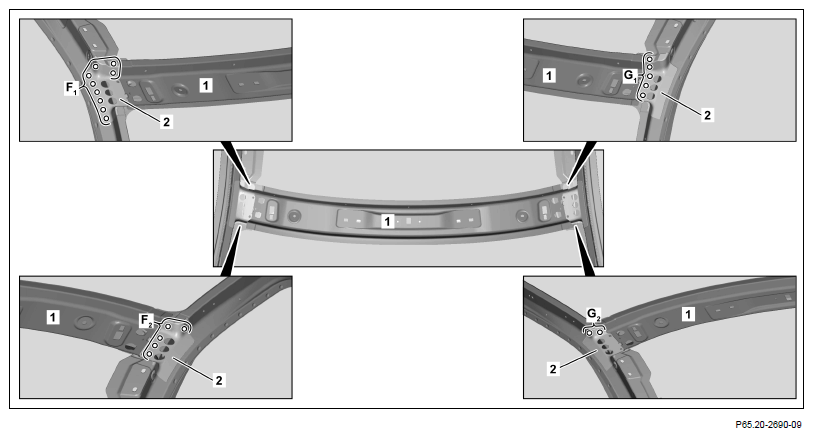

2. Drill Ø 6.7 mm rivet holes on front roof frame (1) and left/right inner front reinforcement (2) (areas F₁ , F₂ , G₁ and G₂ ).
3. Remove front roof frame (1) and left inner front reinforcement (2).
4. Deburr rivet holes on front roof frame (1) and left/right inner front reinforcement (2) on both sides.

   Courtesy of MERCEDES-BENZ USA

5. Install front roof frame (1) and inner front reinforcement links (2), fit and fix in place.
6. Rivet front roof frame (1) and left/right inner front reinforcement (2) with Ø 6.5X14.5 blind rivets (areas H 2, I₂ , I₃ , J₁ and K₂ ).
7. Rivet front roof frame (1) and left/right inner front reinforcement (2) with Ø 6.5X 12.5 blind rivets (areas H1, H3, I1, J2 and K1).

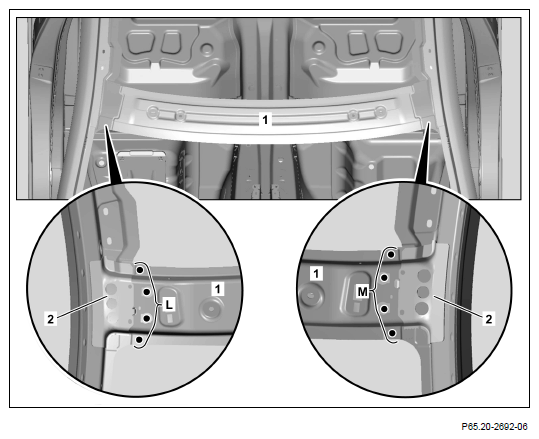

8. Front roof frame (1) and left/right inner front reinforcement (2) (areas L and M).
9. Clean welds on front roof frame (1) and left/right inner front reinforcement (2).
10. Remove shavings.
